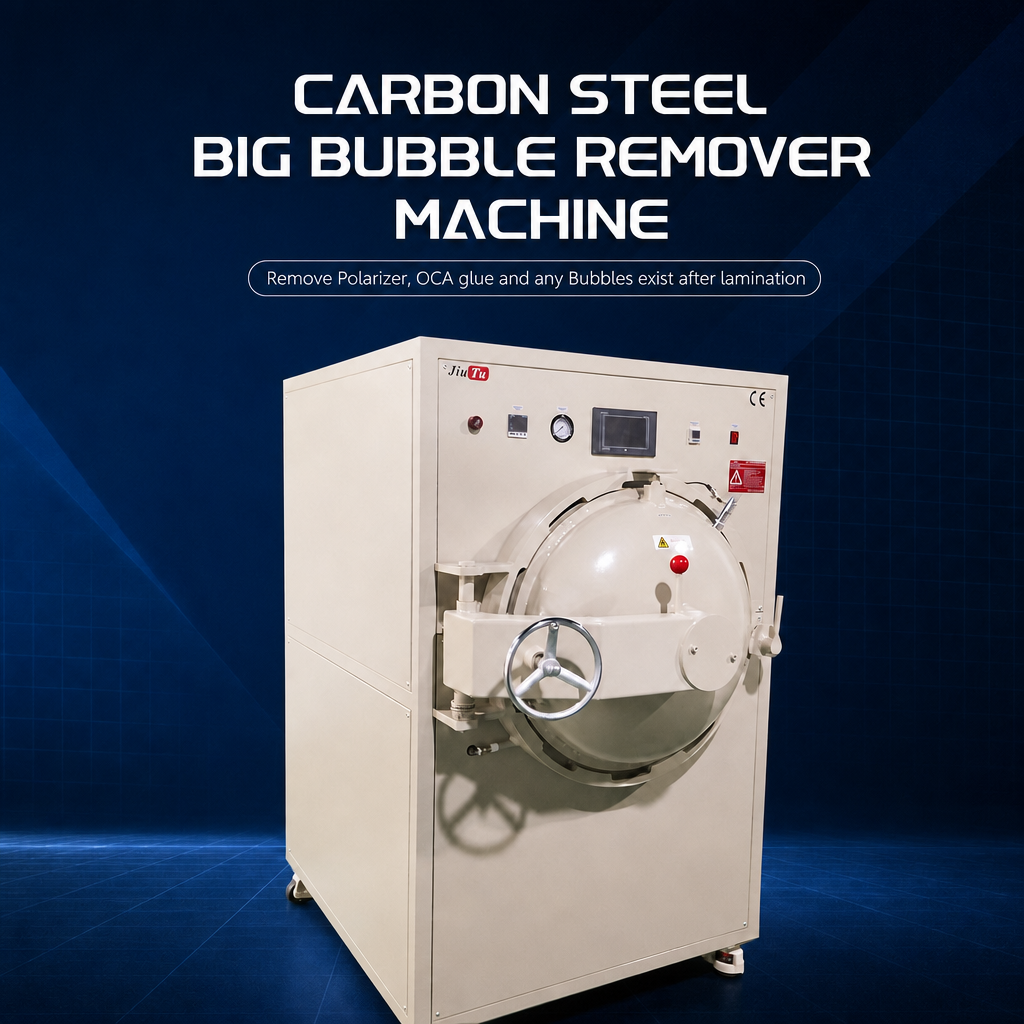

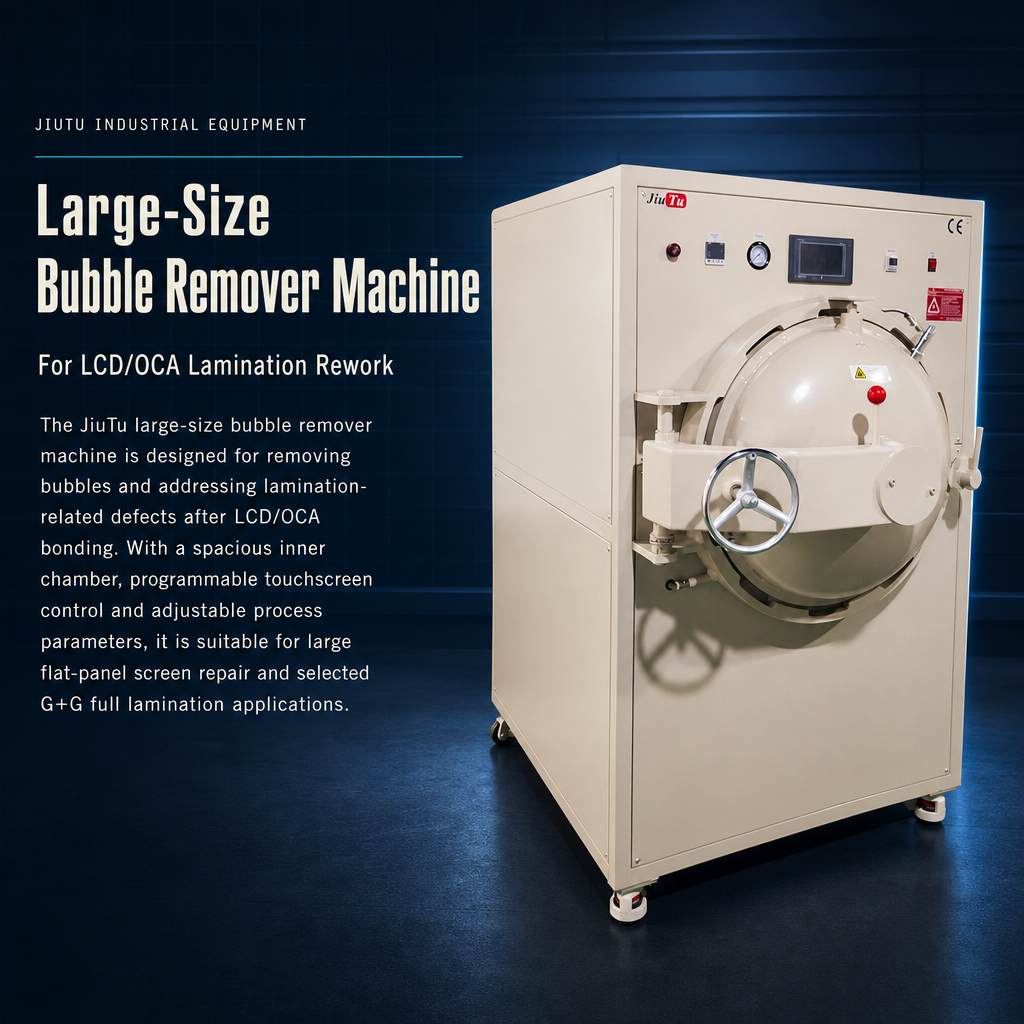

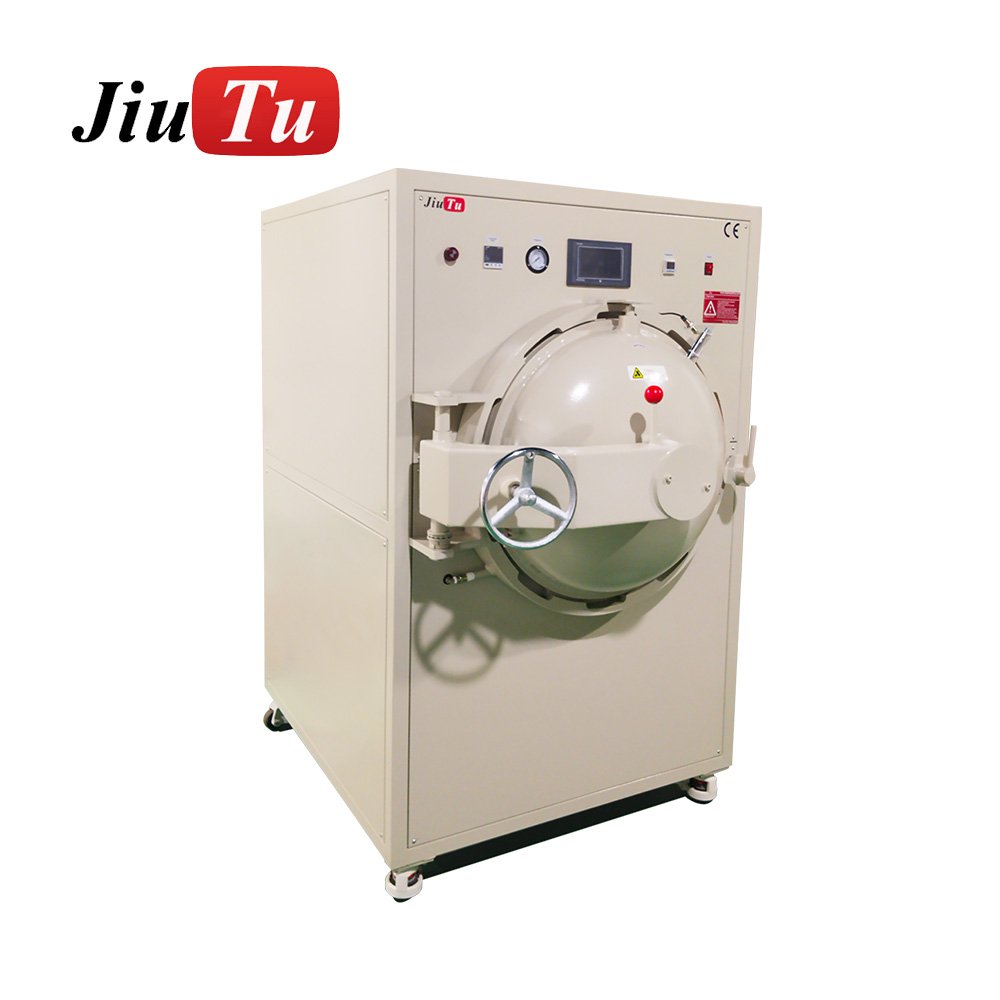

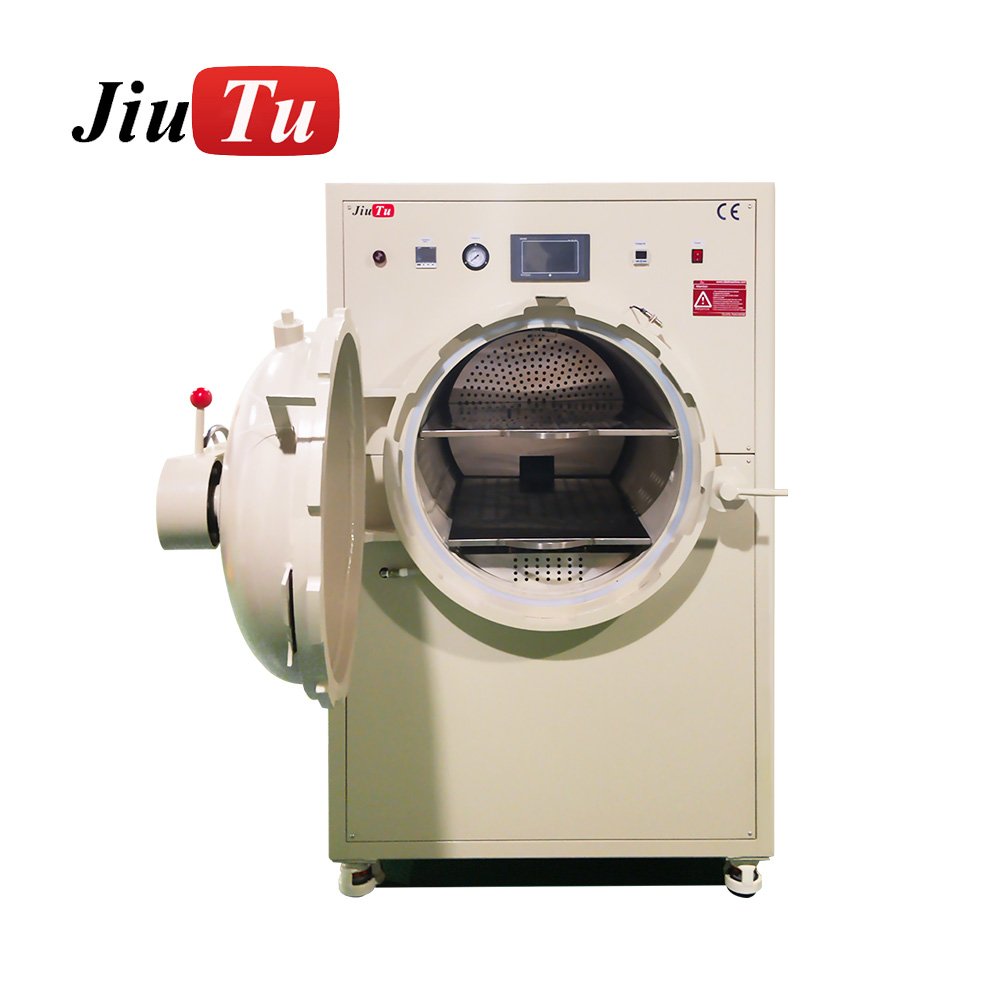

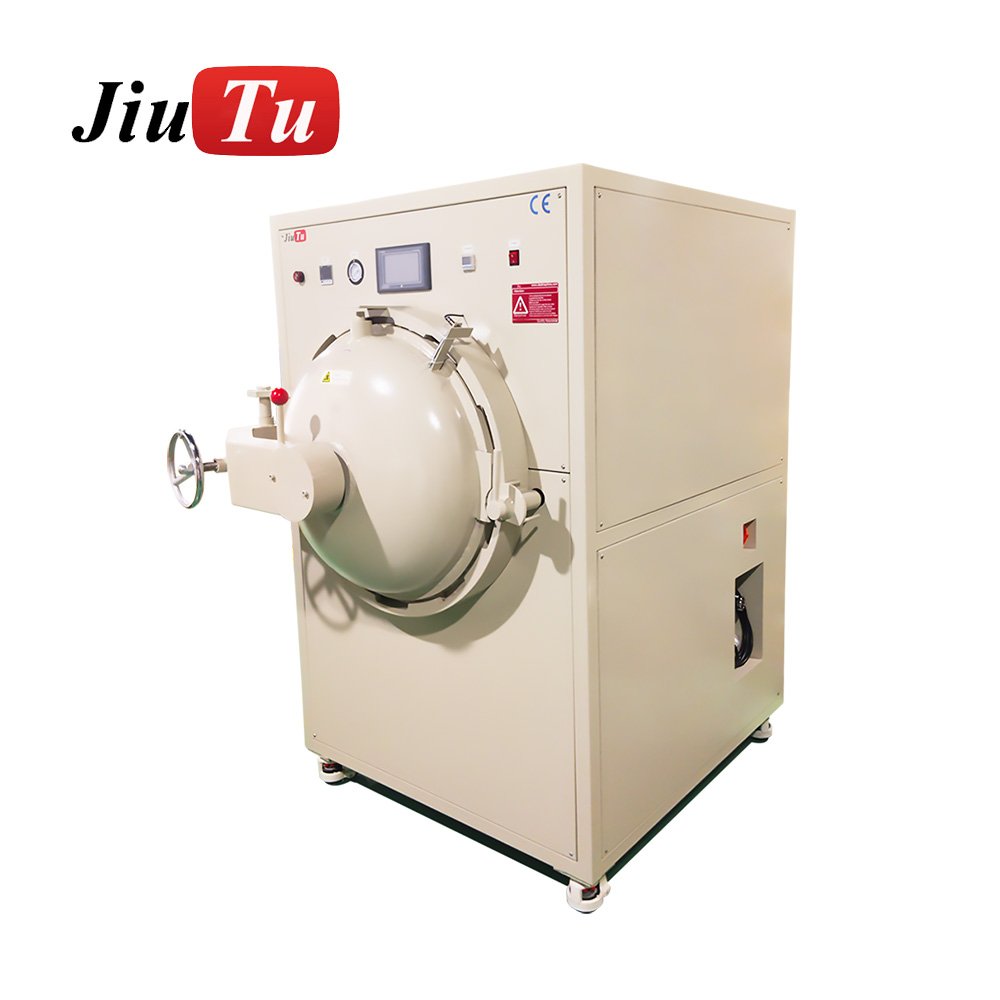

600×900mm Carbon Steel Bubble Remover Machine

A Robust, Cost-Effective Autoclave for Professional Screen Repair and Production Lines

Not every production environment requires a full stainless steel interior. For operations where the priority is a dependable, large-chamber debubbling autoclave at a more accessible price point — with the same chamber dimensions and the same PLC-controlled process — the carbon steel 600×900 is a practical choice.

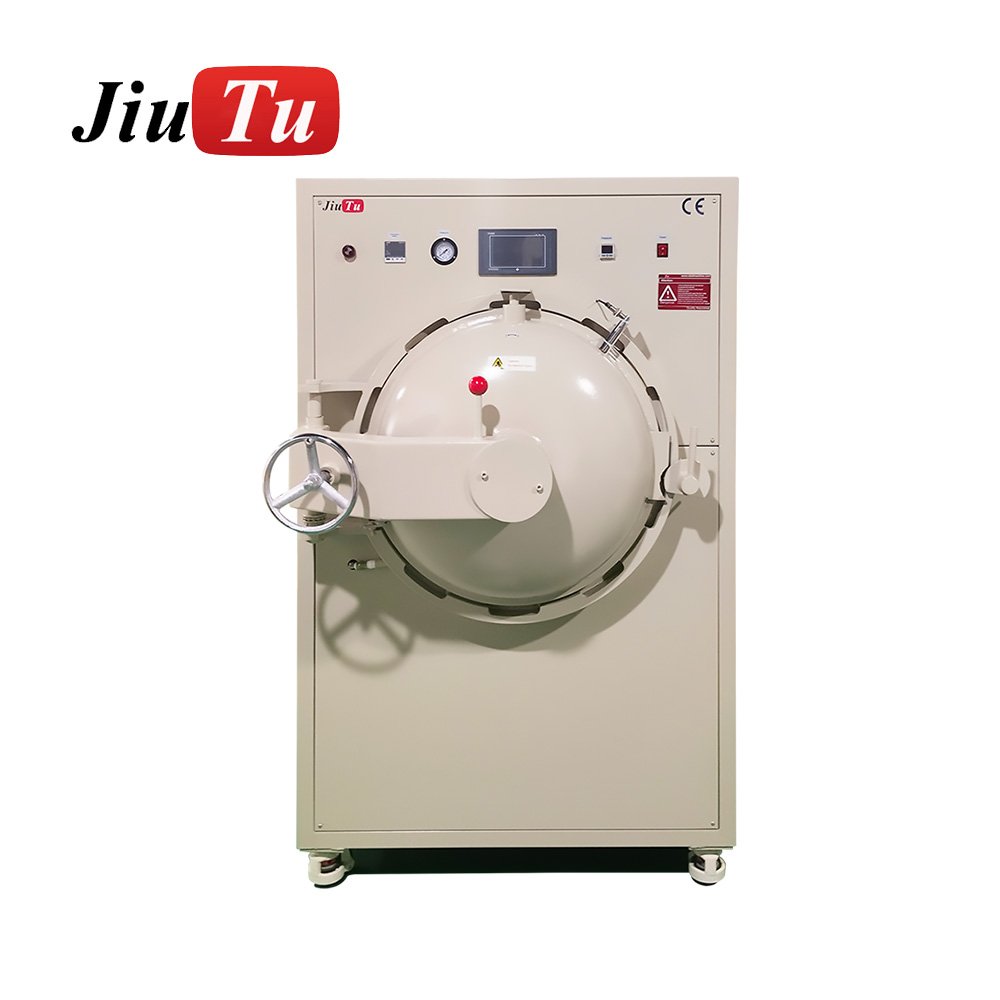

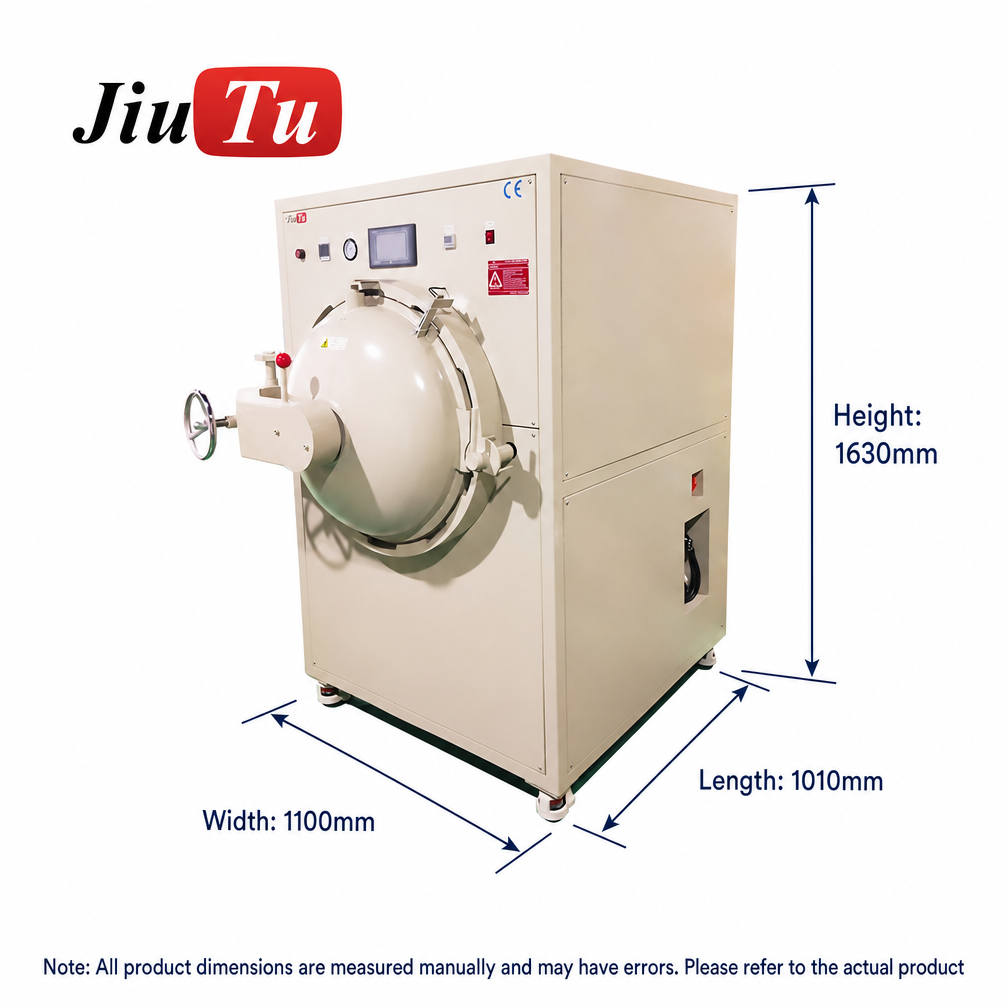

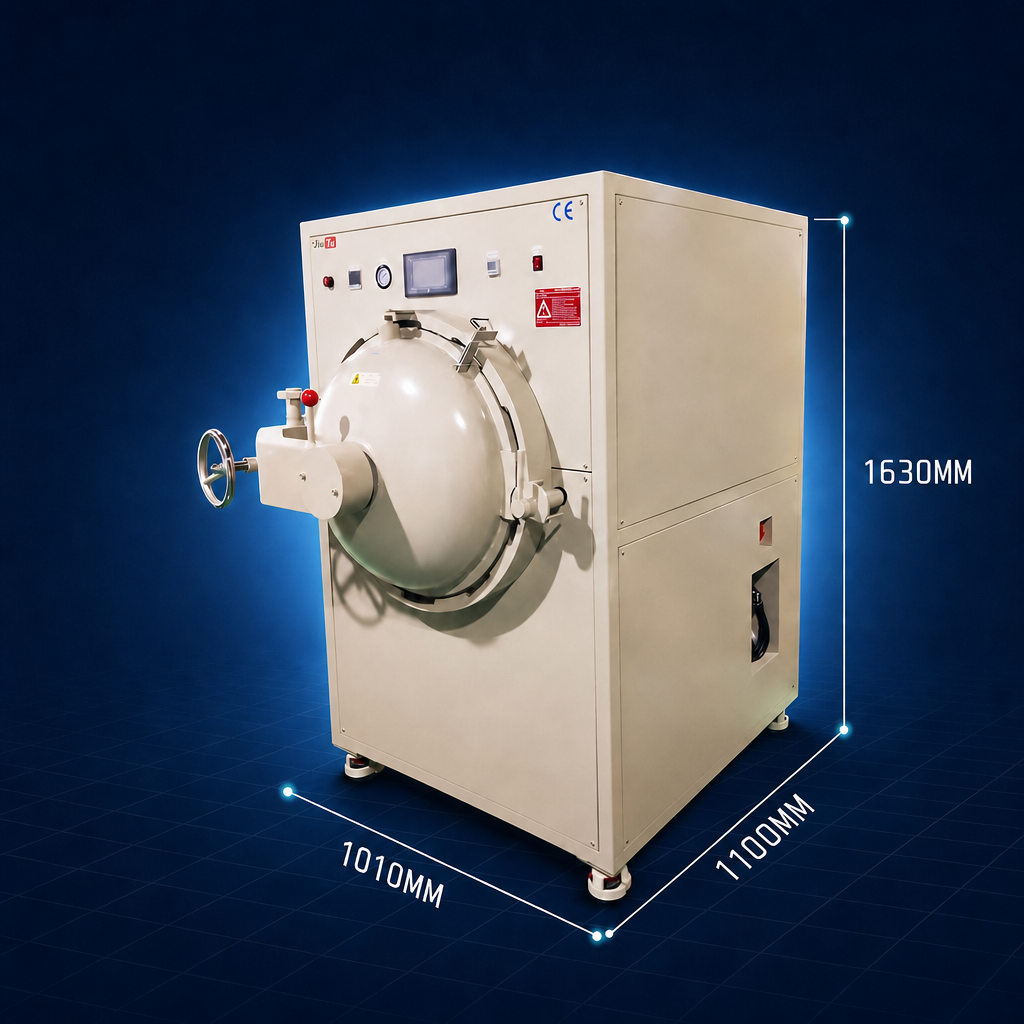

The 9TU-M059 features a φ600mm diameter × 900mm depth inner chamber built on a robust carbon steel cabinet. Its control system runs on PLC with a KHMI touchscreen interface, incorporating Taiwan AIRTAC solenoid valves, Omron intermediate relays, and Omron temperature controllers. The door closes through multiple interlock mechanisms before any cycle begins. And the chamber size can be customized to match your specific product dimensions and processing requirements.

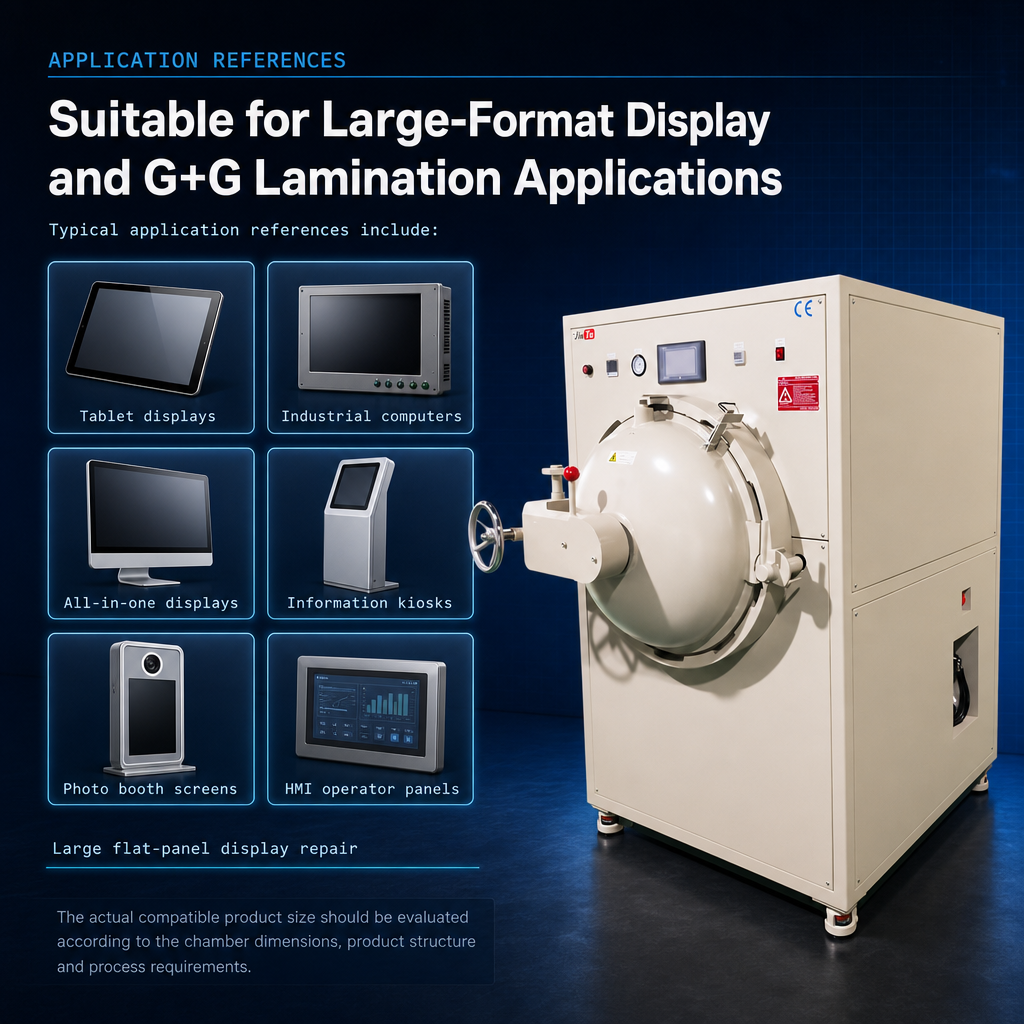

This machine removes residual air bubbles after OCA glue, polarizer, and other adhesive lamination — reliably, repeatably, across batch production cycles.

Key Features

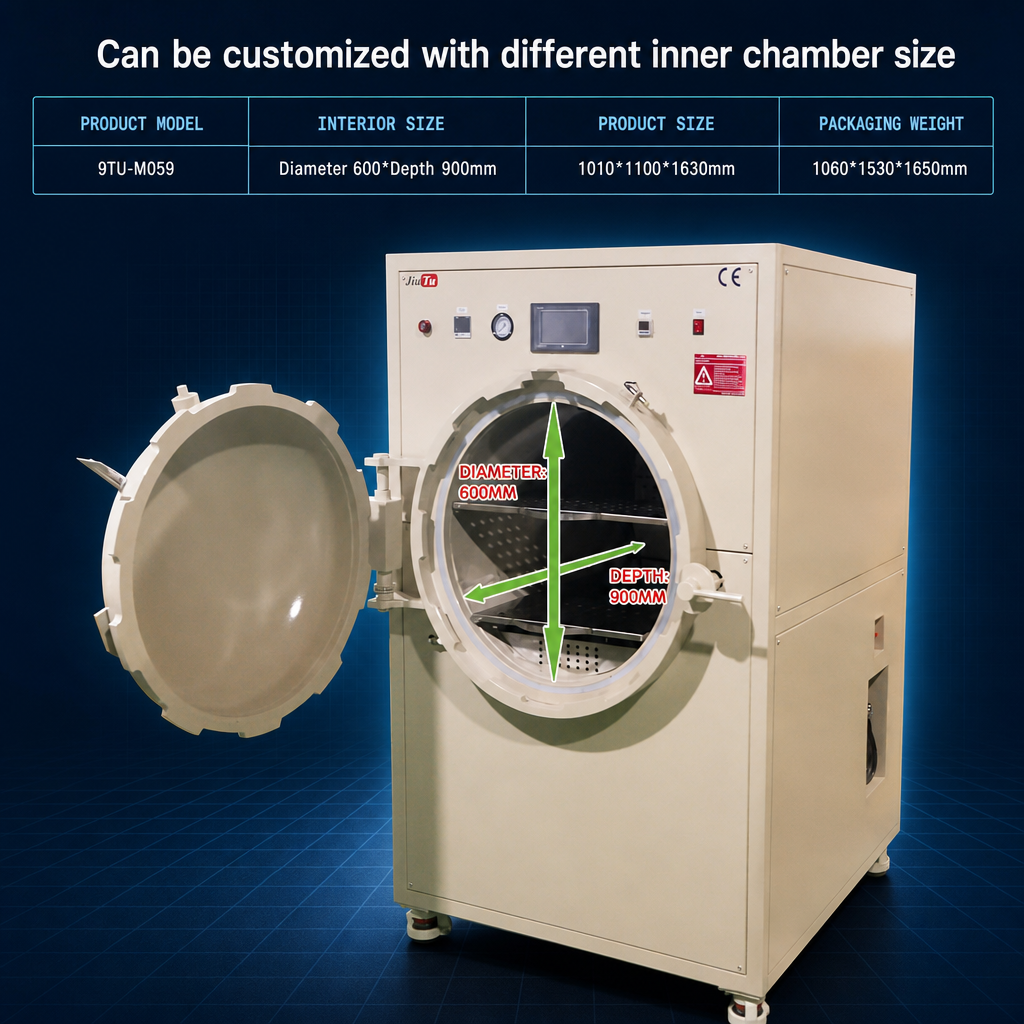

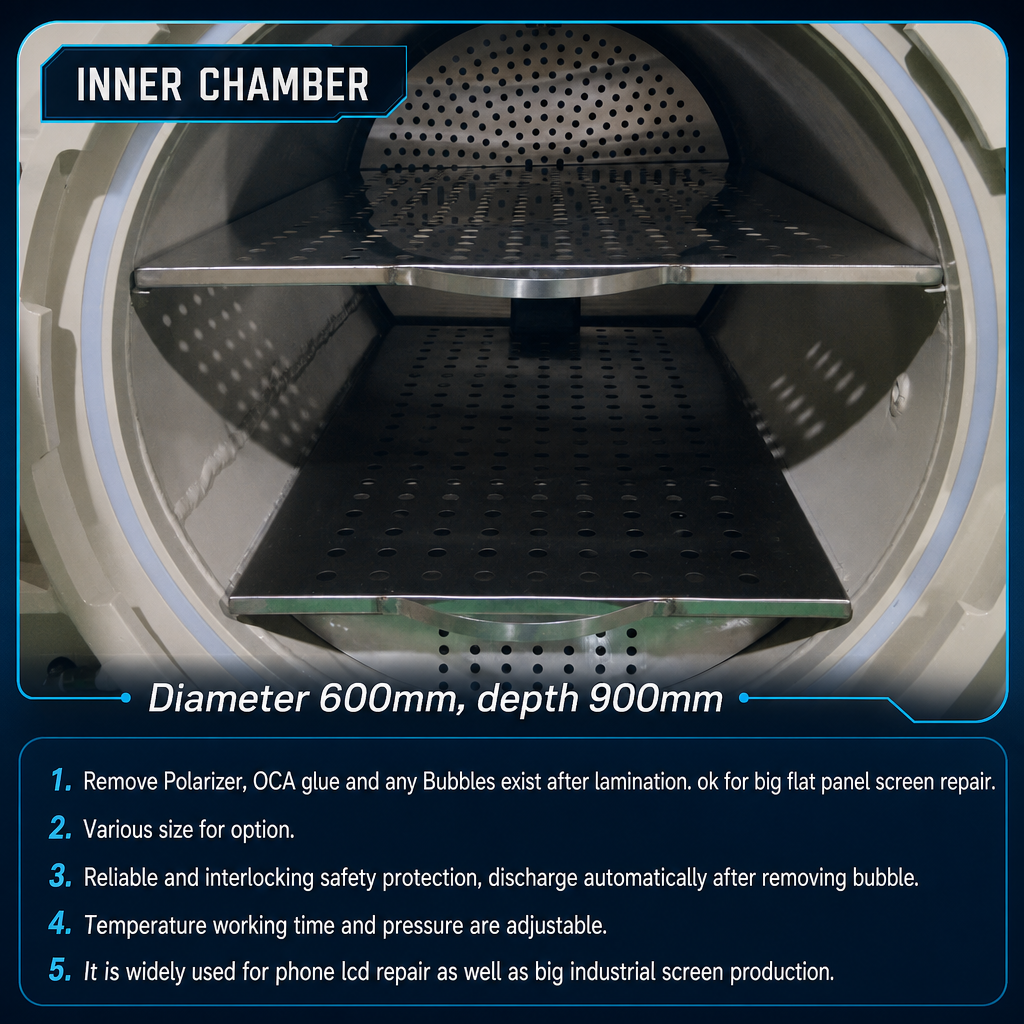

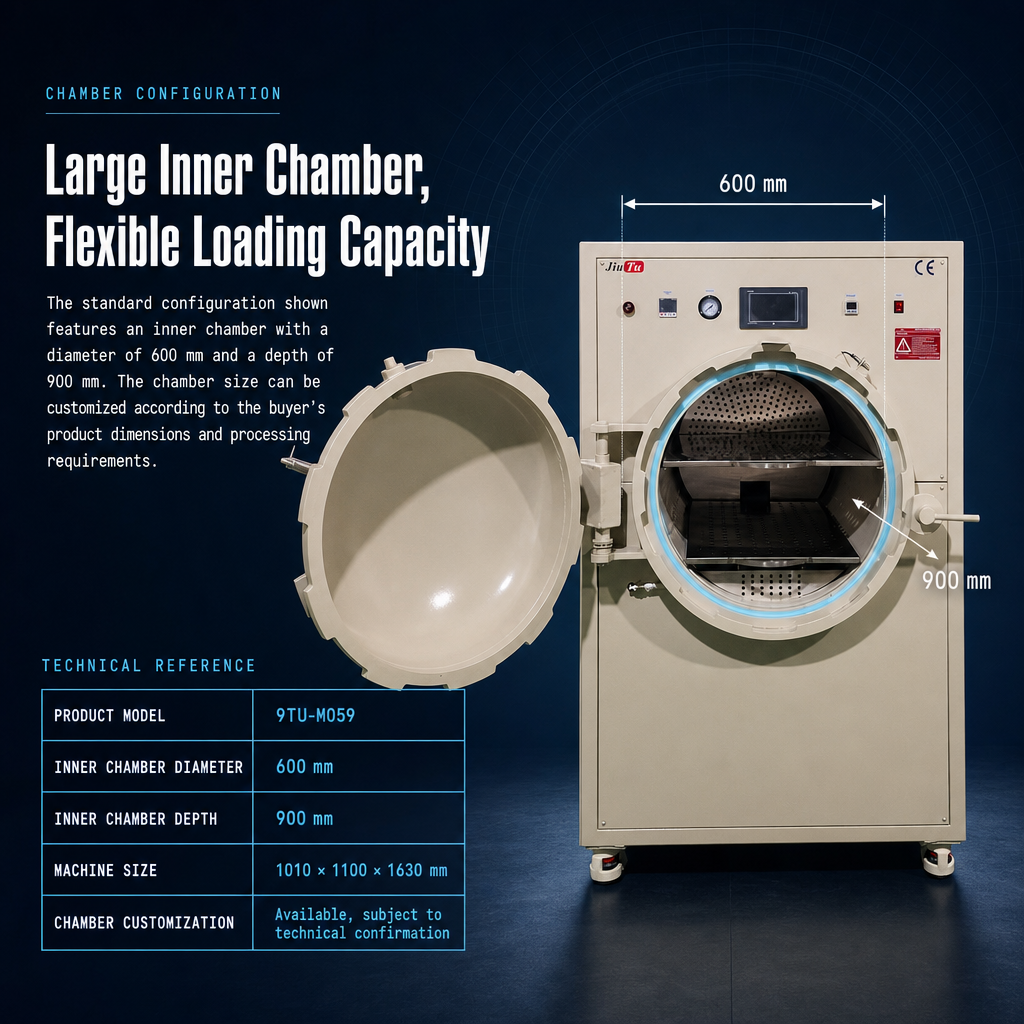

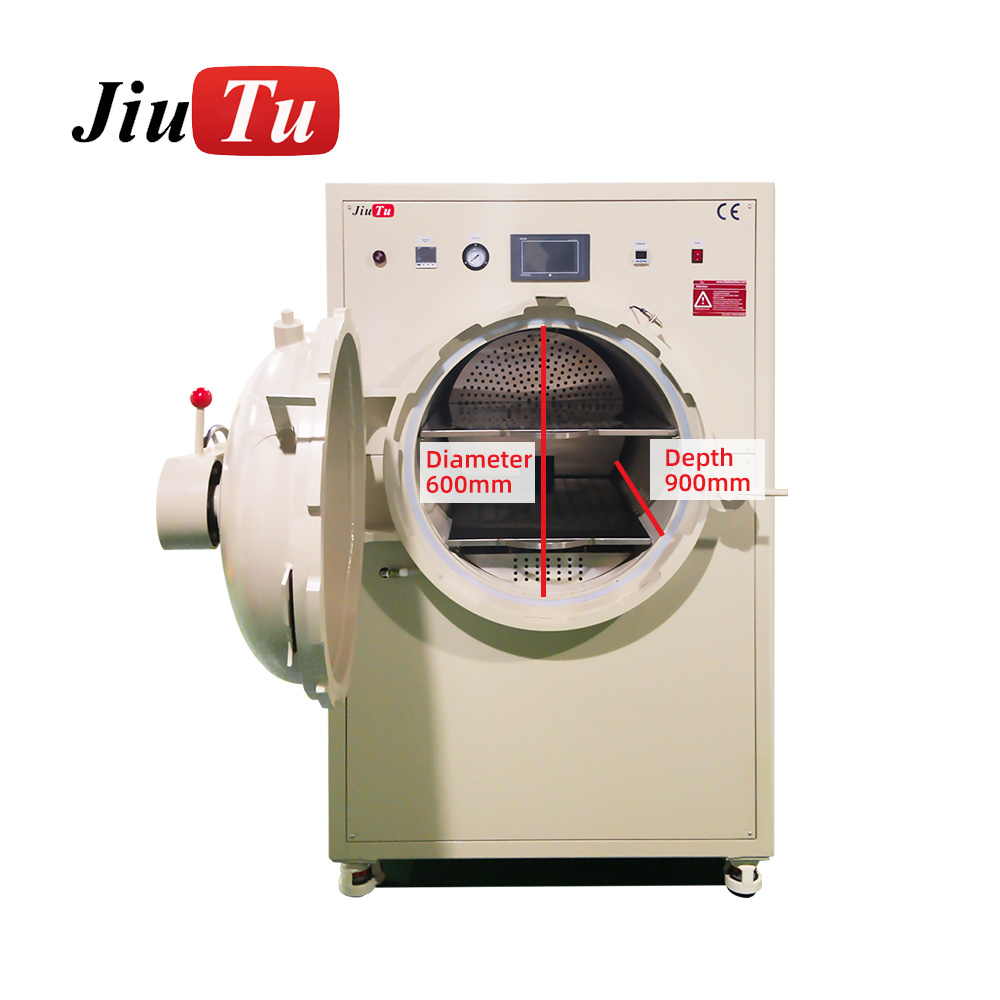

Chamber: φ600mm Diameter × 900mm Depth — Large Inner Chamber for Flexible Loading

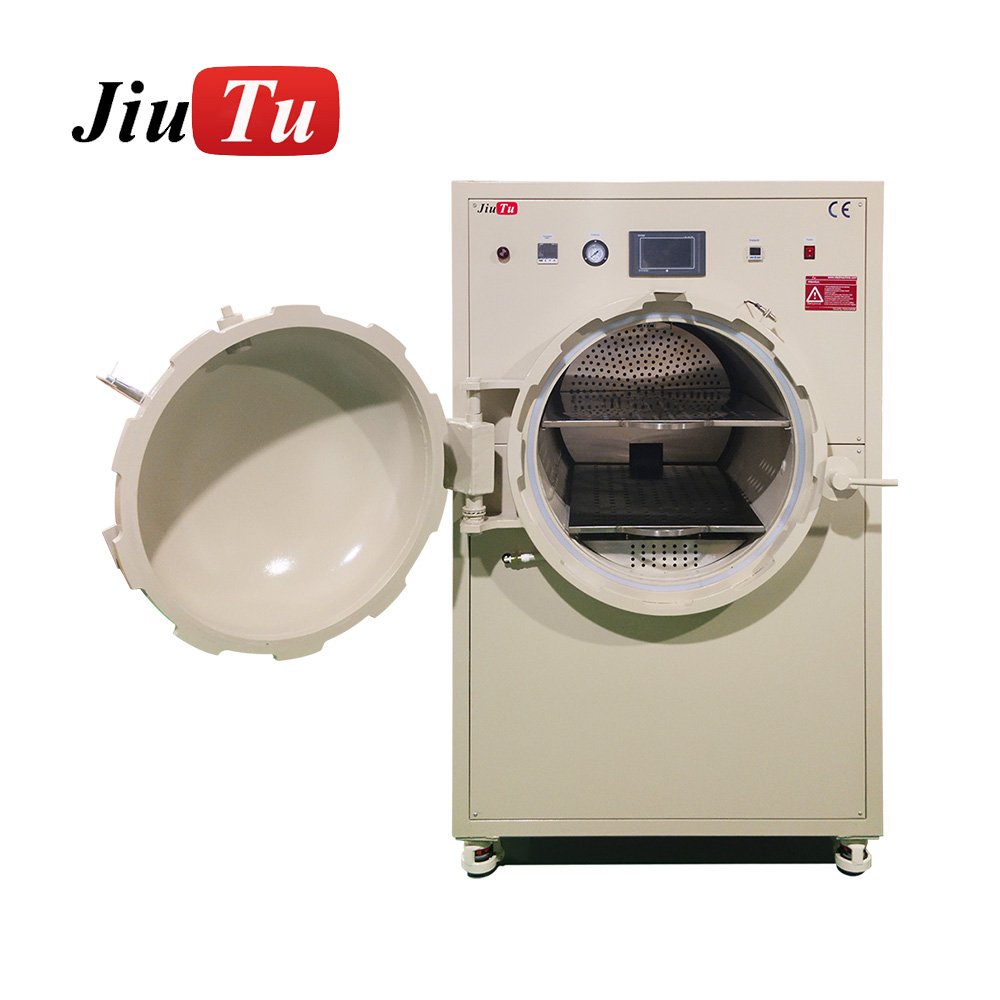

The 600mm diameter sets the usable loading width. The 900mm depth enables multi-tray batch loading along the chamber axis. The perforated inner chamber supports organized placement of panels and fixtures — the perforation pattern ensures consistent pressure distribution across the loaded trays.

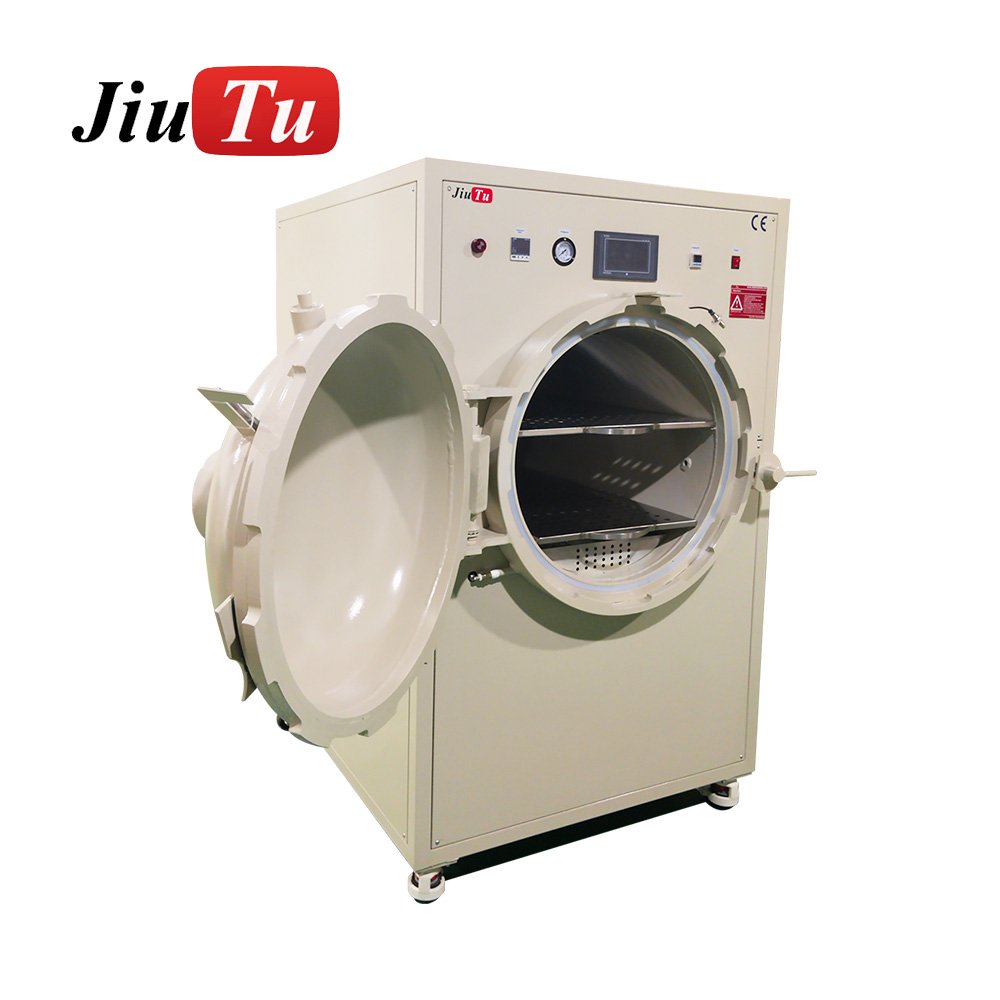

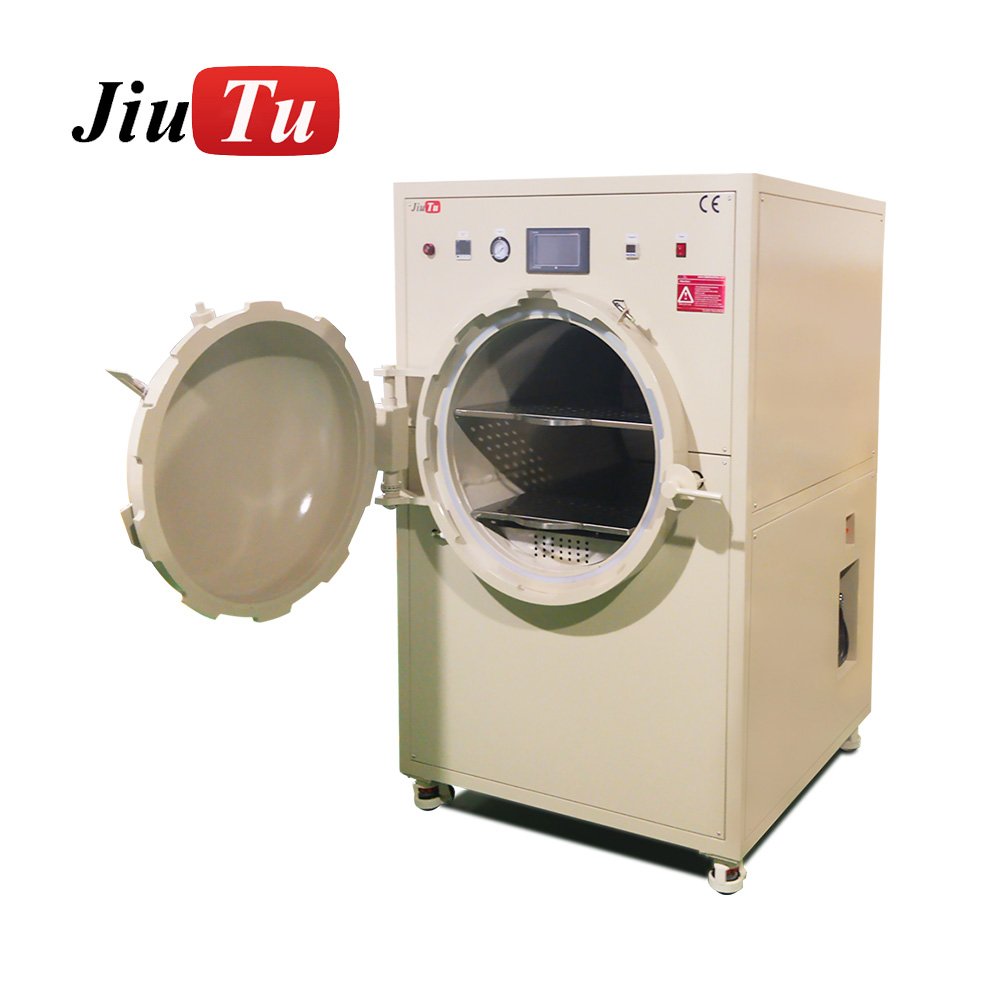

The front-opening chamber design allows straightforward loading and unloading. Exact loading quantity per cycle depends on panel size, fixture design, and tray arrangement. Send us your panel dimensions before ordering and we will calculate the configuration in writing.

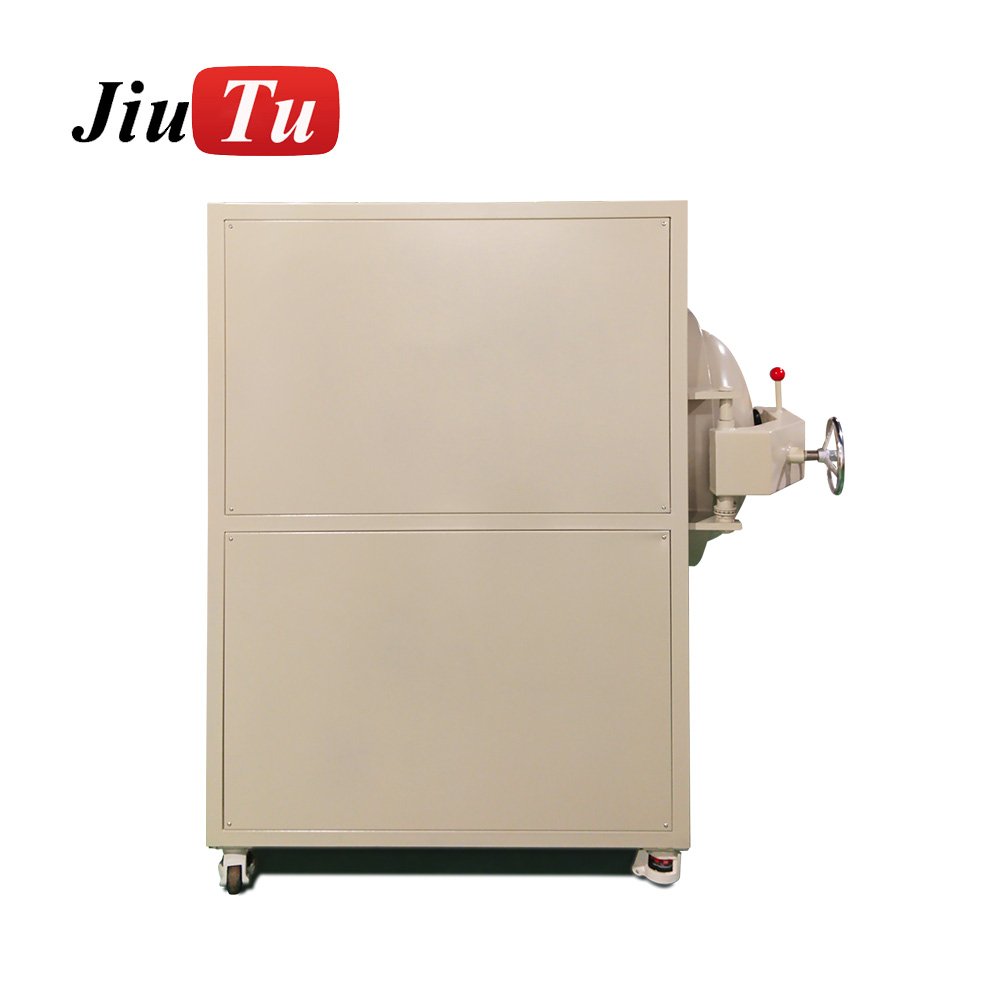

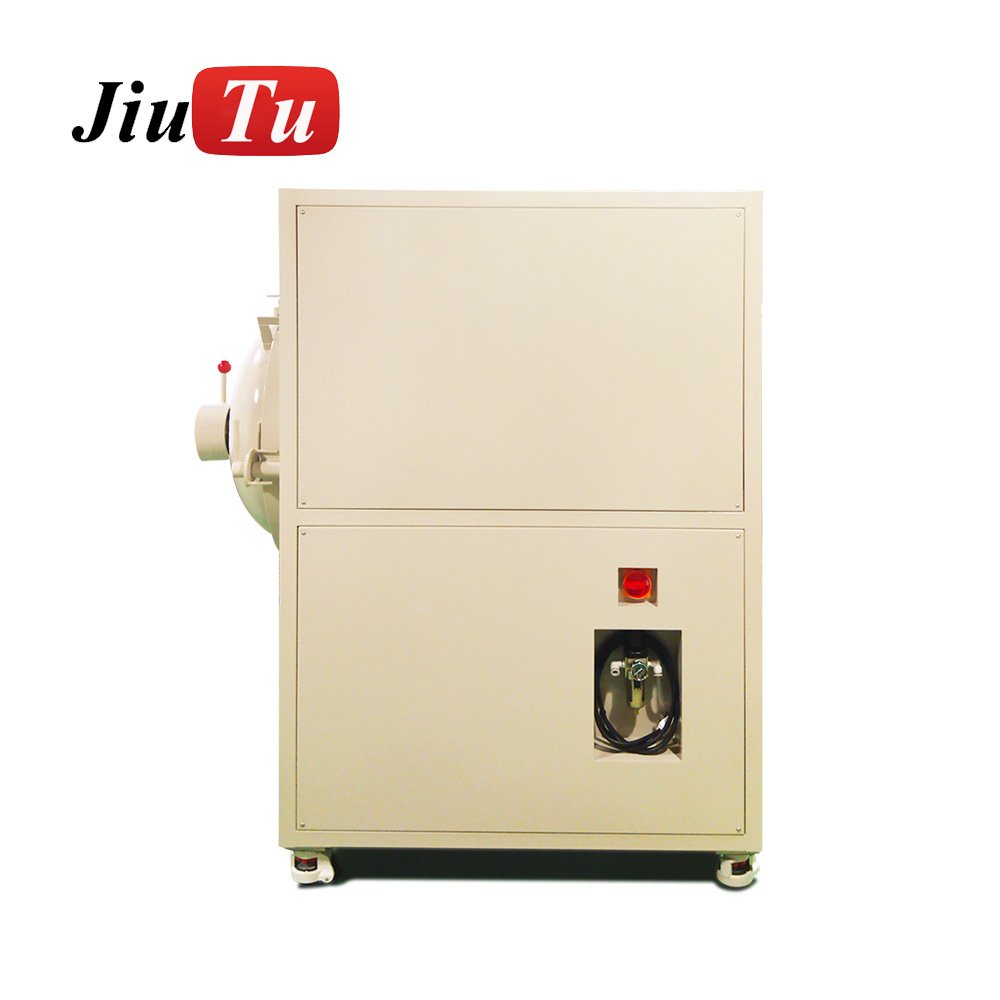

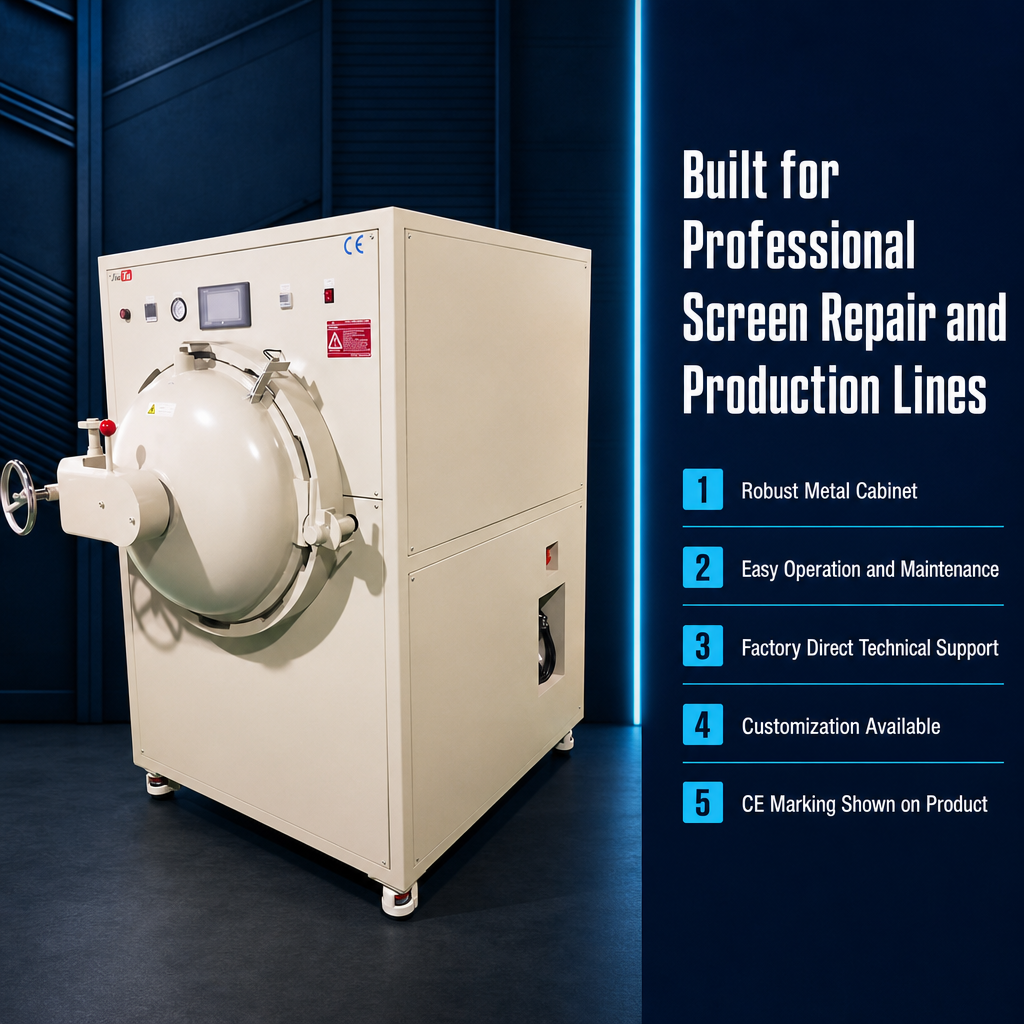

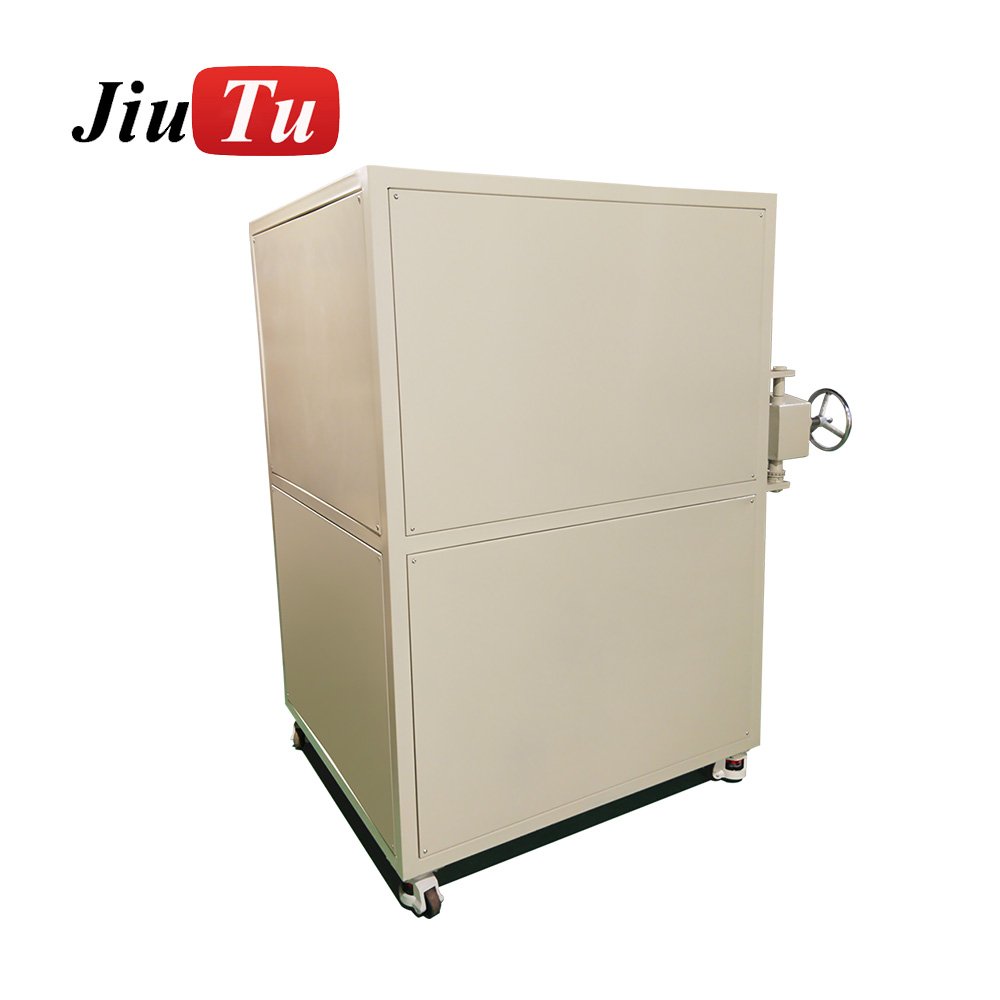

Carbon Steel Construction — Robust Metal Cabinet

Structural durability. The carbon steel cabinet provides a rigid, heavy-duty enclosure suited to production floor conditions. The image caption on this product reads: “Robust Metal Cabinet” — this is a confirmed design characteristic, not a marketing description.
Cost efficiency. Carbon steel construction reduces material cost compared to full stainless configurations, making this machine a practical option for operations that process non-corrosive adhesives in a controlled environment.
Maintenance consideration. Unlike stainless interiors, carbon steel surfaces require attention to moisture and chemical exposure to prevent surface oxidation over time. If your operating environment involves frequent chemical exposure or high humidity, discuss this with us before selecting this configuration.

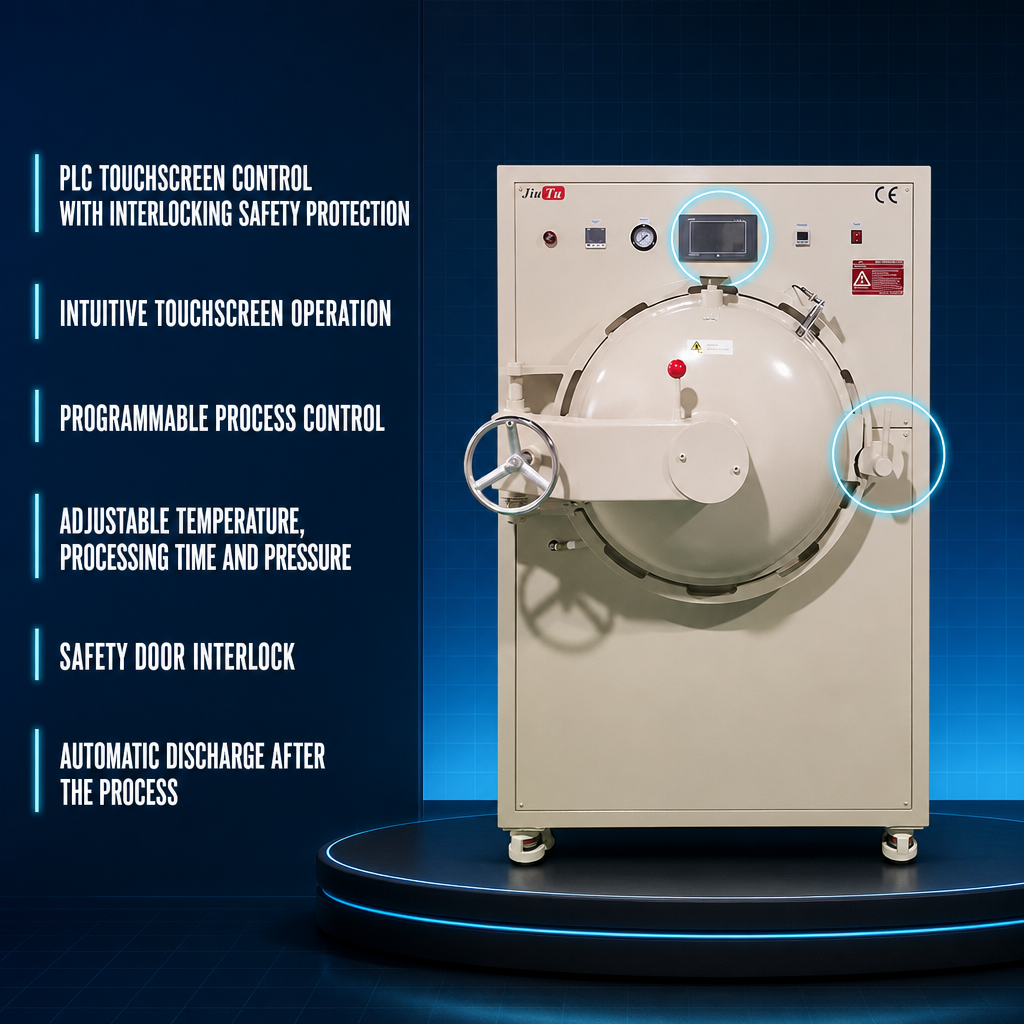

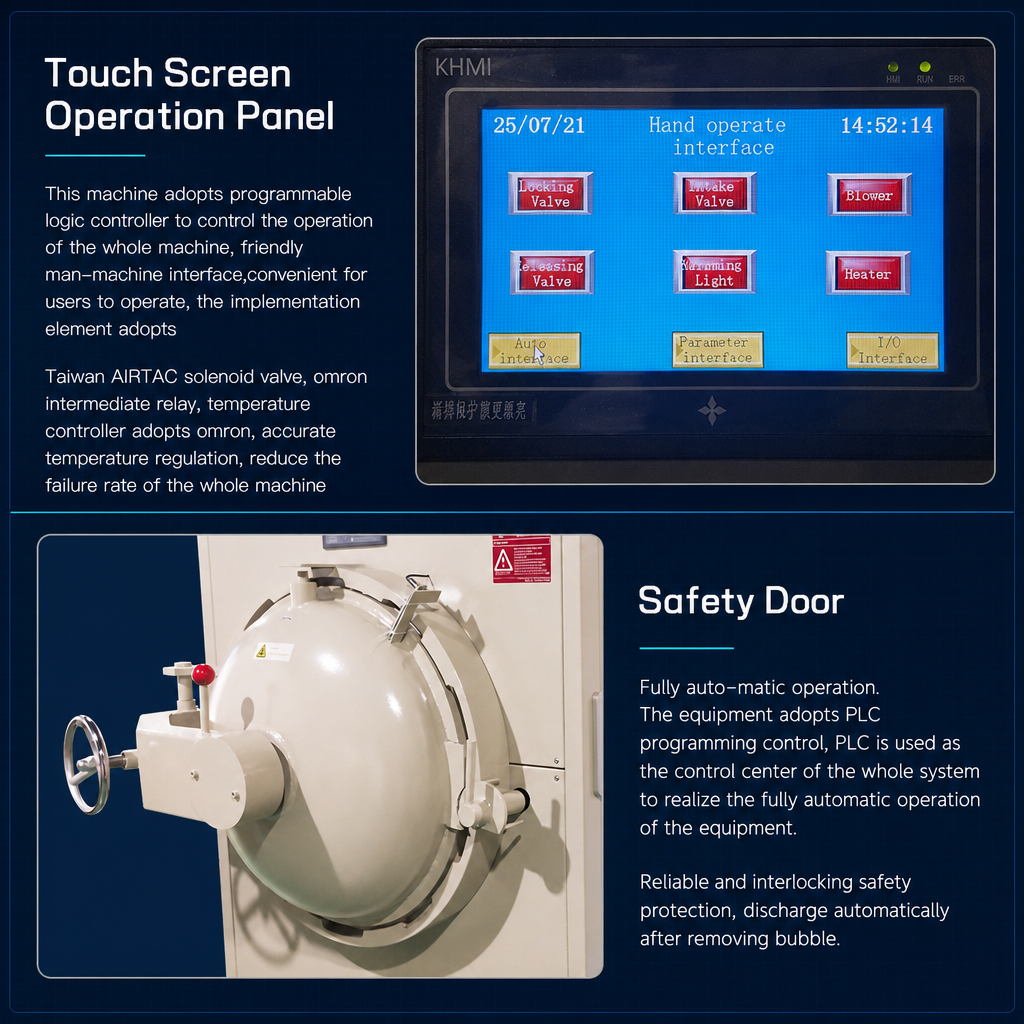

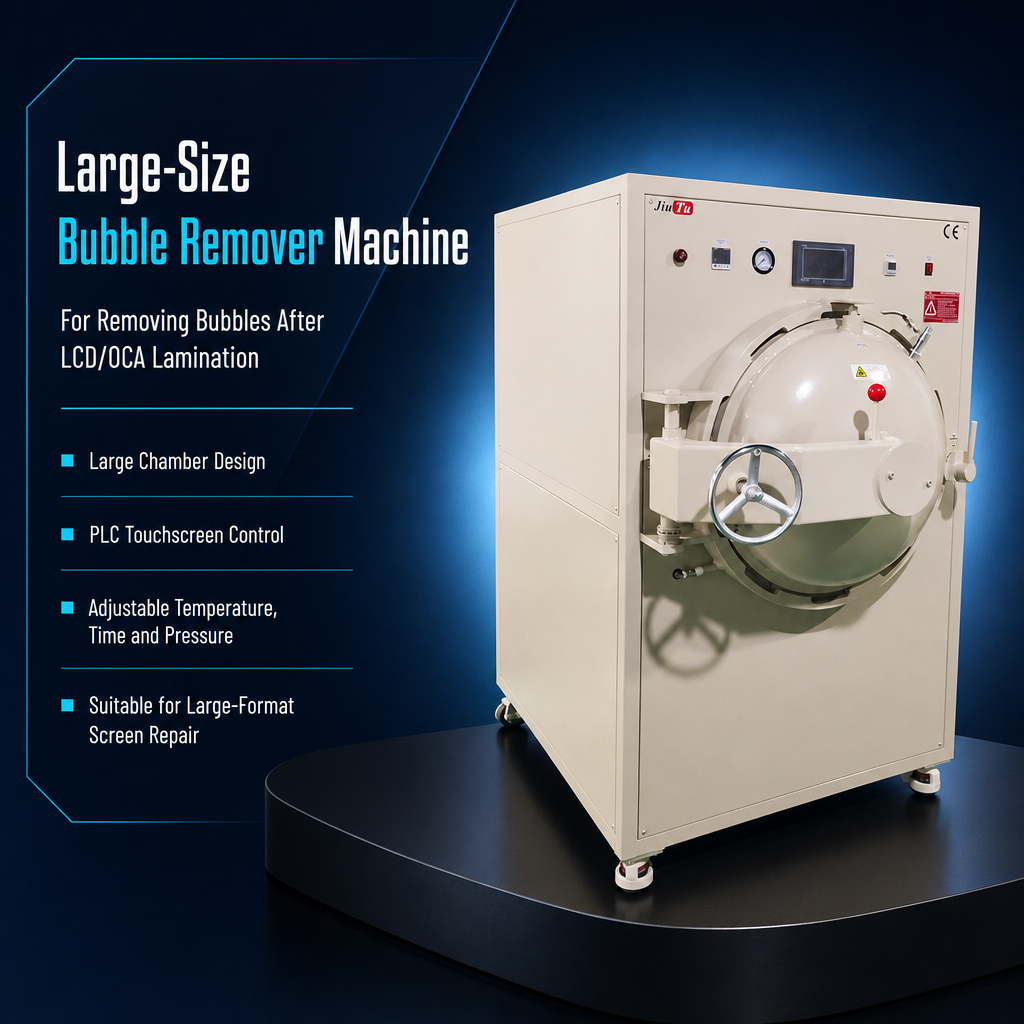

Control System — KHMI Touchscreen with PLC and High-Reliability Components

Component specification (confirmed from image text): Solenoid valve: Taiwan AIRTAC — a widely used industrial solenoid brand; Intermediate relay: Omron — Japanese industrial control component; Temperature controller: Omron — accurate temperature regulation, reduces overall machine failure rate.
Fully automatic operation: The equipment uses PLC as the control center of the whole system to realize fully automatic operation. The machine discharges automatically after the defoaming cycle is complete — no manual intervention required at cycle end.

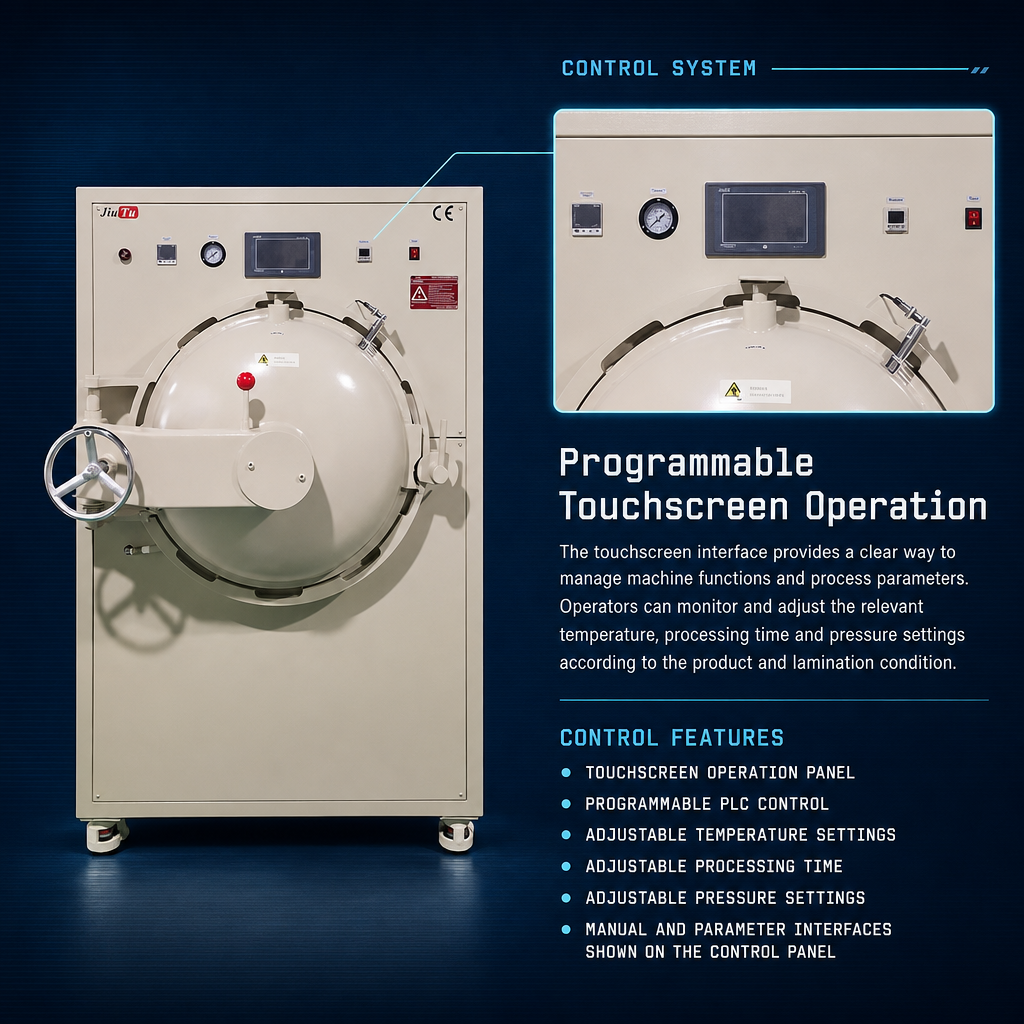

Adjustable process parameters: Temperature, working time, and pressure are all adjustable via the touchscreen interface.

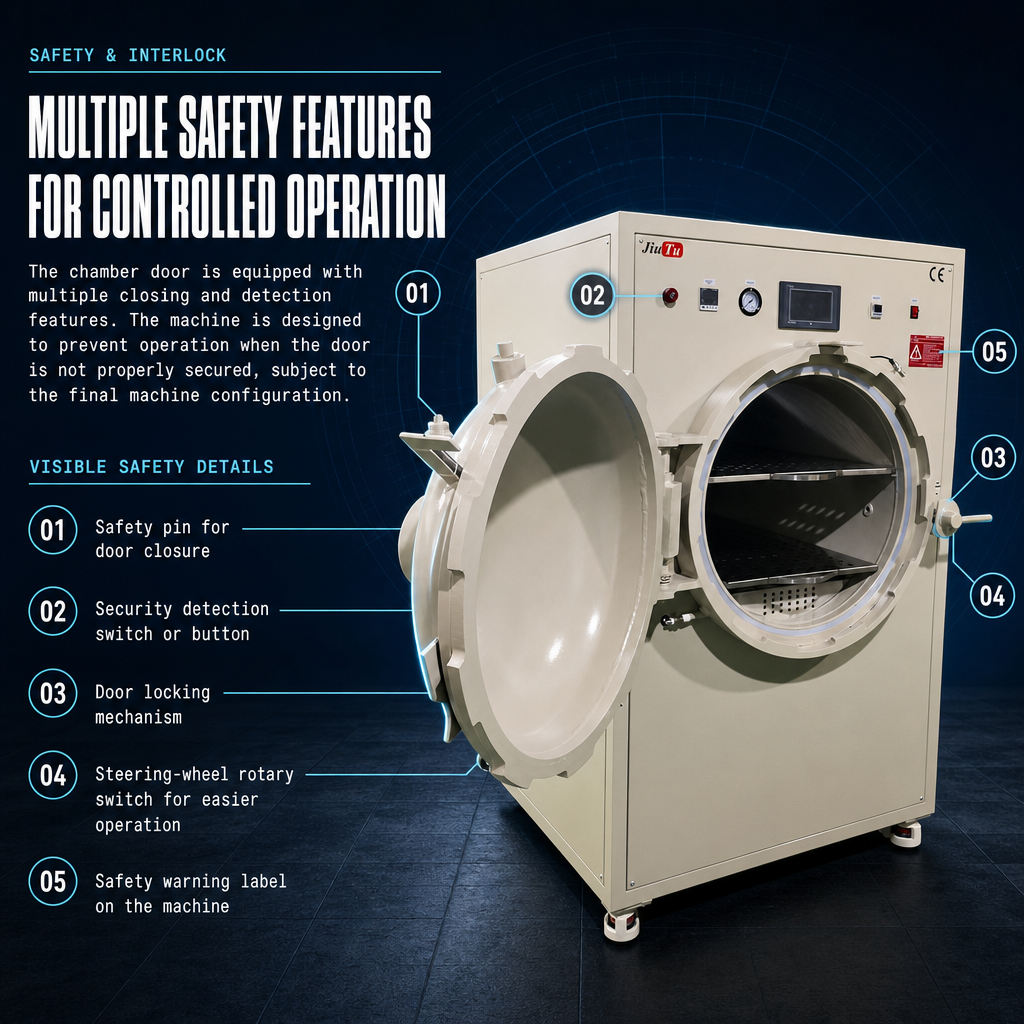

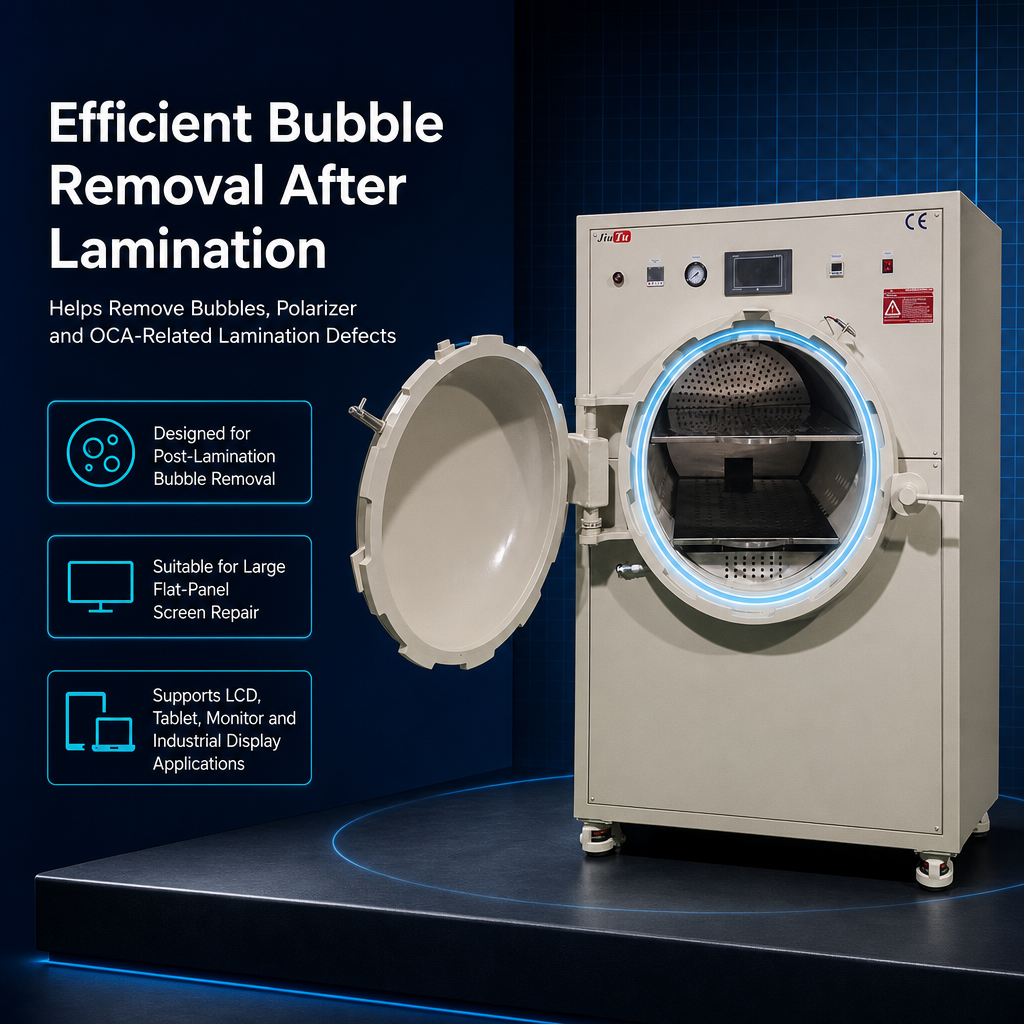

Multiple Safety Features for Controlled Operation

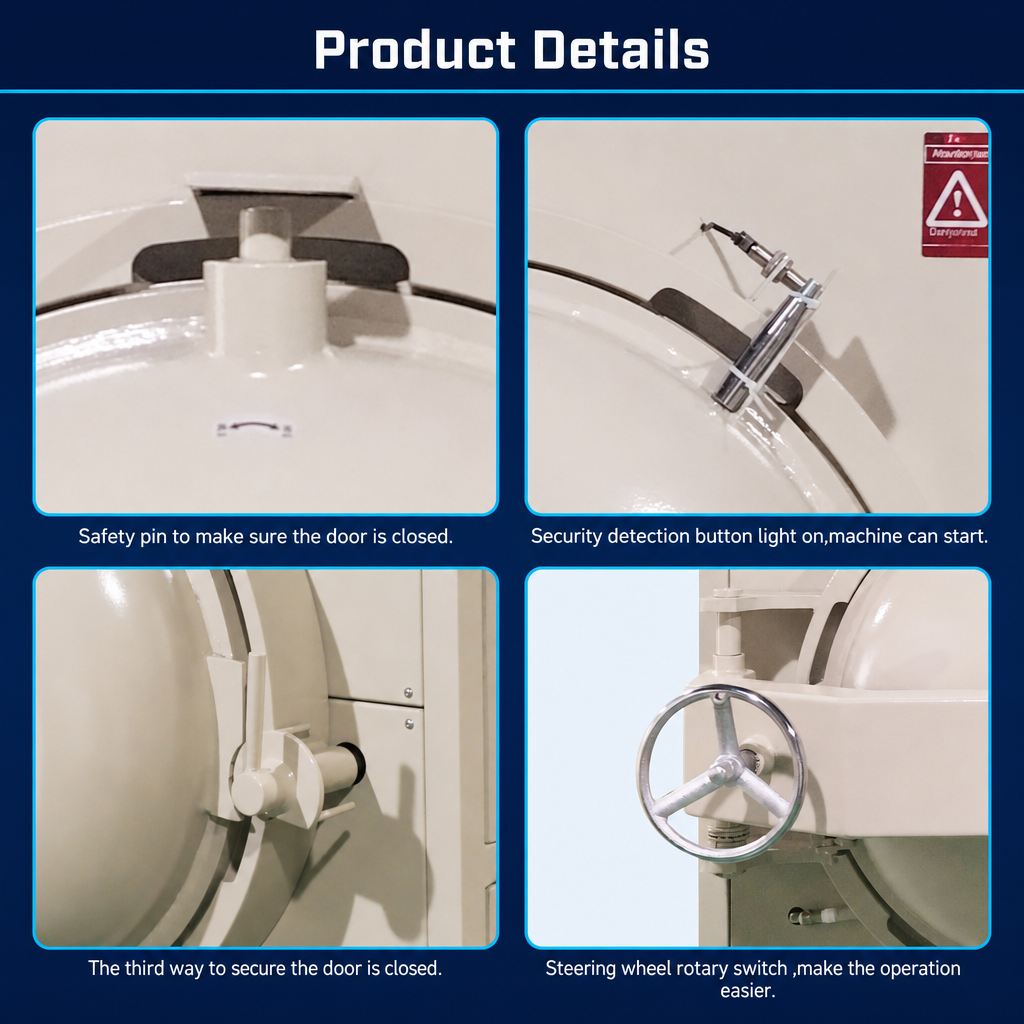

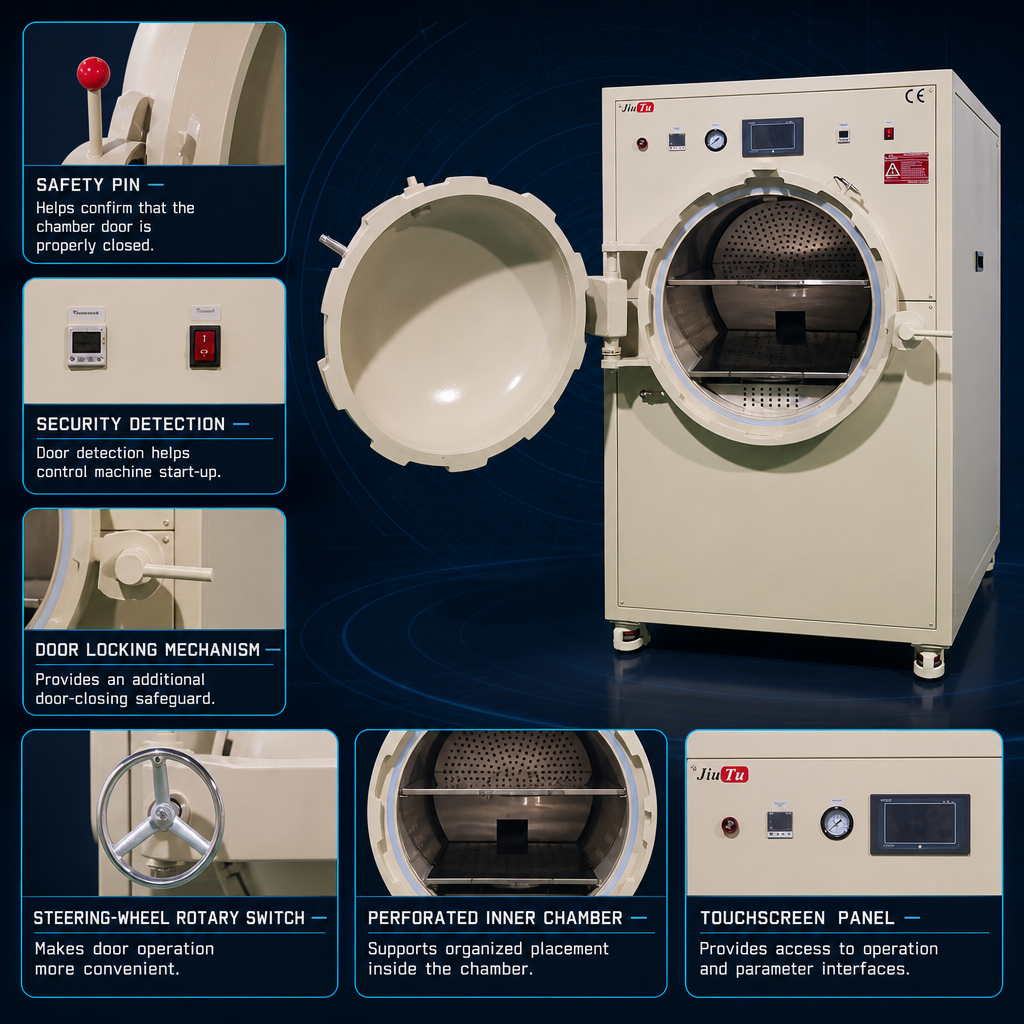

The chamber door on this machine incorporates multiple closing and detection features. The machine is designed to prevent operation when the door is not properly secured, subject to the final machine configuration.

Why Choose Us

① Customizable Chamber Size

And the chamber size can be customized to match your specific product dimensions and processing requirements.

② Configuration Calculated in Writing

Send us your panel dimensions before ordering and we will calculate the configuration in writing.

③ High-Reliability Component Selection

This component selection — AIRTAC pneumatics combined with Omron control elements — is a standard configuration in industrial autoclave production. The combination provides reliable process repeatability and straightforward maintenance when component replacement is required.

④ Fully Automatic Operation

Fully automatic operation: The equipment uses PLC as the control center of the whole system to realize fully automatic operation. The machine discharges automatically after the defoaming cycle is complete — no manual intervention required at cycle end.

⑤ Safety First

The chamber door on this machine incorporates multiple closing and detection features. The machine is designed to prevent operation when the door is not properly secured, subject to the final machine configuration.
