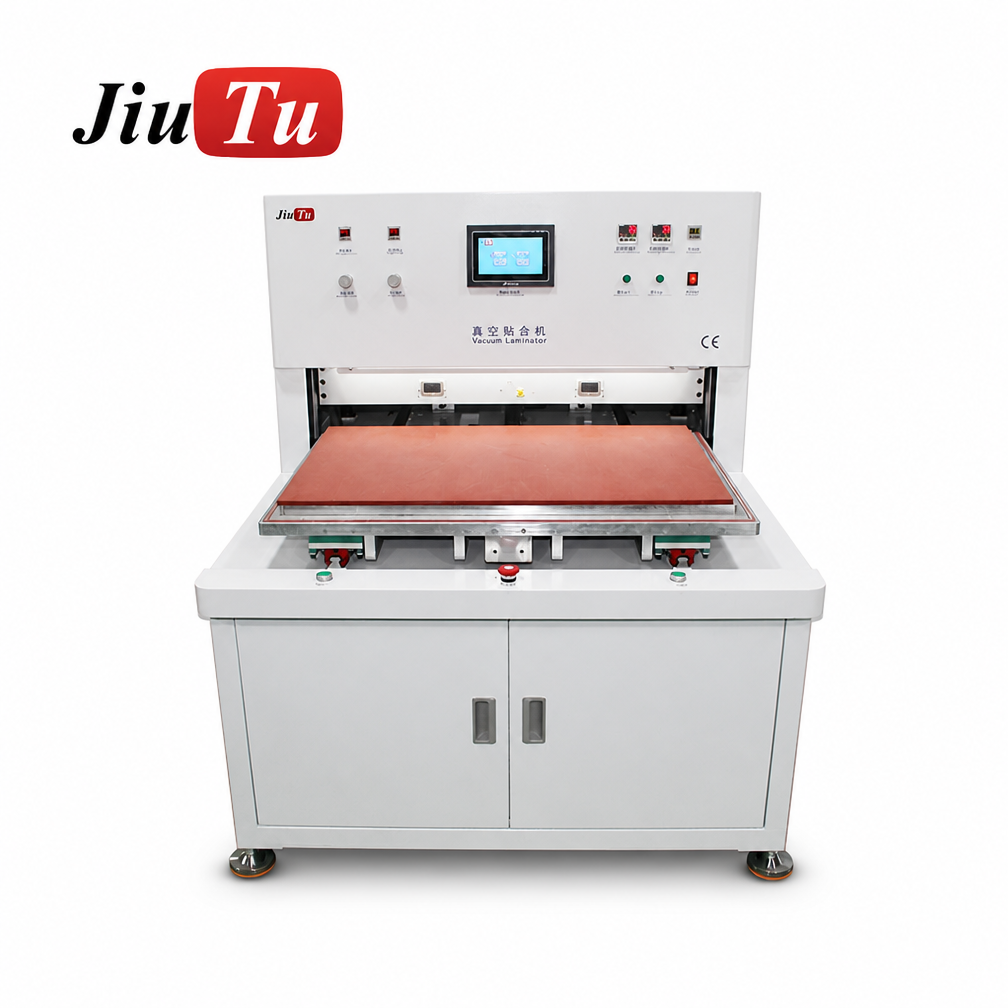

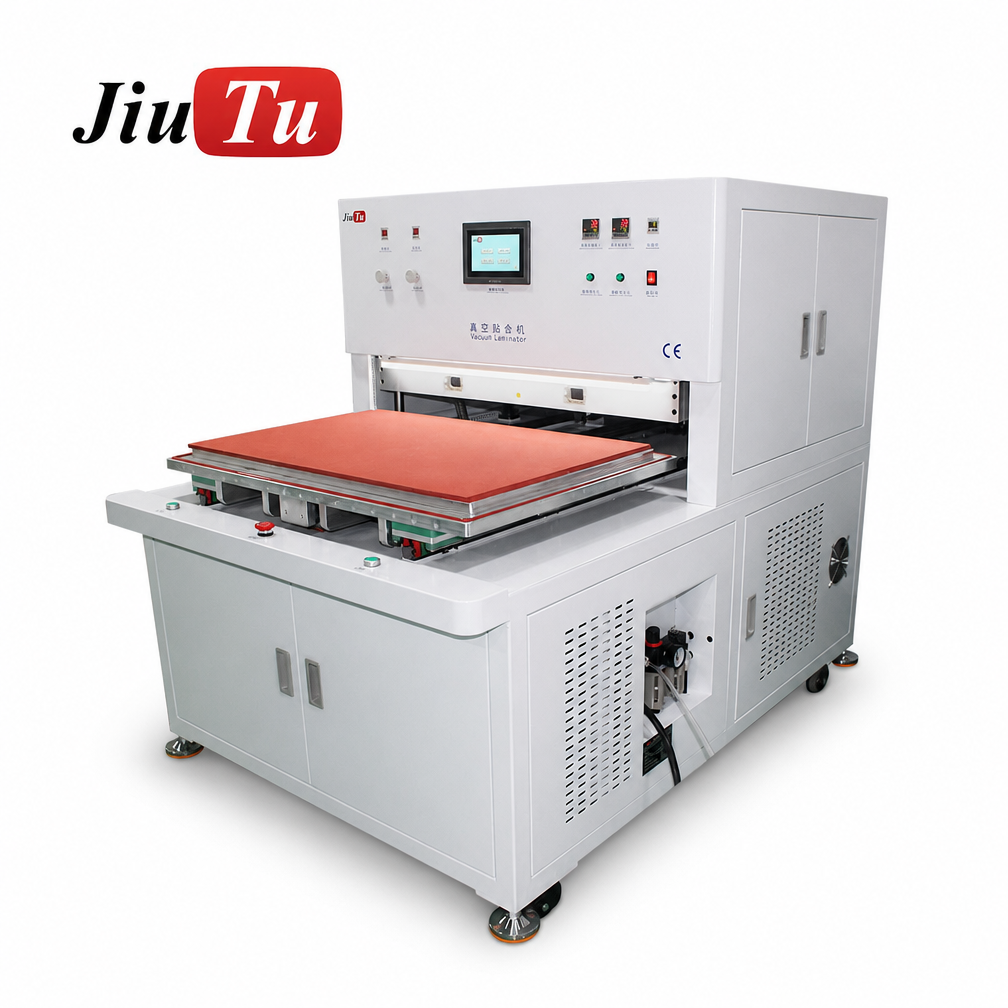

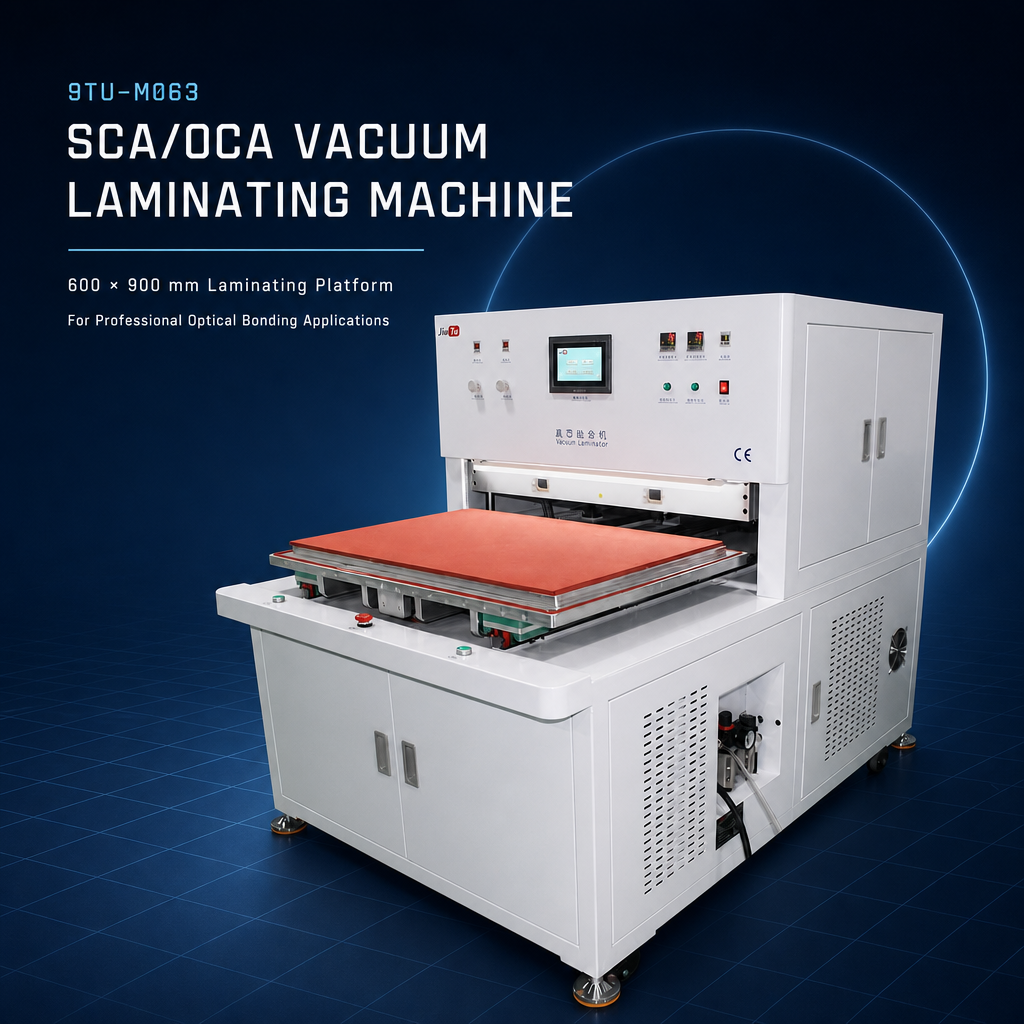

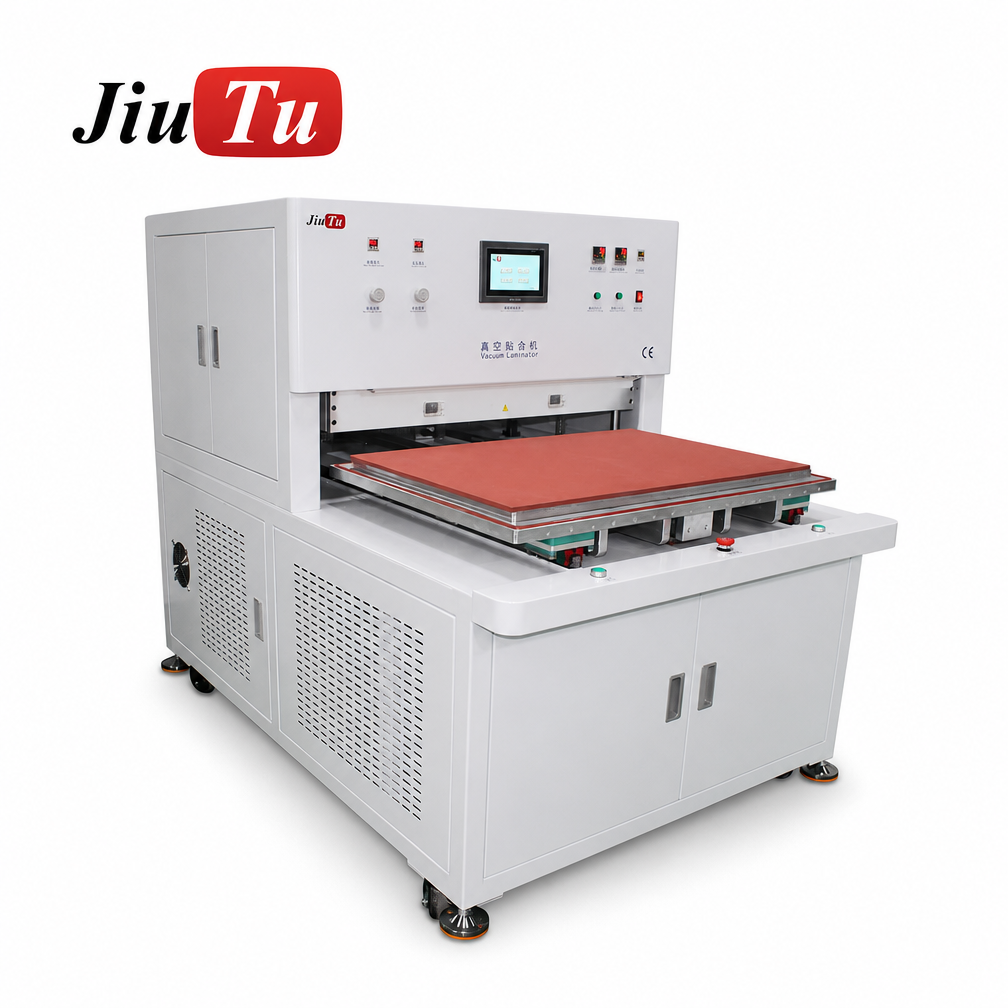

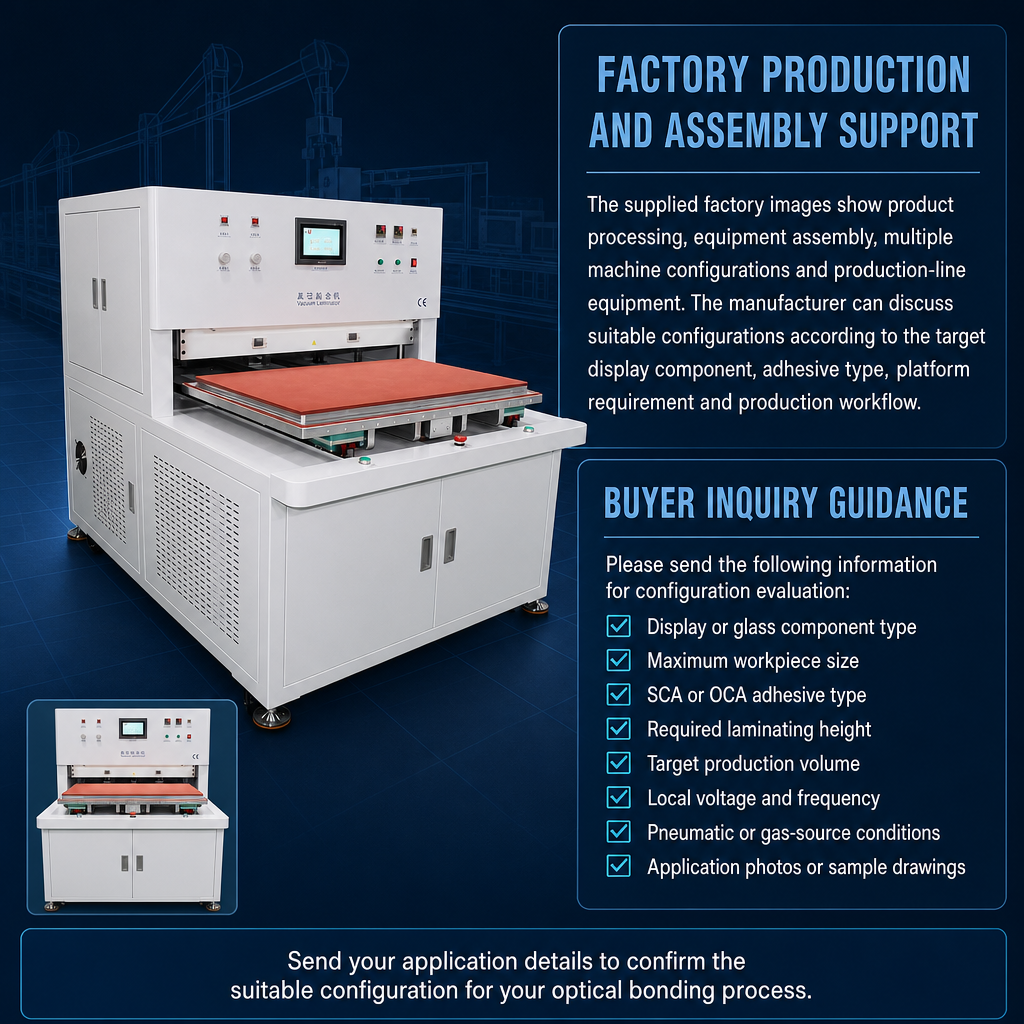

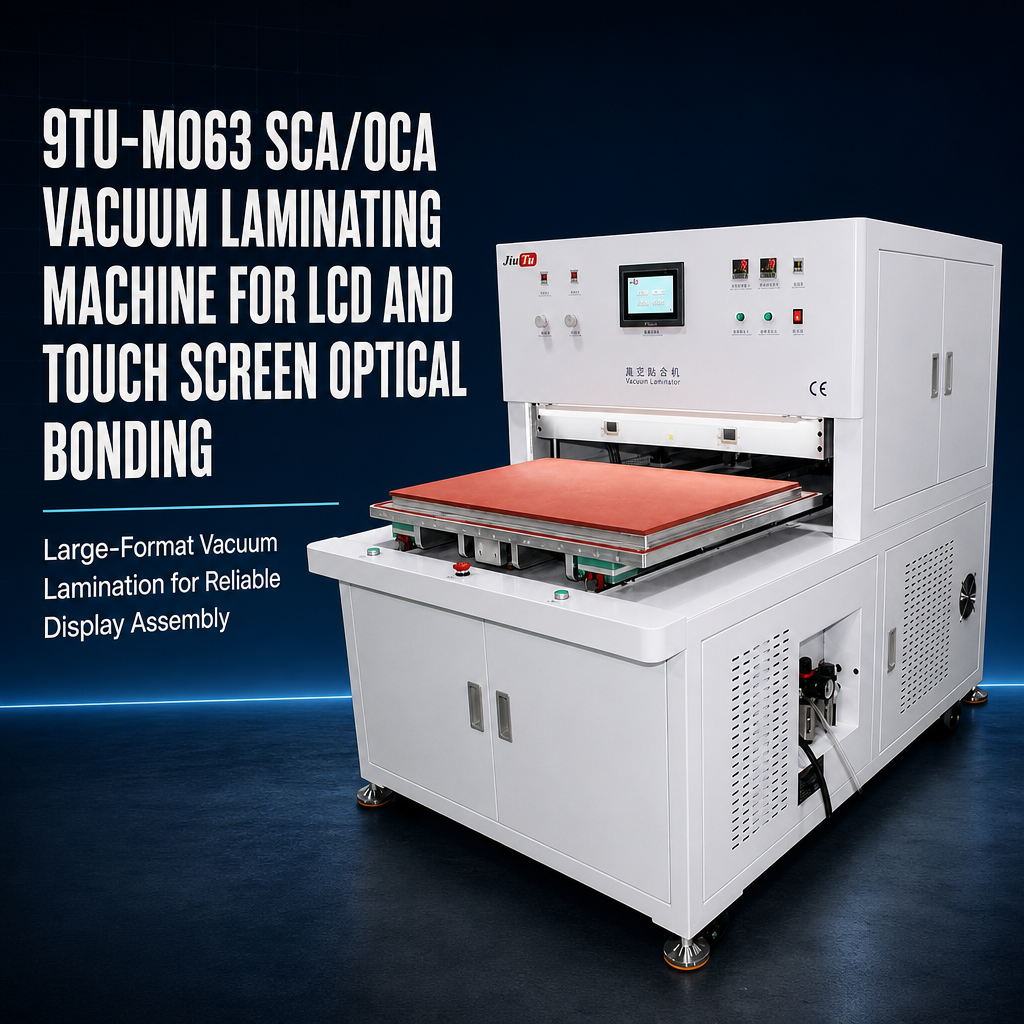

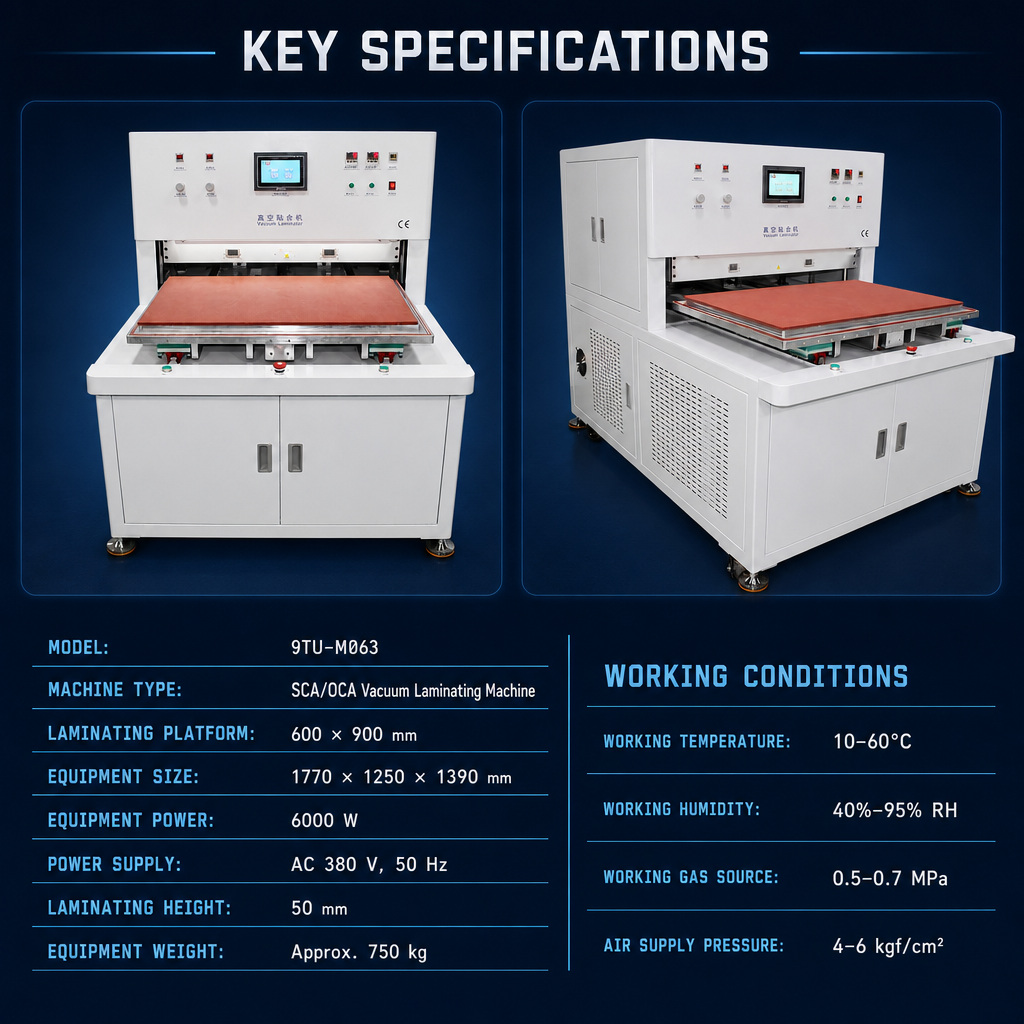

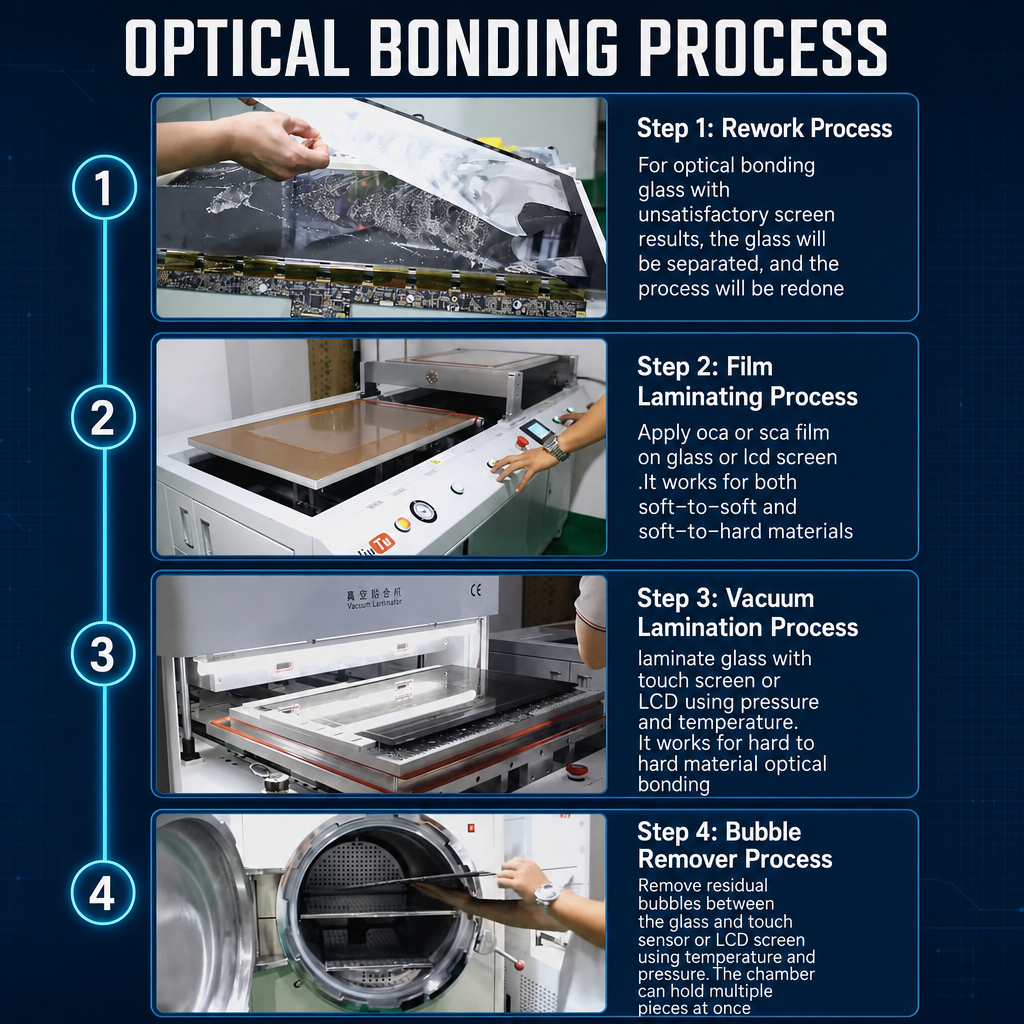

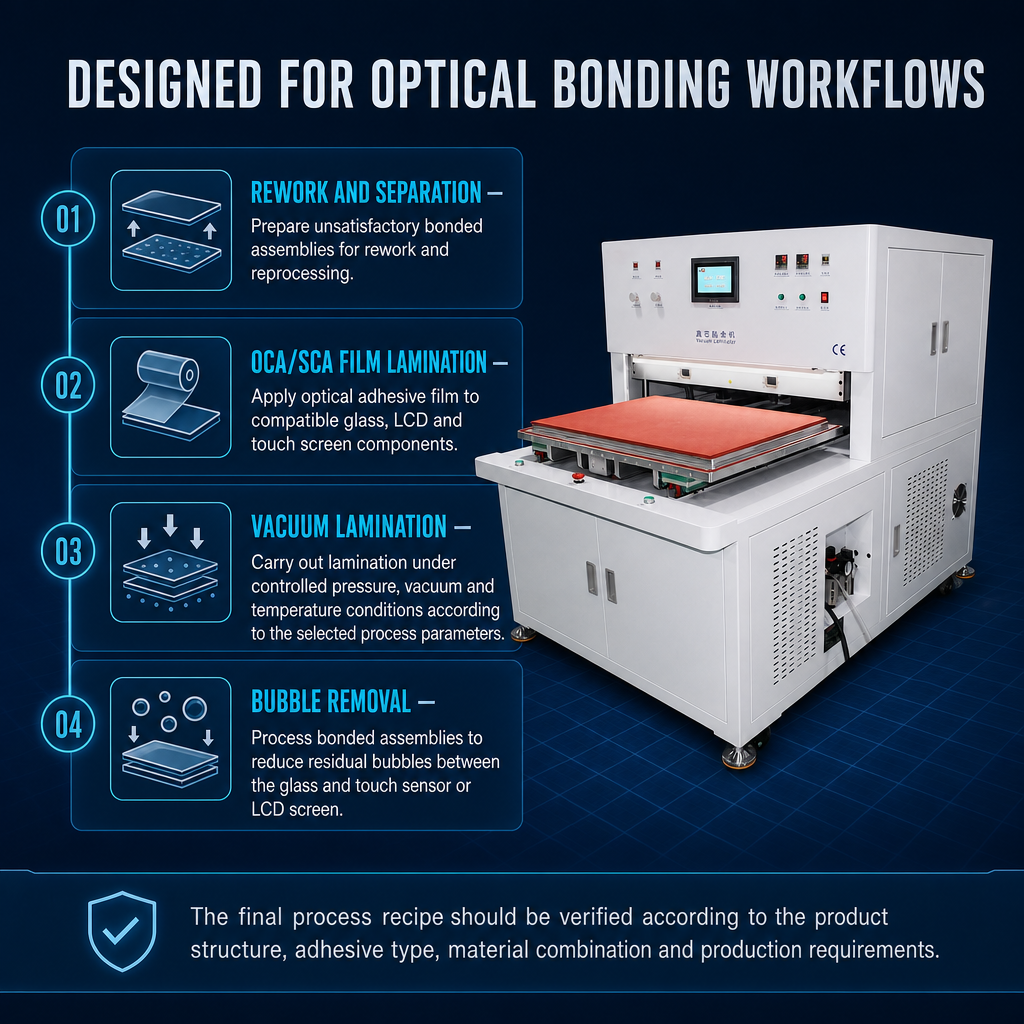

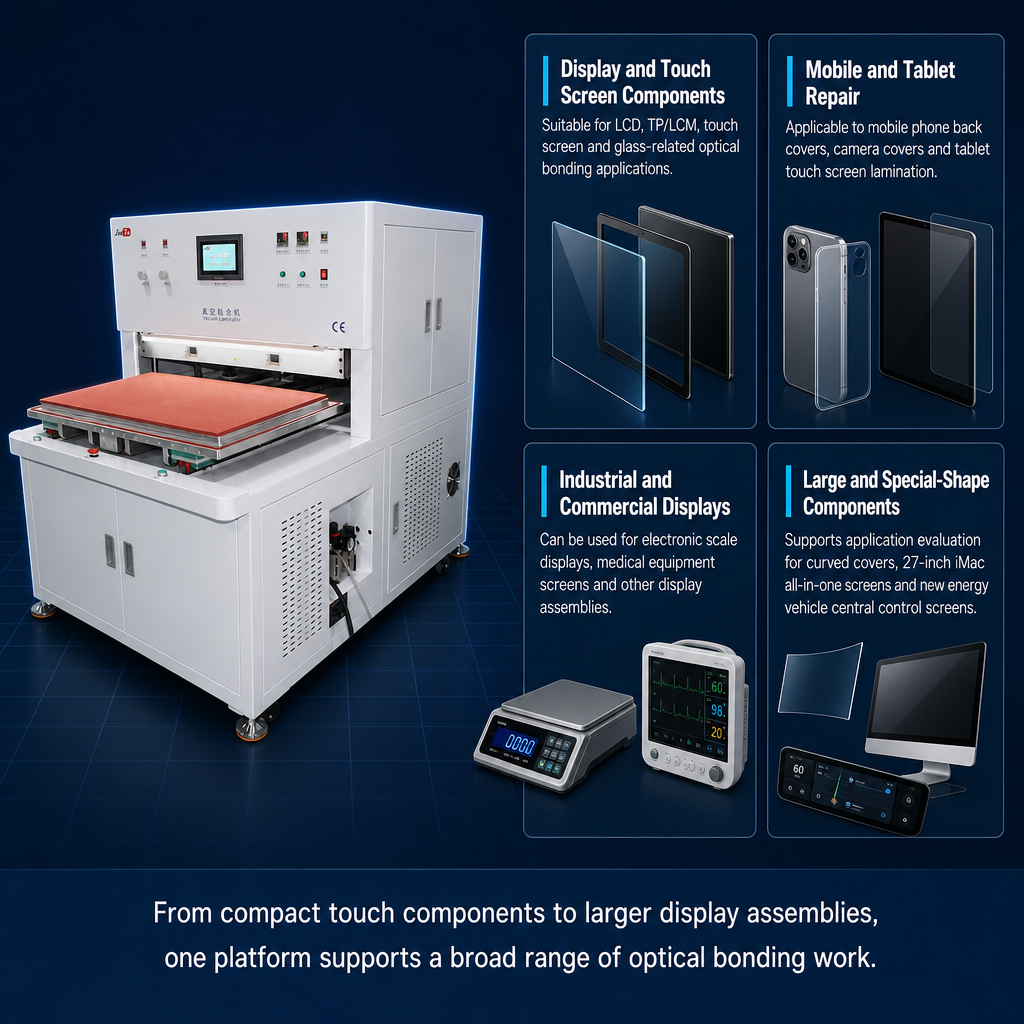

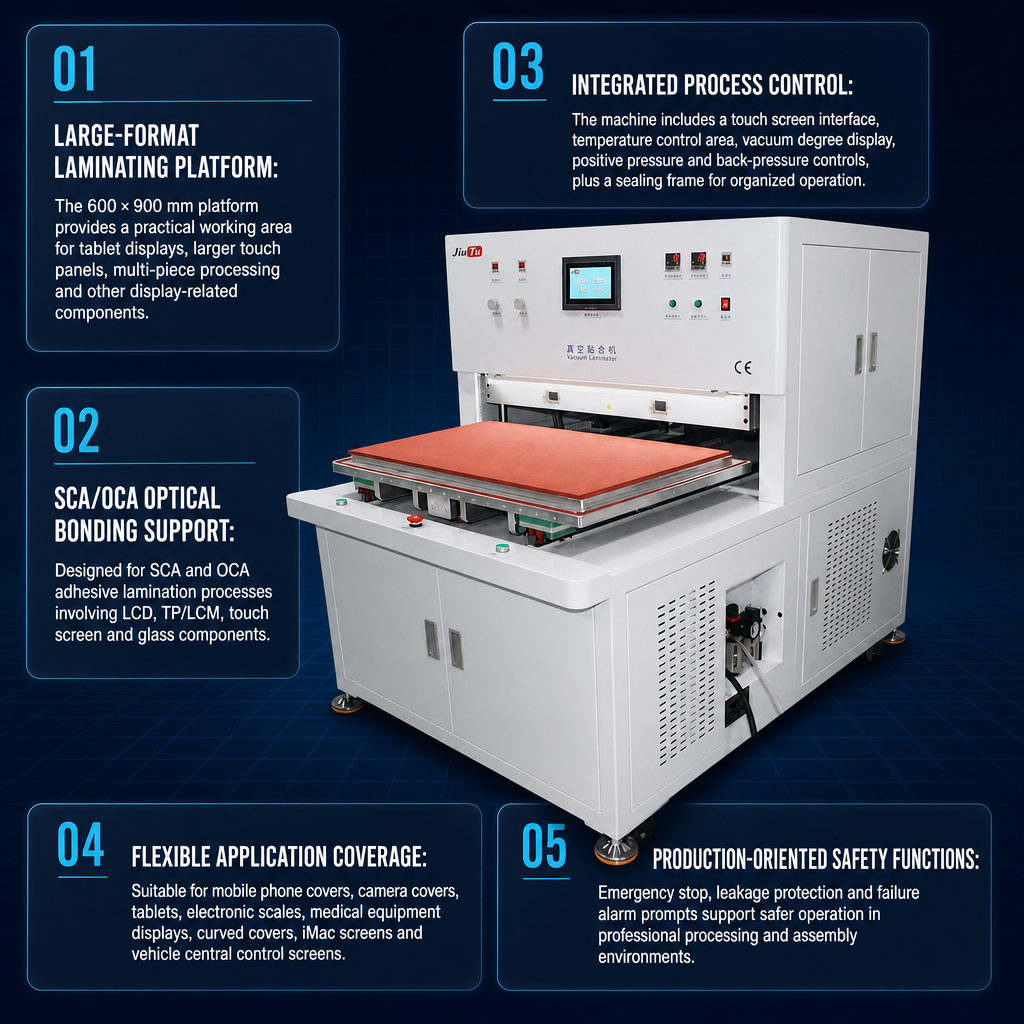

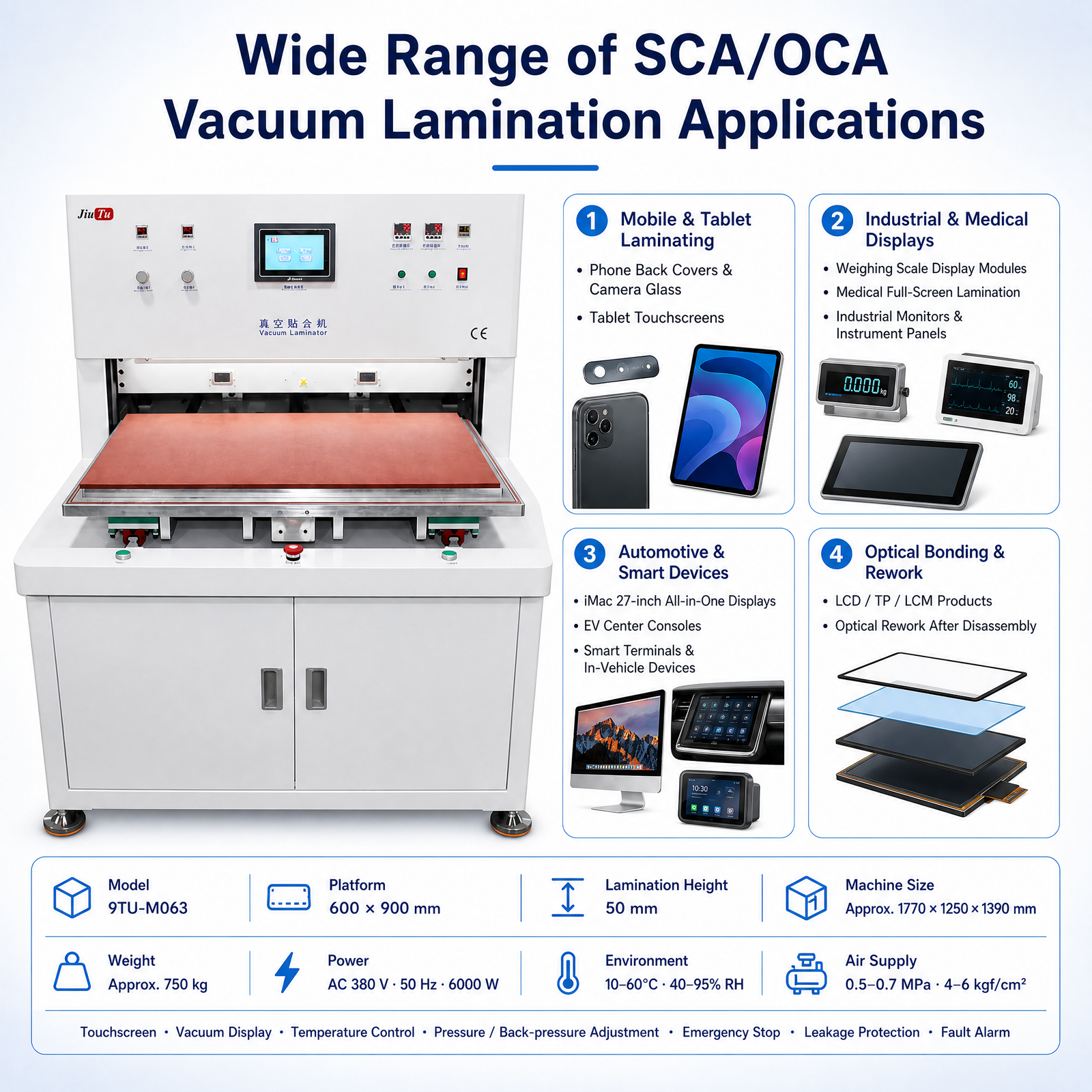

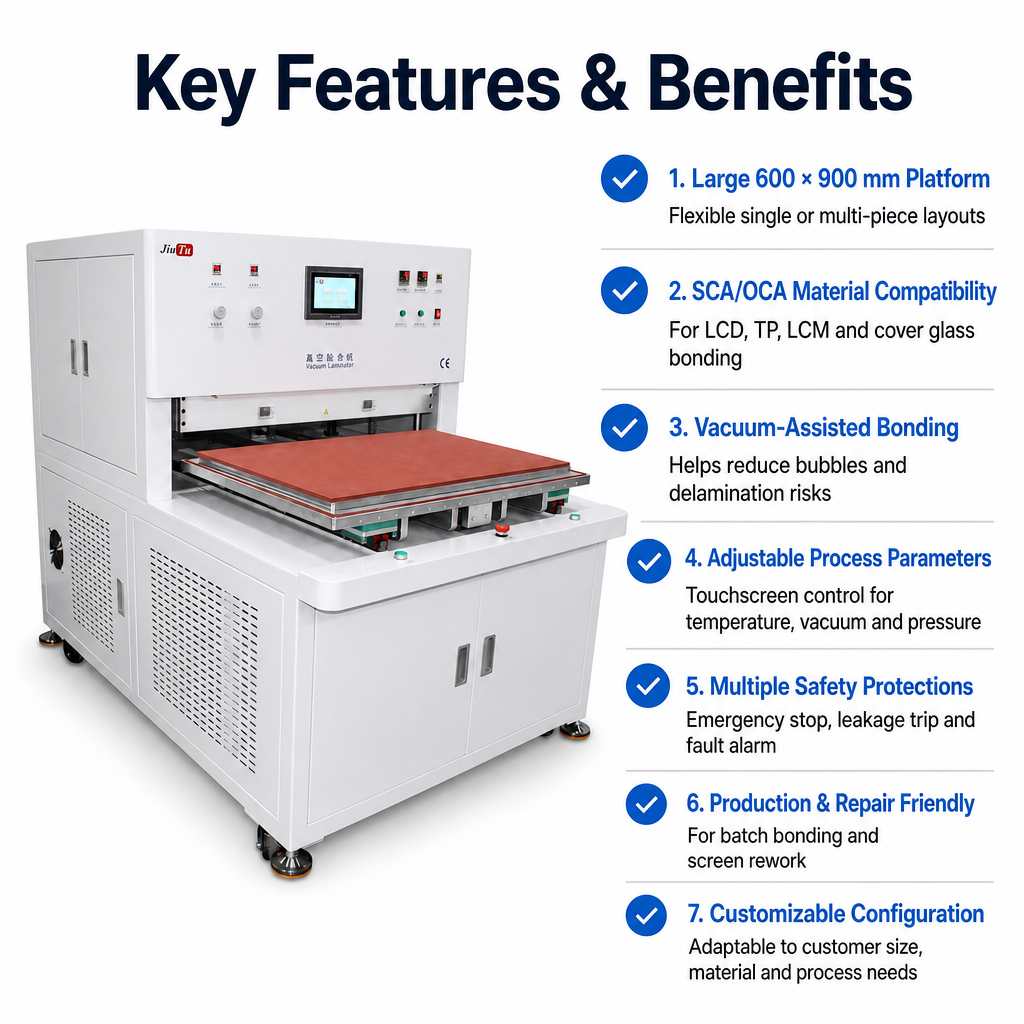

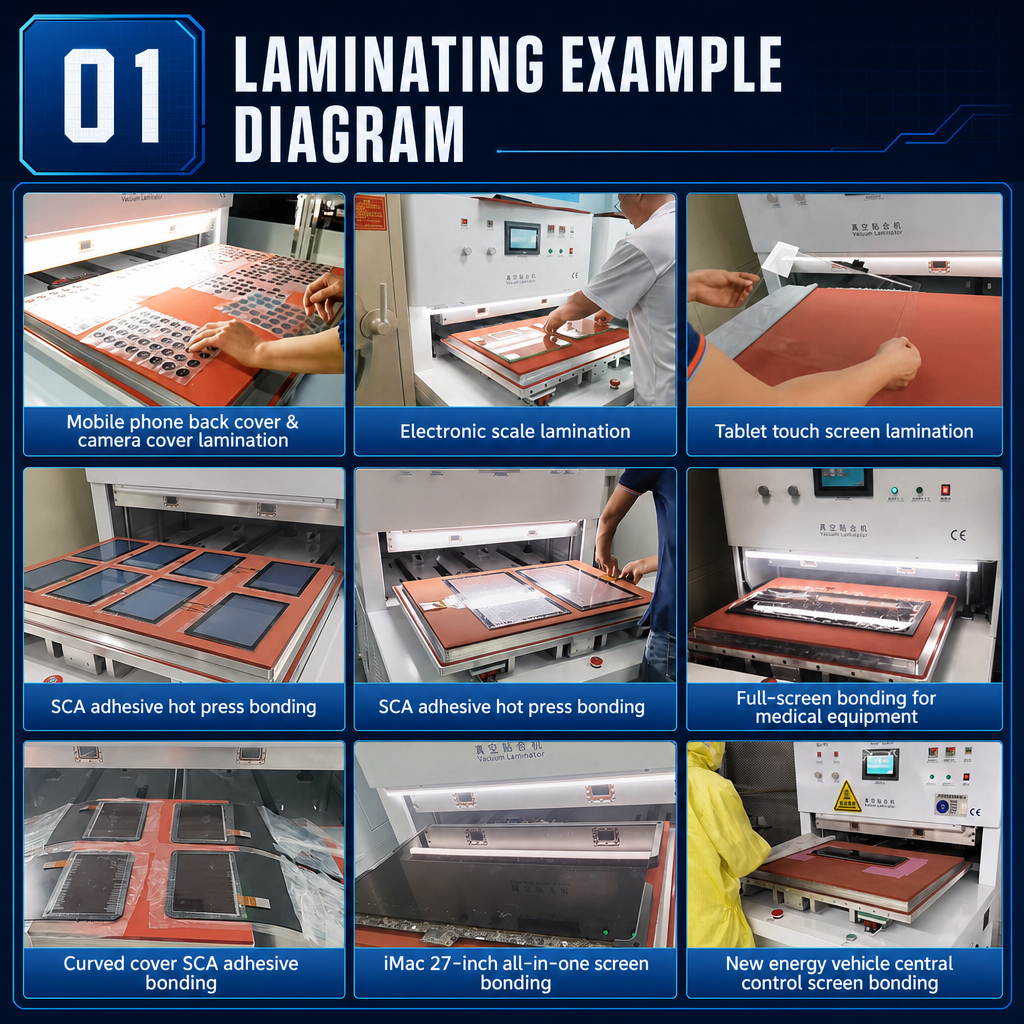

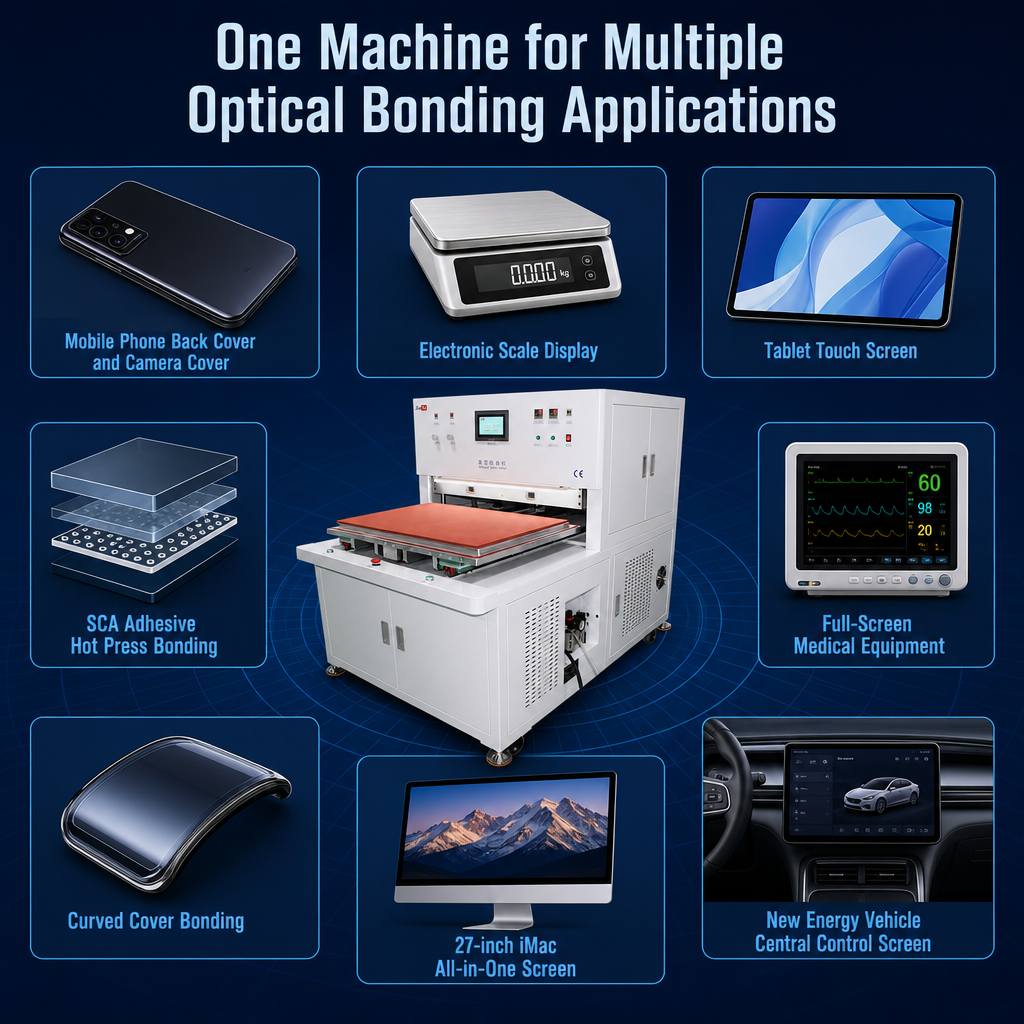

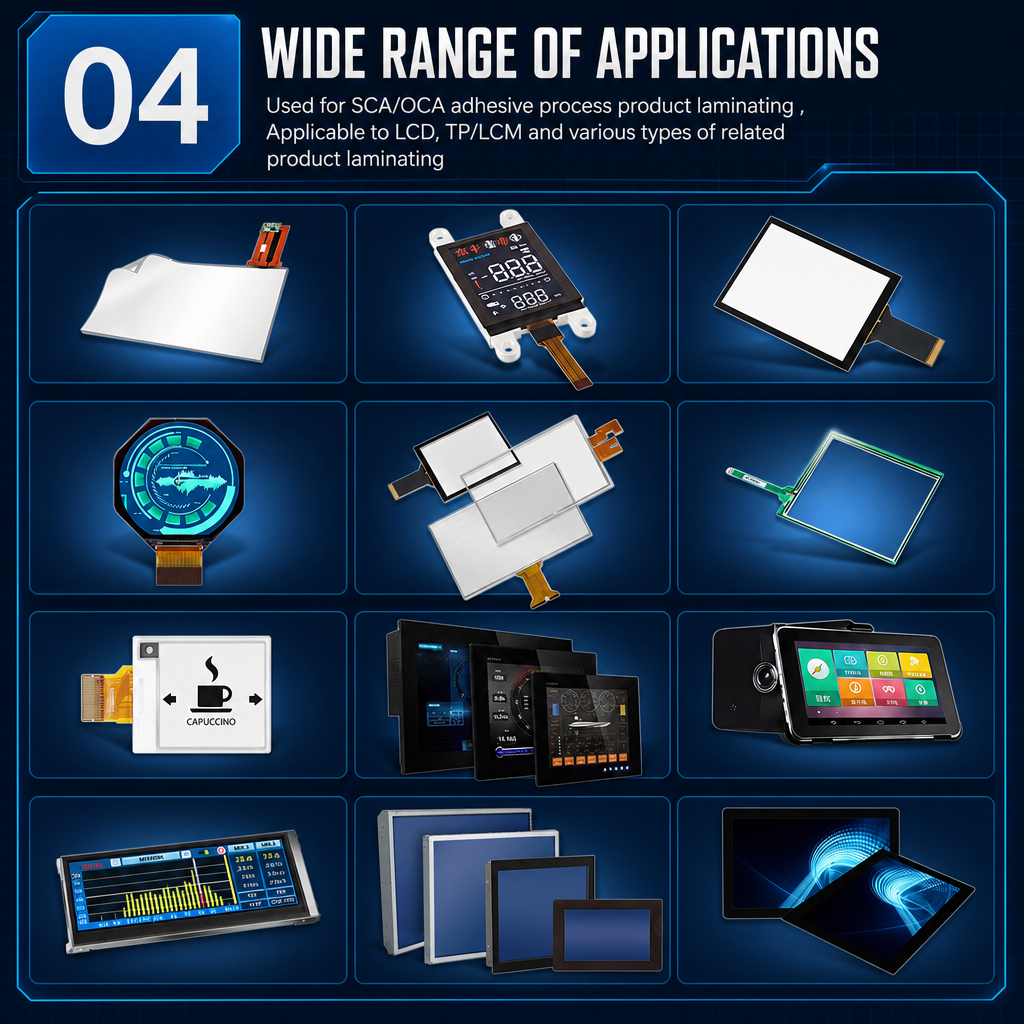

600X900 Vacuum laminating machine

Multi-Cylinder Press — 4,000 N × 5 or 6,000 N × 5 (Customisable) Multiple AirTac cylinders distributed across the platen deliver simultaneous, uniform pressure across the full 600 × 900 mm bonding area. This multi-point architecture prevents the pressure gradient problem inherent in single-cylinder presses applied to large panels — ensuring consistent adhesive compression from edge to edge and centre to corner, directly reducing delamination defects and improving lamination yield on large-format assemblies.

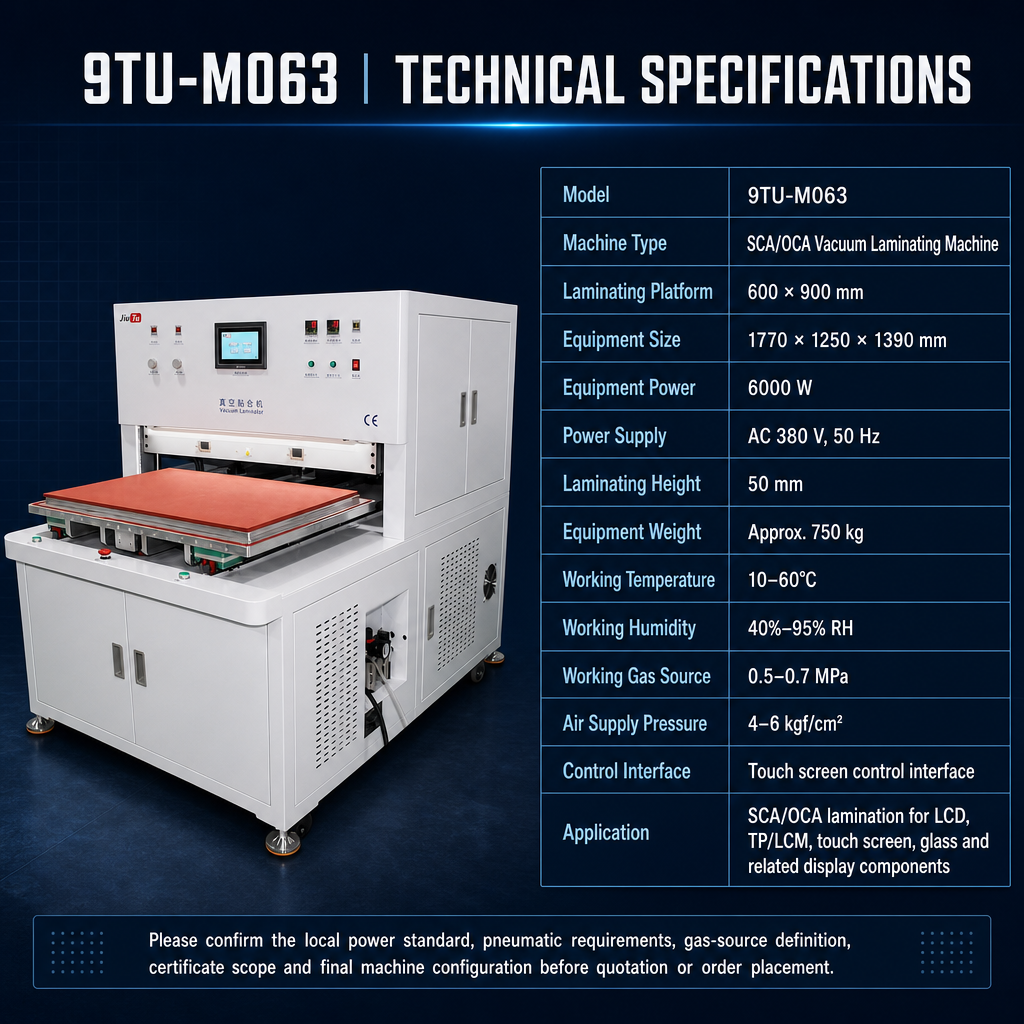

Three-Phase AC 380 V / 6,000 W — Industrial Power Supply Operating on three-phase AC 380 V, the 9TU-M063 draws 6,000 W to power the multi-cylinder press system and dual-zone heating simultaneously. Three-phase power provides stable, balanced load distribution — eliminating the voltage fluctuation risk of single-phase circuits under high simultaneous load that could otherwise cause inconsistent heating or erratic cylinder performance during production.

Japan Omron Dual-Zone Heating — ±2 °C Uniformity up to 100 °C Upper and lower platens are independently controlled by Japan Omron thermostat controllers. Temperature uniformity of ±2 °C across the 600 × 900 mm bonding surface ensures consistent SCA or OCA adhesive activation from end to end. The upper platen reaches 80 °C in approximately 17 minutes from cold start; operating range is room temperature to 100 °C (adjustable; customisable).

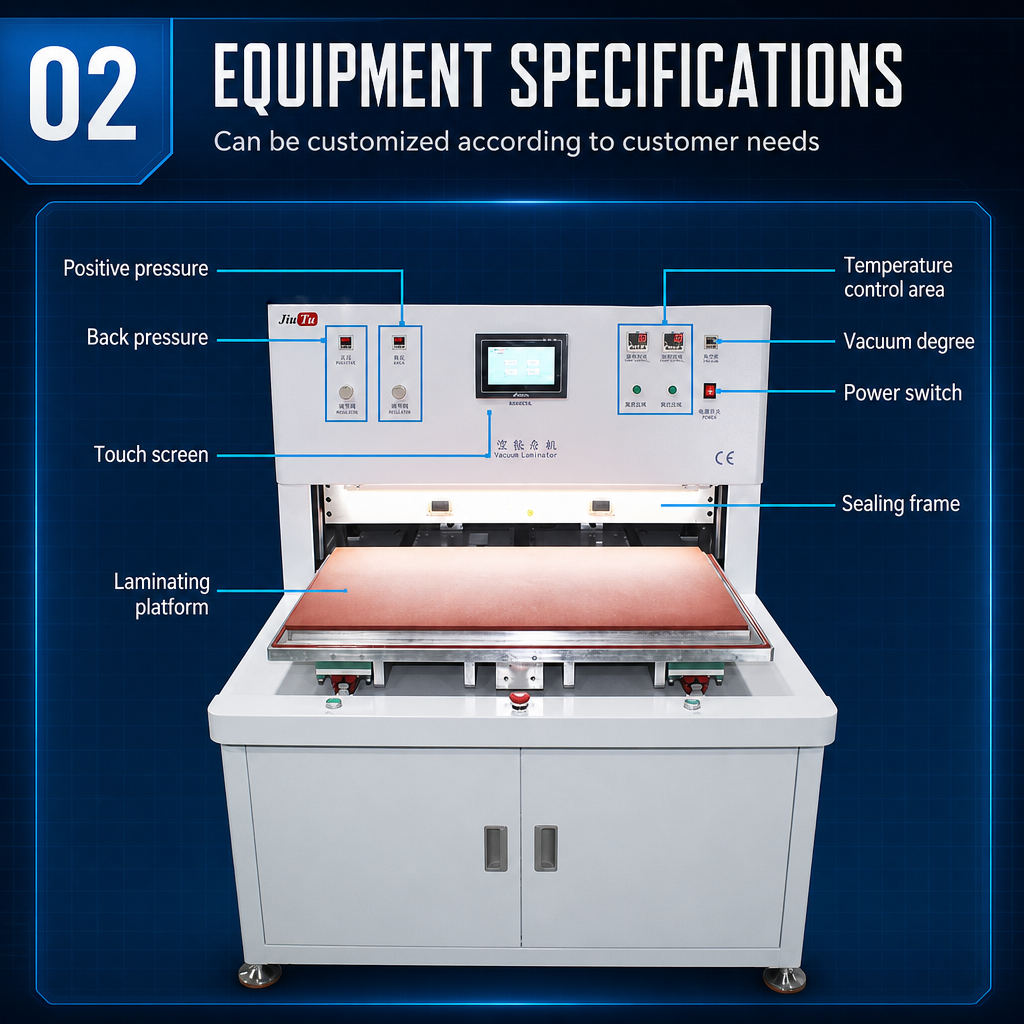

98 kPa Vacuum in ~20 Seconds — Scaled for Large Chamber Volume The larger sealed chamber evacuates to approximately -98 kPa in about 20 seconds. Three independent SMC digital gauges display positive press pressure, back pressure, and chamber vacuum simultaneously. An automatic alarm activates if the set vacuum level is not reached before the press cycle begins, preventing defective cycles before they start.

AirTac Precision Back-Pressure Regulation The back-pressure regulating valve provides controlled counter-force as the cylinders descend, ensuring smooth, balanced press contact with the display assembly surface. This prevents sudden-impact damage to large, thin-glass cover plates and distributes the press force evenly as contact area builds across the panel.

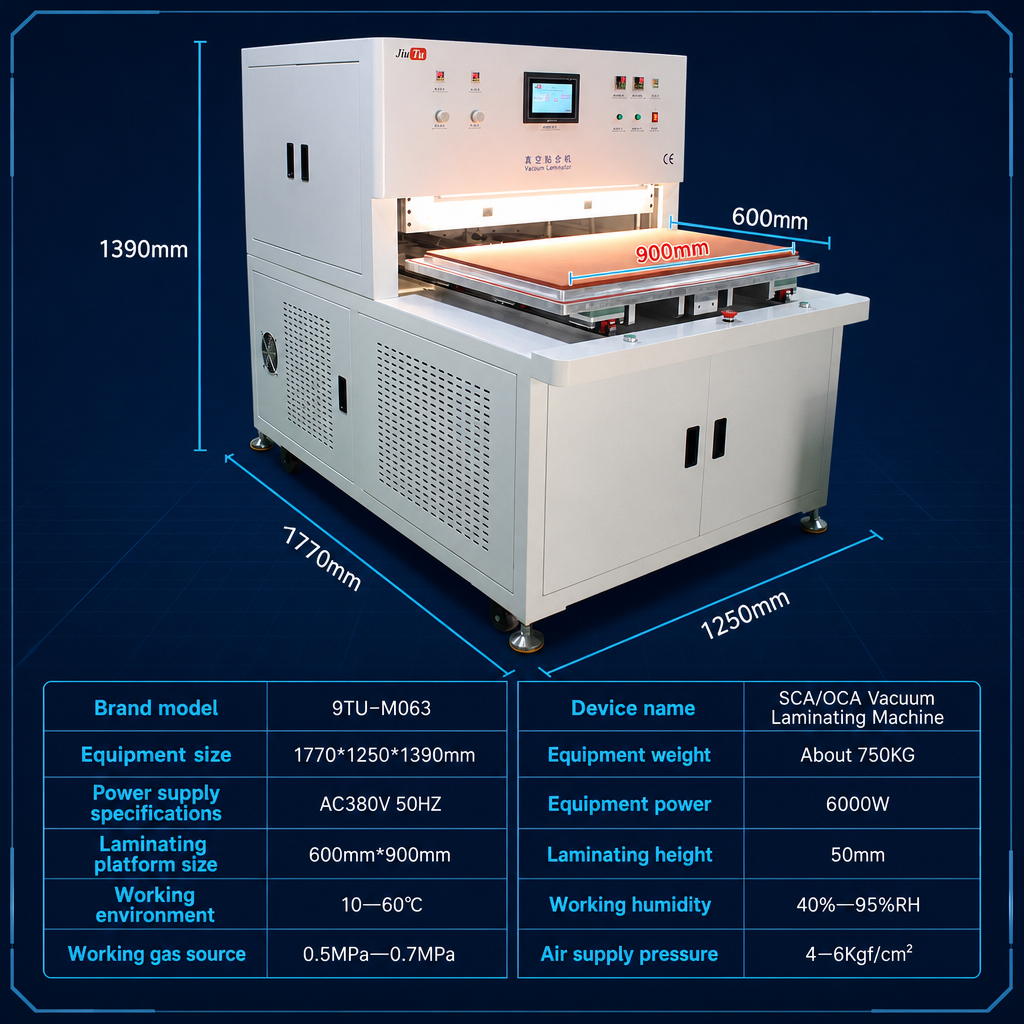

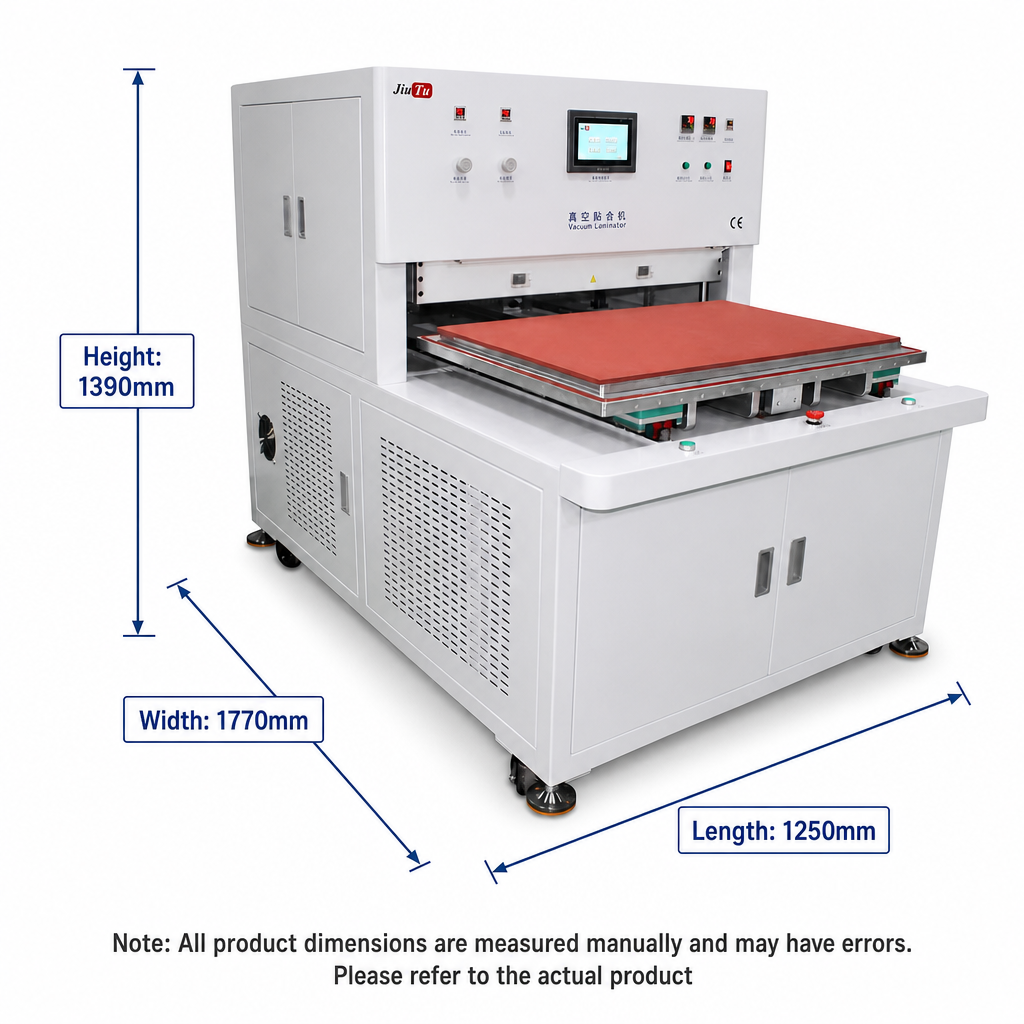

50 mm Bonding Height Clearance — Accommodates Thick Large-Format Assemblies The 50 mm clearance between the laminating platform and the fitting frame accommodates large display assemblies including full backlight modules, framed industrial panels, and multi-layer constructions typical of large HMI and digital signage screens.

Automatic Platform In/Out — 770 mm Ergonomic Work Height The laminating platform extends and retracts automatically under PLC control. The 770 mm work surface height supports comfortable standing operation during loading and unloading of large, heavy panel assemblies — reducing operator fatigue and handling errors during extended production shifts.

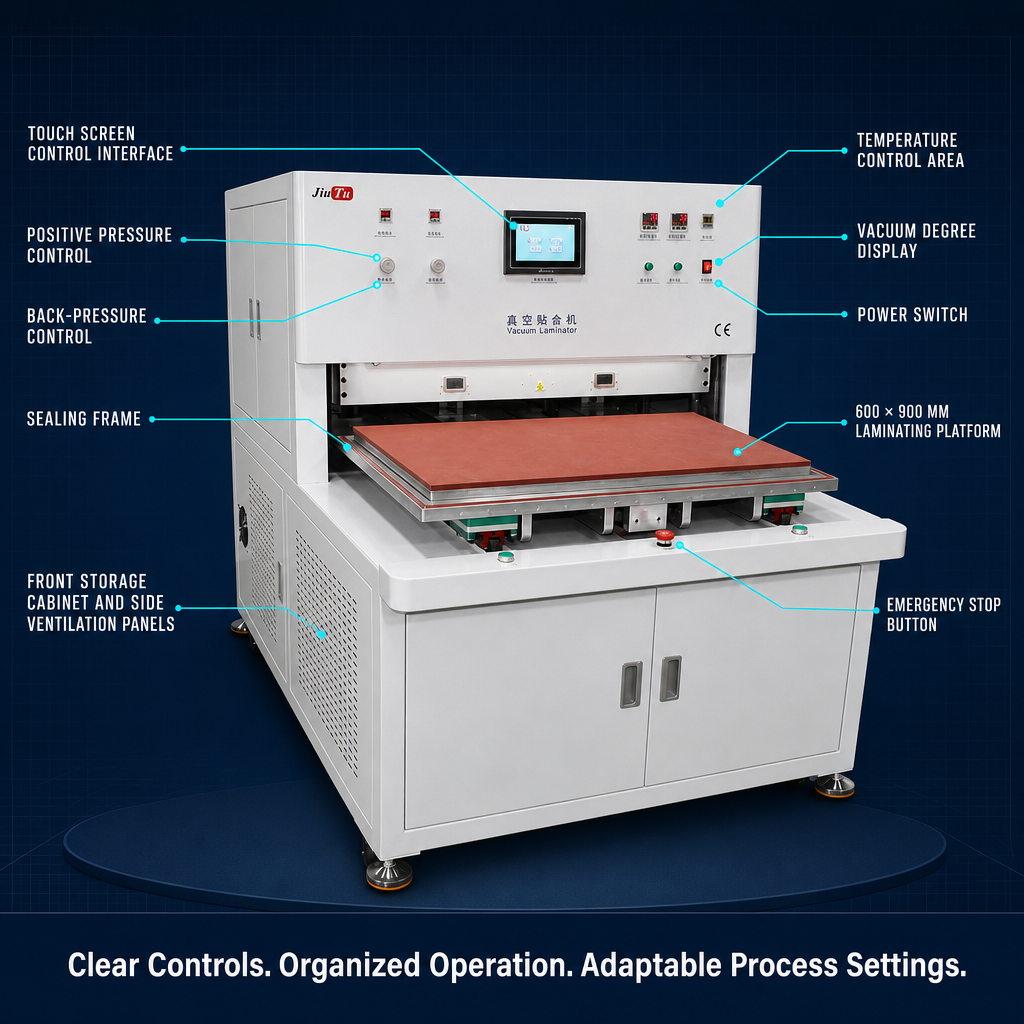

7-Inch PLC Touchscreen — Bilingual, Password-Protected A 7-inch colour touchscreen (Chinese/English switchable) provides access to all process parameters: vacuum time, aerate (press) time, decompression time, vacuum delay mode, and pressure-rise delay. Administrator password (9595) protects settings from unauthorised change in multi-shift production environments.

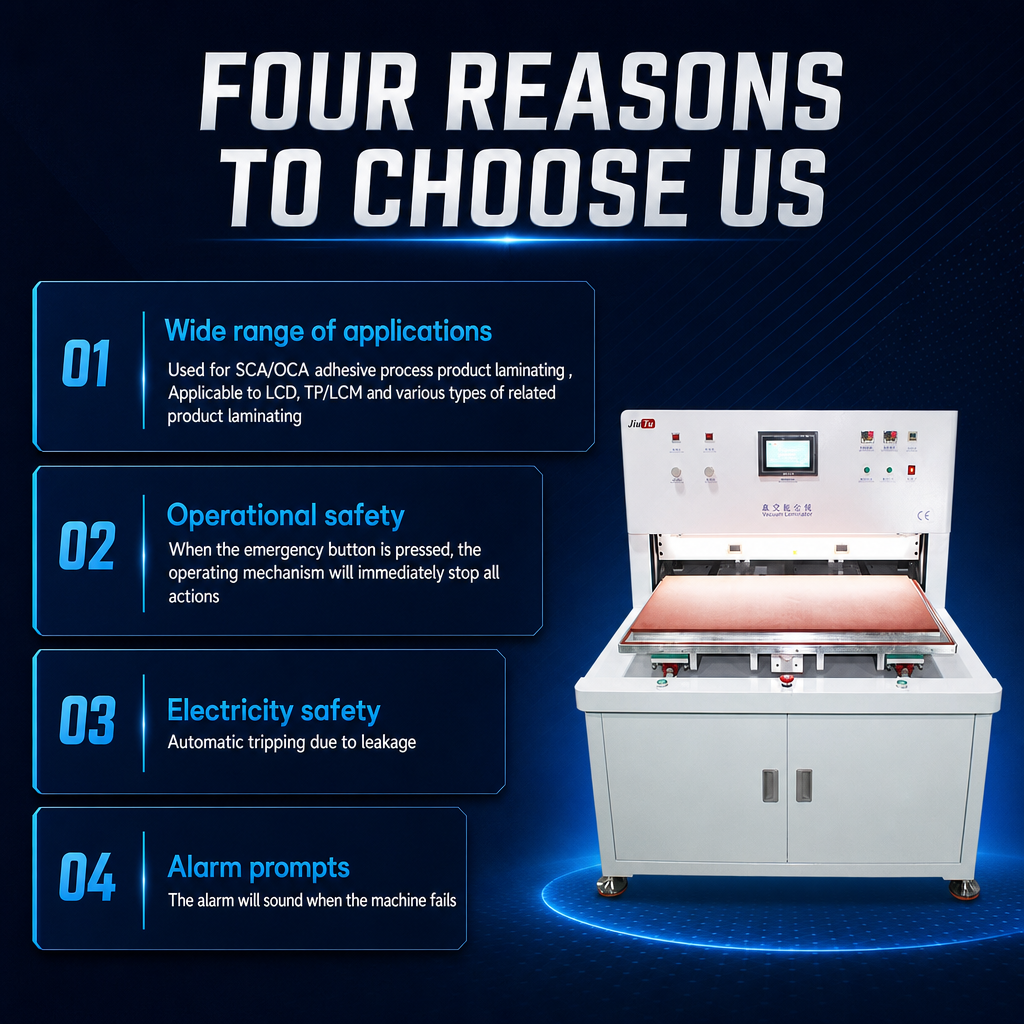

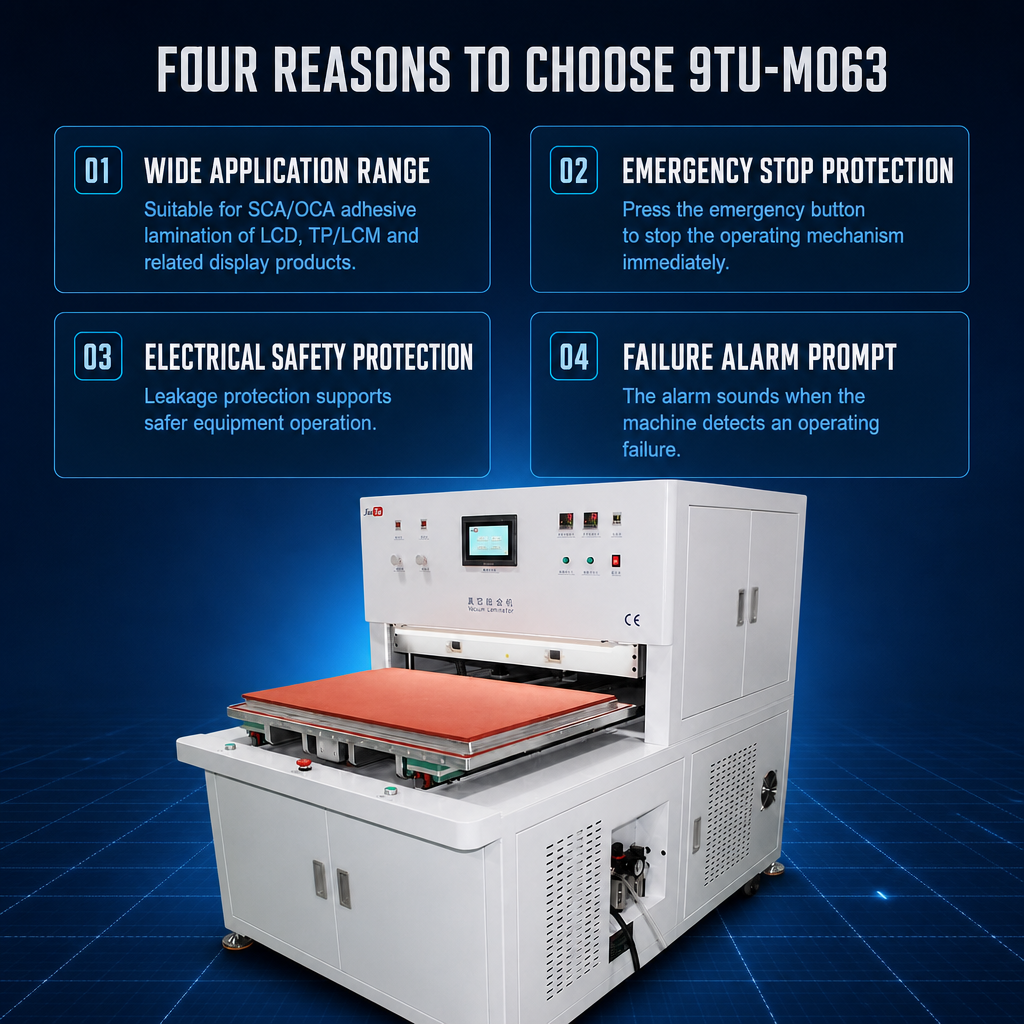

Complete Industrial Safety Architecture Emergency stop button (immediate full-stop of all mechanisms), buzzer alarm, residual current circuit breaker (CHINT automatic leakage tripping), dual-button start interlock, and optional safety grating (touch alarm, non-standard optional) — meeting standard industrial machinery safety requirements.

Industrial-Grade Component Specification Throughout All critical components sourced from recognised industrial brands: AirTac (cylinders, solenoid valves, pressure valves, oil-water filter, hydraulic damper), Omron (dual temperature controllers), SMC (all pressure gauges), HIWIN (guide rails), Mean Well (power supply), CHINT (residual current circuit breaker), Leino (vacuum pump), Erwei (pneumatic ball valve).
