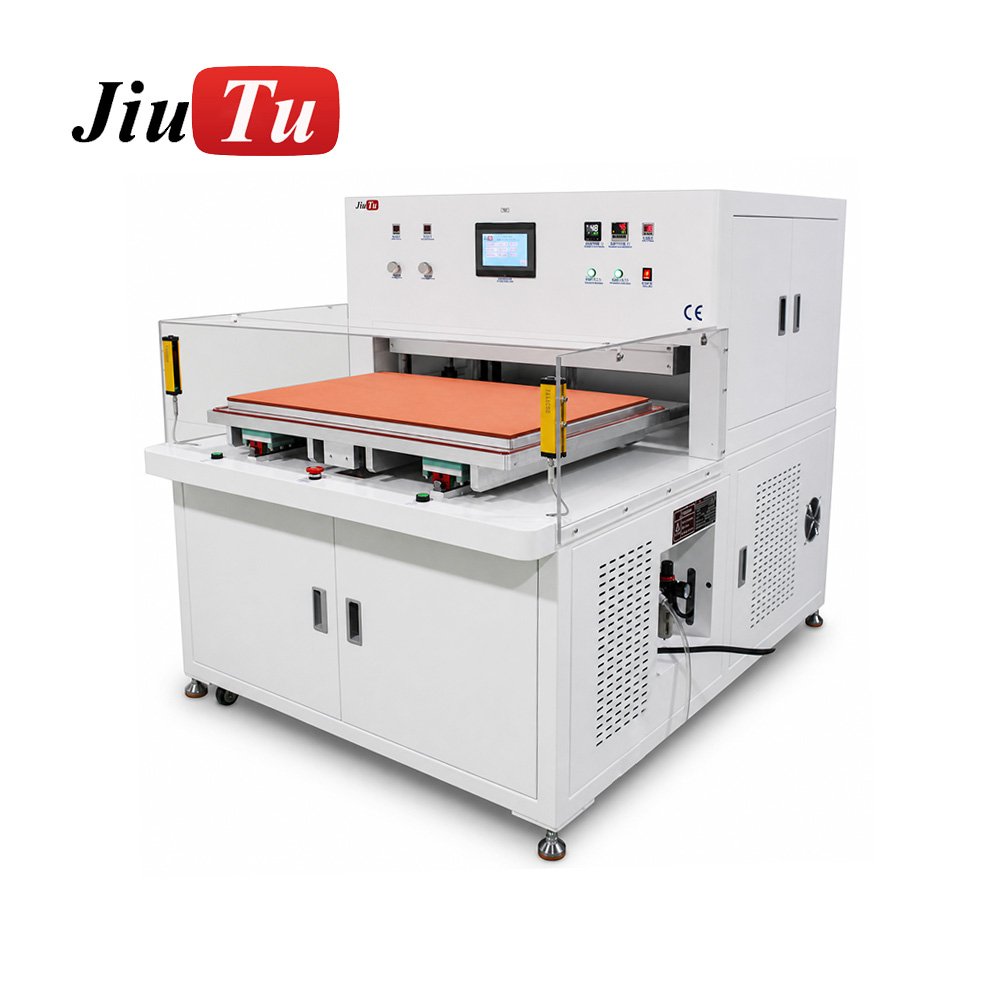

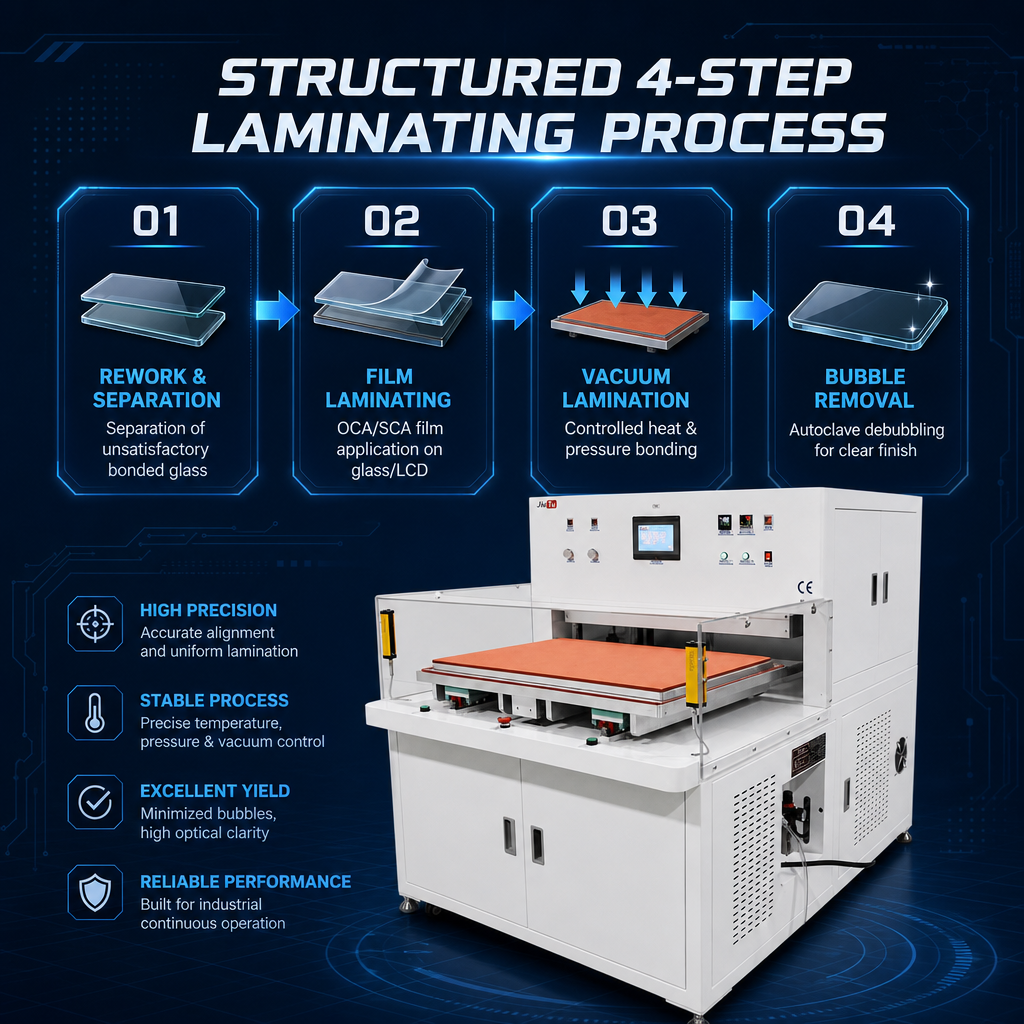

600×900 Laminating Machine with Light Curtain and Dust Cover

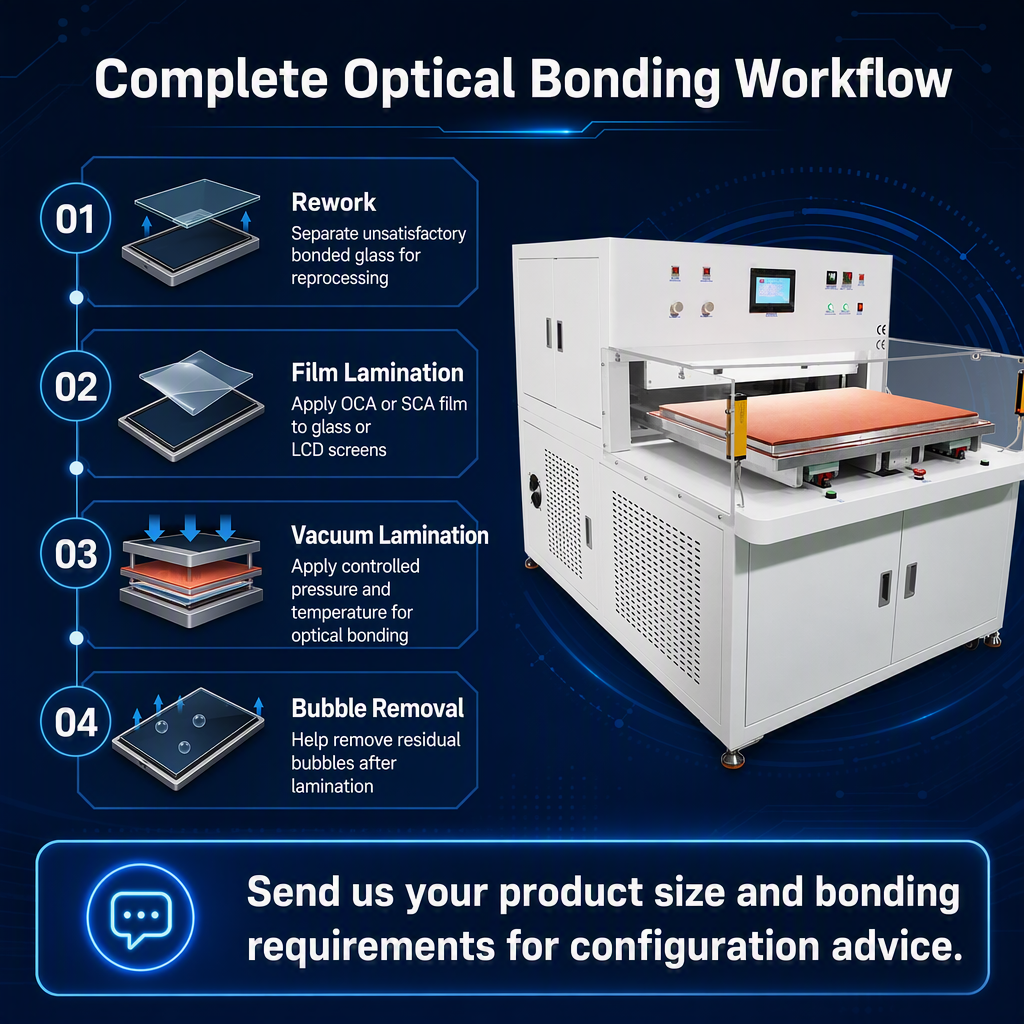

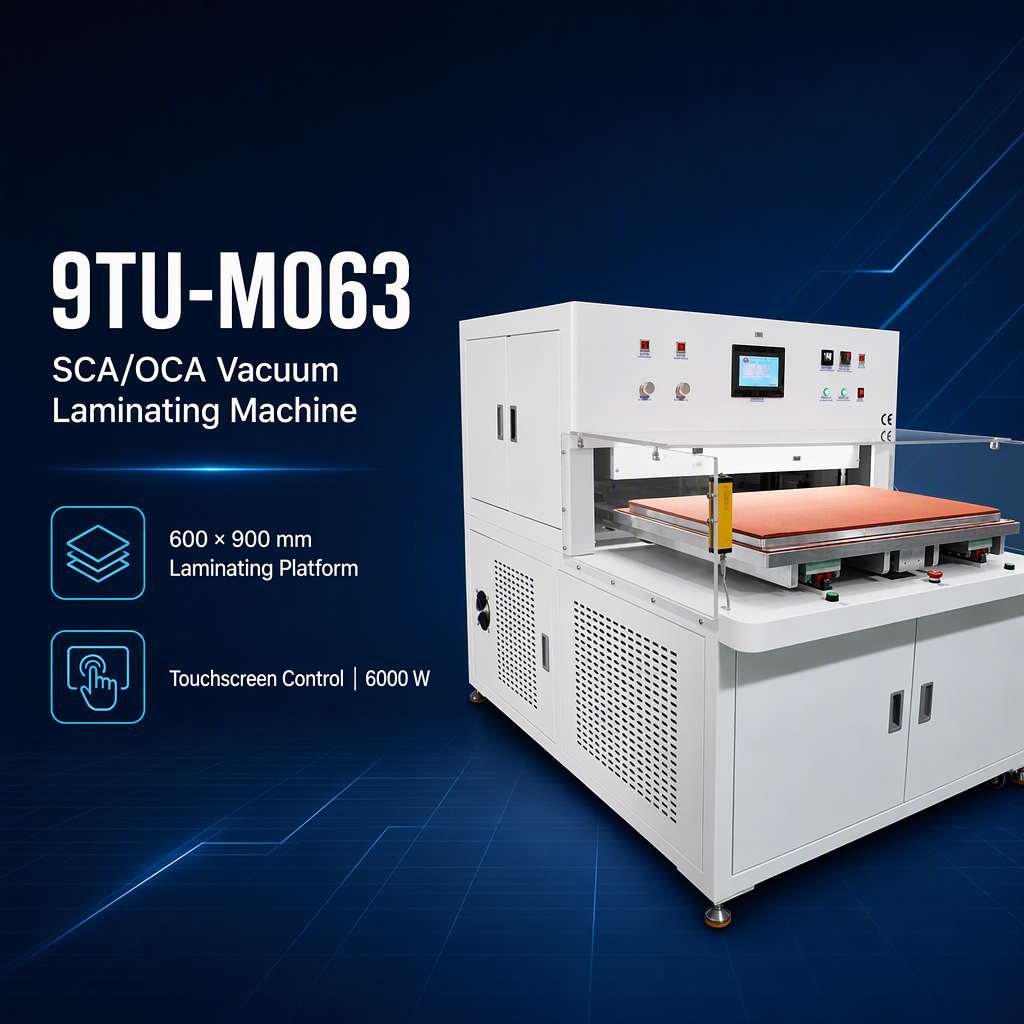

The 9TU-M063 is designed for vacuum thermal lamination of industrial display assemblies using compatible SCA or OCA adhesive systems.

Its loading platform moves outward to provide access for workpiece and fixture placement. Transparent panels surround the front work area on three sides, creating a physical barrier between the laminating zone and the surrounding workspace. These panels help limit direct dust entry but do not provide filtered airflow or a certified cleanliness level.

Yellow light-curtain sensors are installed on the left and right sides of the loading zone. The supplied product materials indicate that entry into the protected area triggers a machine stop. The required reset method and restart behavior must be confirmed from the approved electrical and control specification.

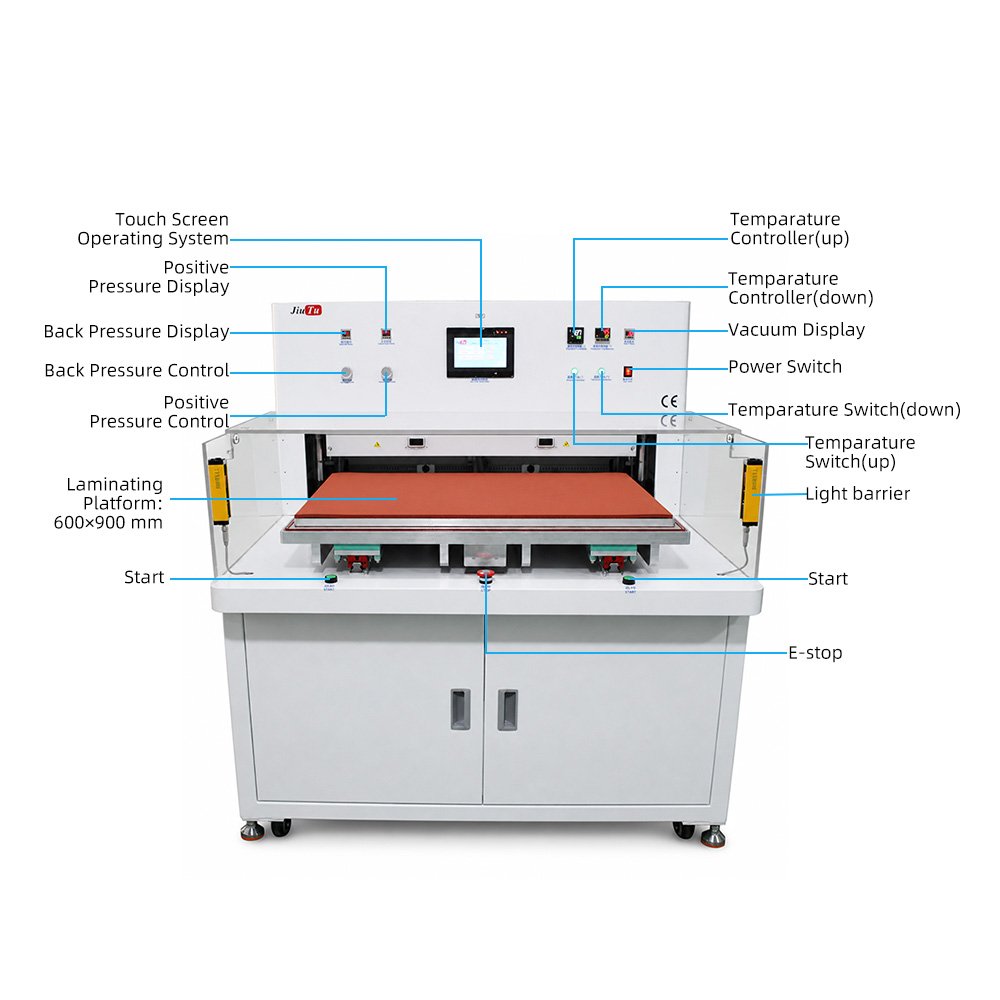

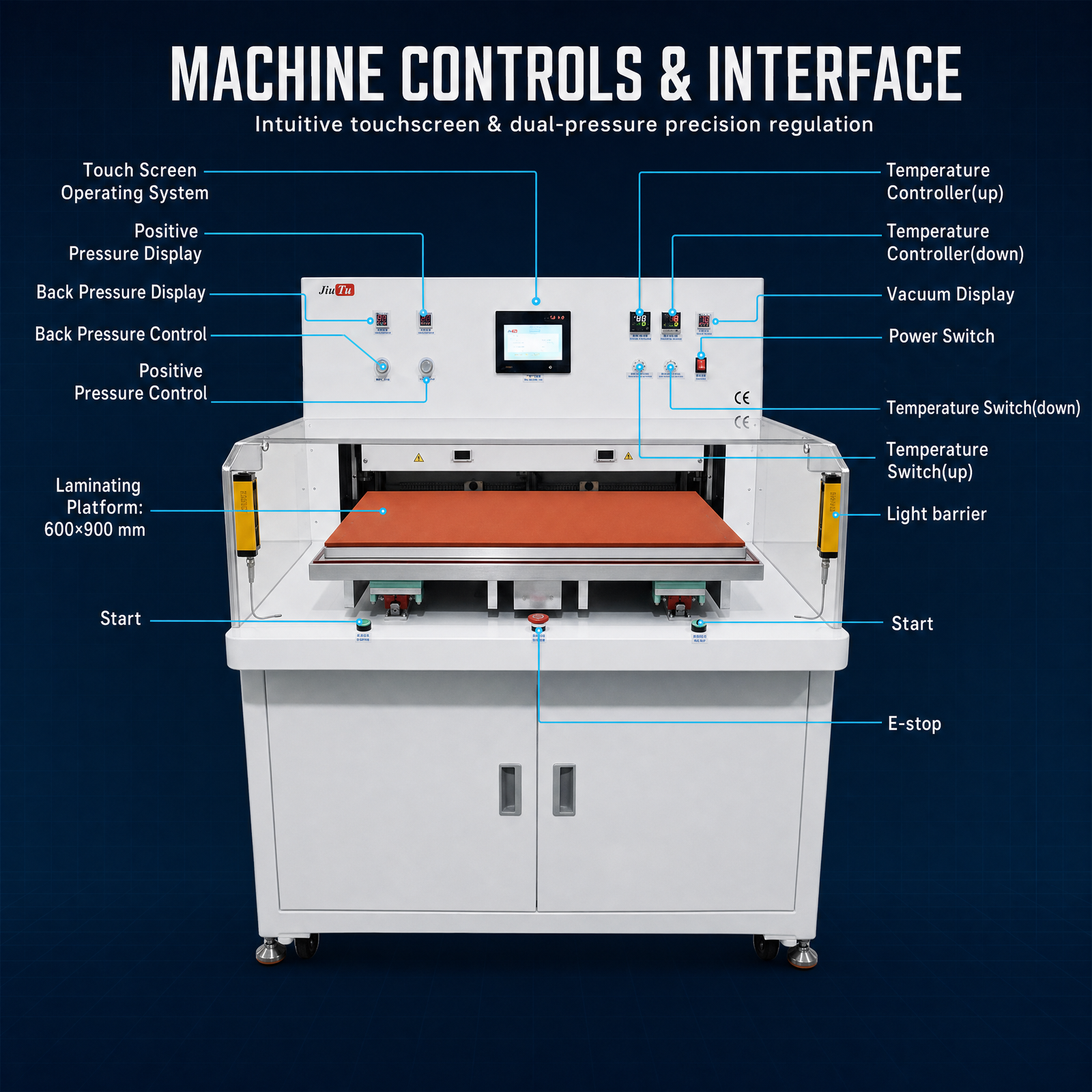

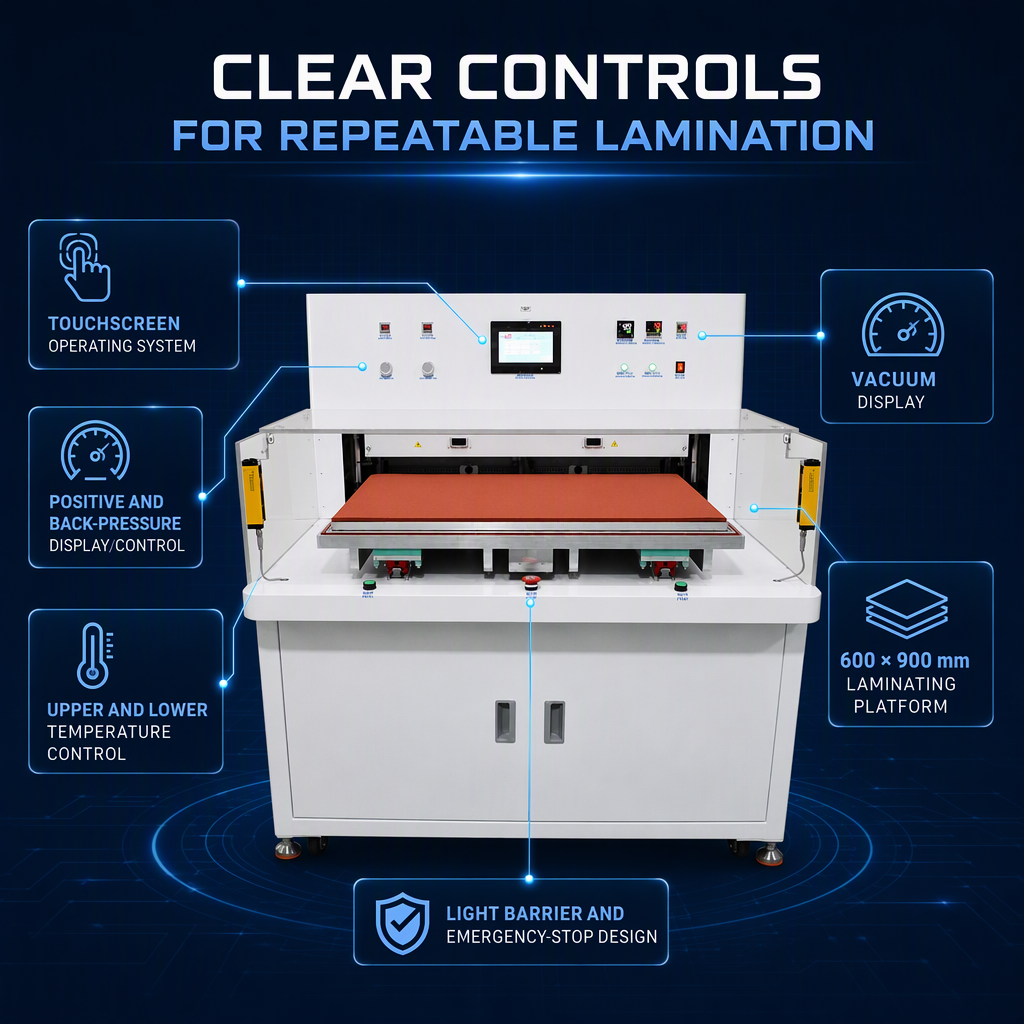

The front panel combines a PLC touchscreen, positive-pressure display, back-pressure display, separate pressure controls, independent upper and lower temperature controllers, vacuum display and power controls. Dual start buttons and a centrally positioned emergency stop complete the operator interface.

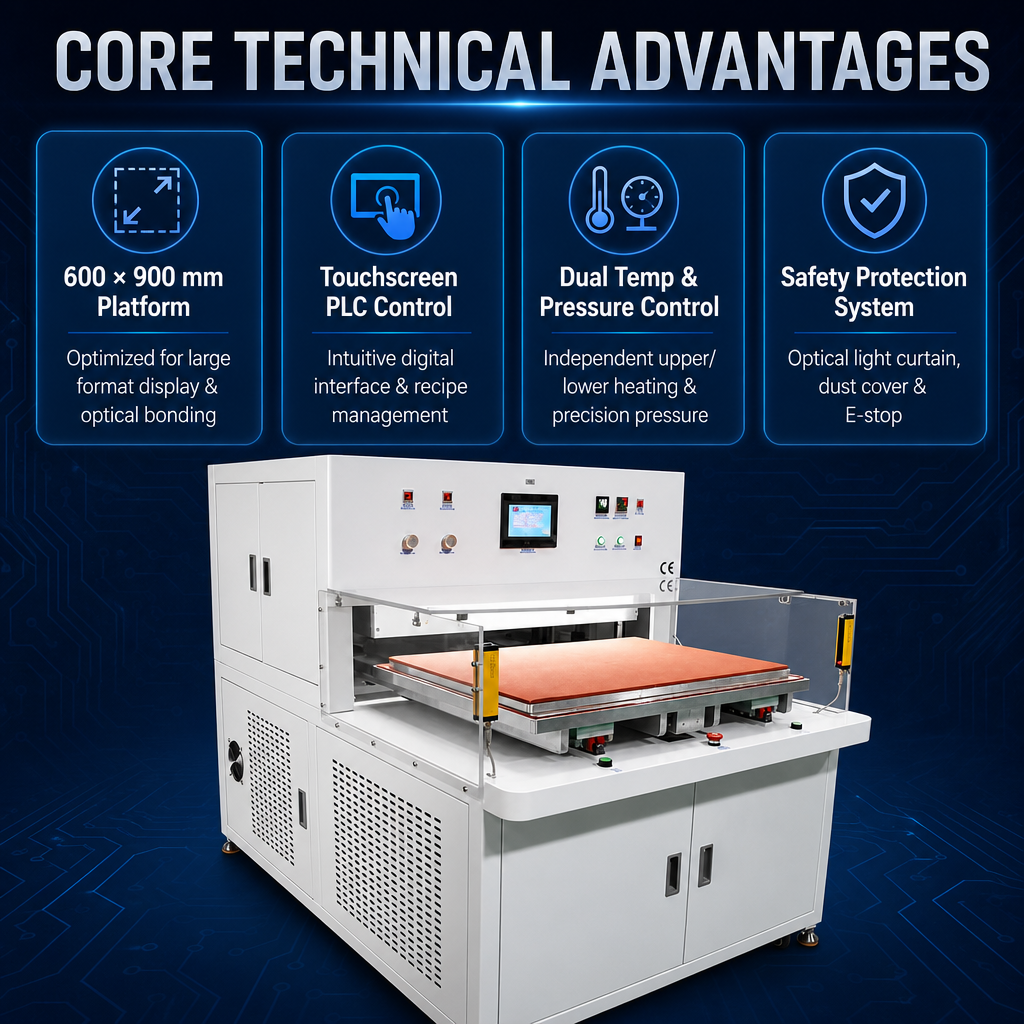

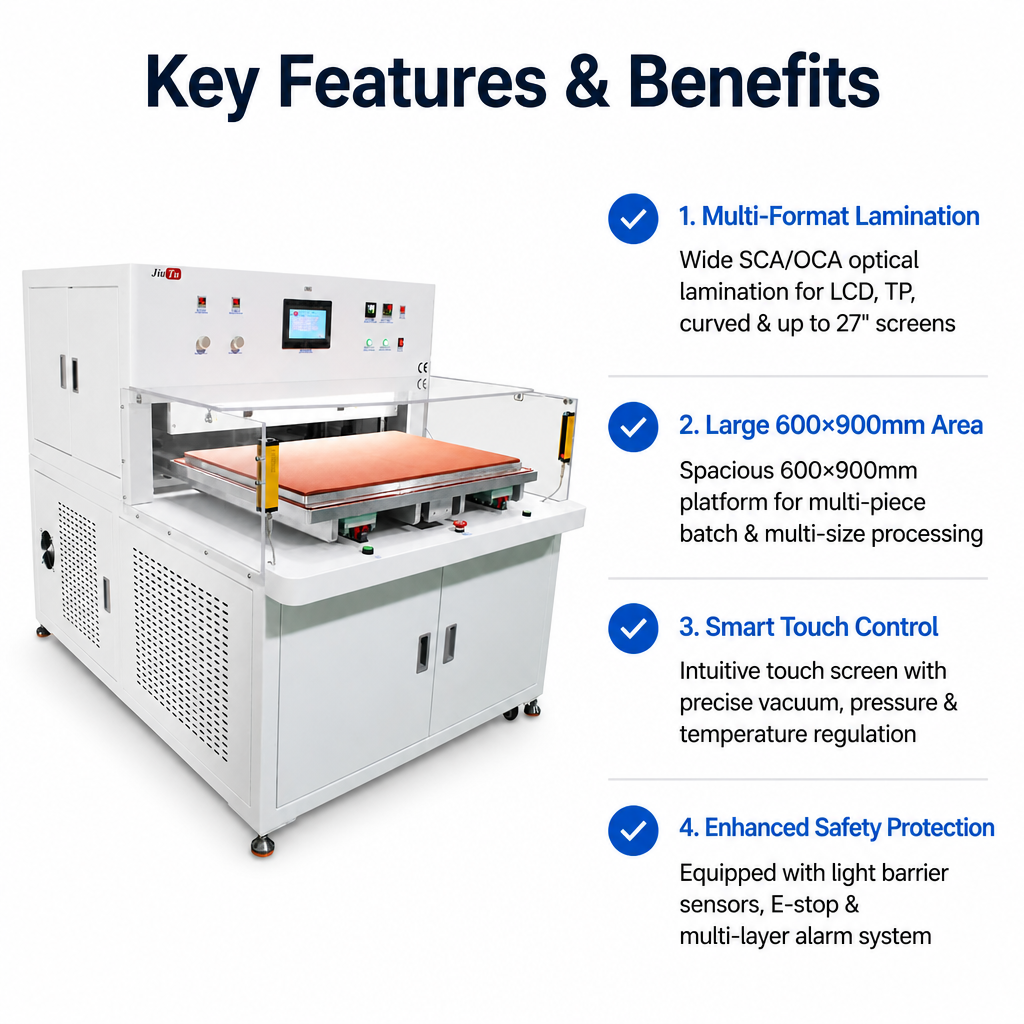

Key Features

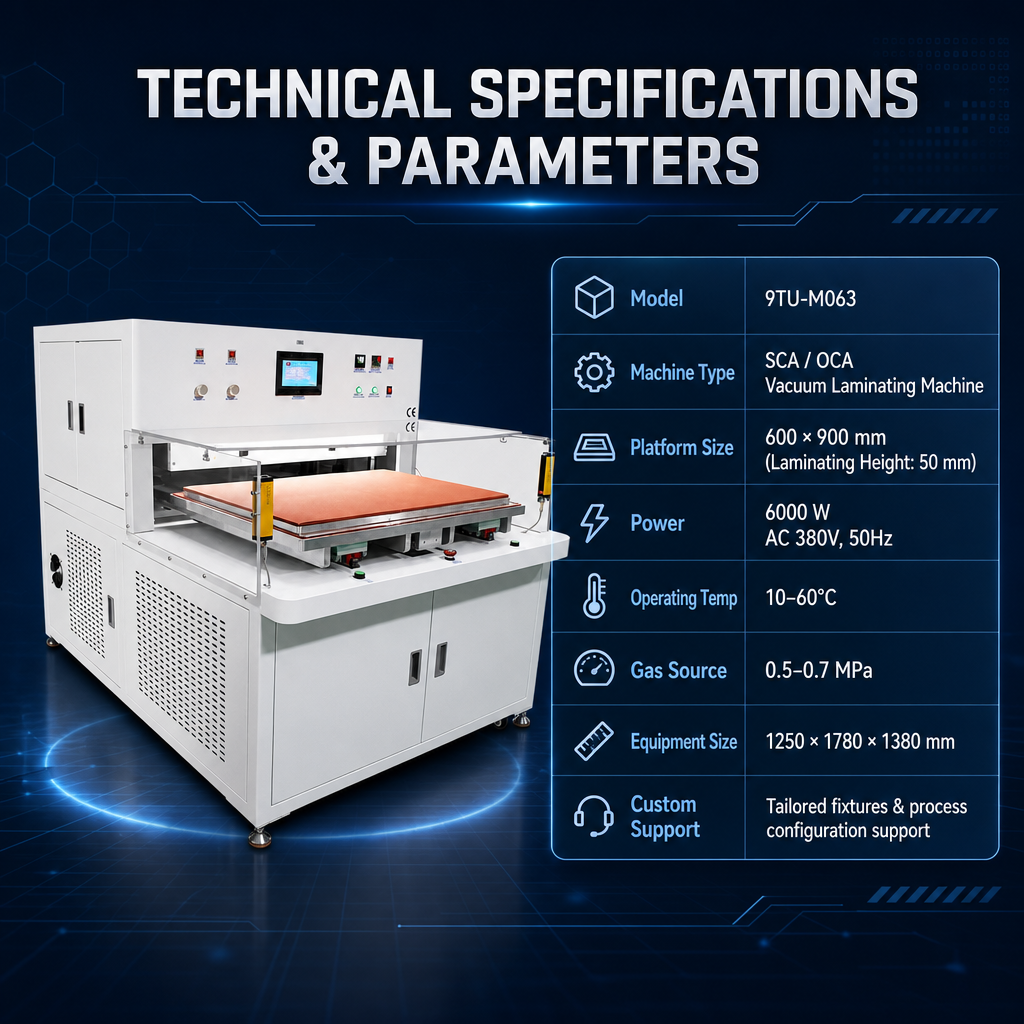

1. 600 × 900 mm Laminating Platform
The confirmed laminating-platform size is 600 × 900 mm.

Buyer benefit: Supports compatible automotive displays, industrial HMI assemblies, medical displays and other medium-to-large display modules.

2. 50 mm Laminating Height
The published processing height is 50 mm.

Buyer benefit: Provides clearance for compatible display stacks, carriers and bonding fixtures within the validated working area.

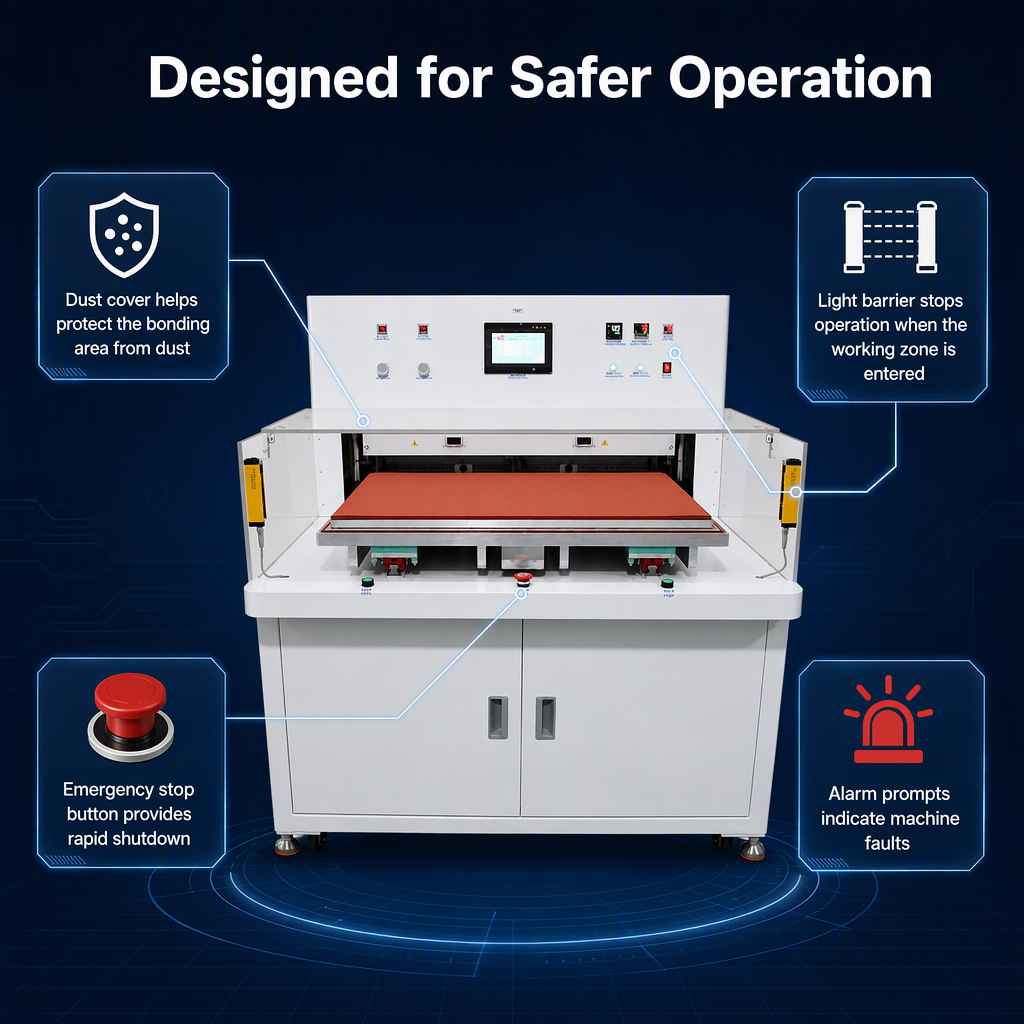

3. Bilateral Light Curtains
Light-curtain sensors are installed on both sides of the open loading area.

Buyer benefit: The sensing zone helps detect access to the active platform area and supports a controlled safety stop.

Reset and restart behavior must be confirmed for the final control configuration.

4. Transparent Three-Sided Dust Cover
Transparent panels shield the left, right and upper sides of the loading zone.

Buyer benefit: The cover helps reduce direct dust exposure while retaining visibility of the workpiece and platform.

This cover is not an FFU, filtered enclosure or certified clean environment.

5. Independent Upper and Lower Temperature Control
Separate controllers and switches are provided for the upper and lower heating zones.

Buyer benefit: Each zone can be adjusted independently according to the approved material stack and adhesive process.

6. Positive-Pressure and Back-Pressure Adjustment
The control panel includes separate displays and controls for positive pressure and back pressure.

Buyer benefit: Operators can monitor and adjust the pneumatic circuit according to the validated bonding recipe.

7. Vacuum Monitoring
A dedicated vacuum display is installed on the front control panel.

Buyer benefit: Chamber condition can be observed during the vacuum laminating sequence.

8. PLC Touchscreen Interface
The machine uses a touchscreen for operation and parameter entry.

Buyer benefit: Main operating functions are consolidated in one interface for production setup and monitoring.

9. Dual-Hand Start and Emergency Stop
Two front start controls are positioned on opposite sides of the operating area, with an emergency stop at the center.

Buyer benefit: The control layout encourages safer cycle initiation and provides an accessible emergency shutdown control.

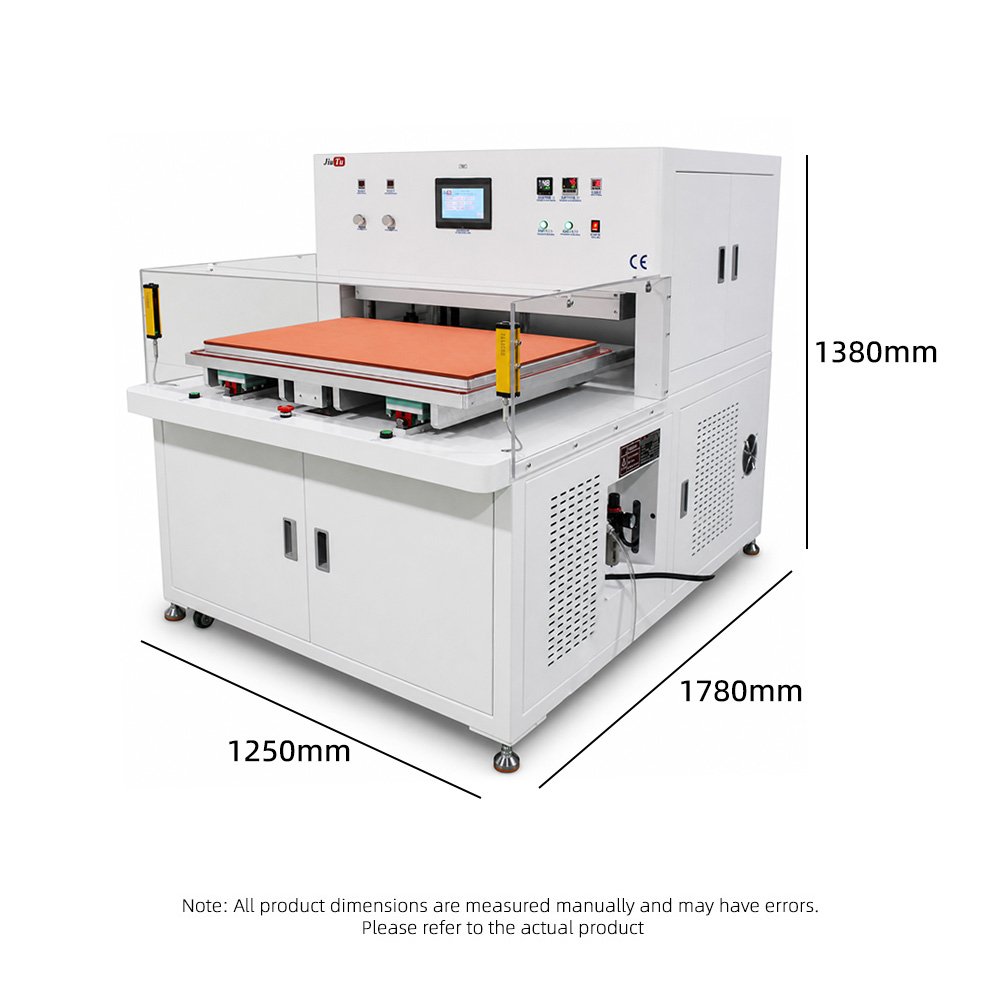

10. Industrial Cabinet Structure
The machine uses an enclosed cabinet, ventilated side panels, casters and adjustable leveling feet.

Buyer benefit: The unit can be positioned during factory layout preparation and stabilized before production use.

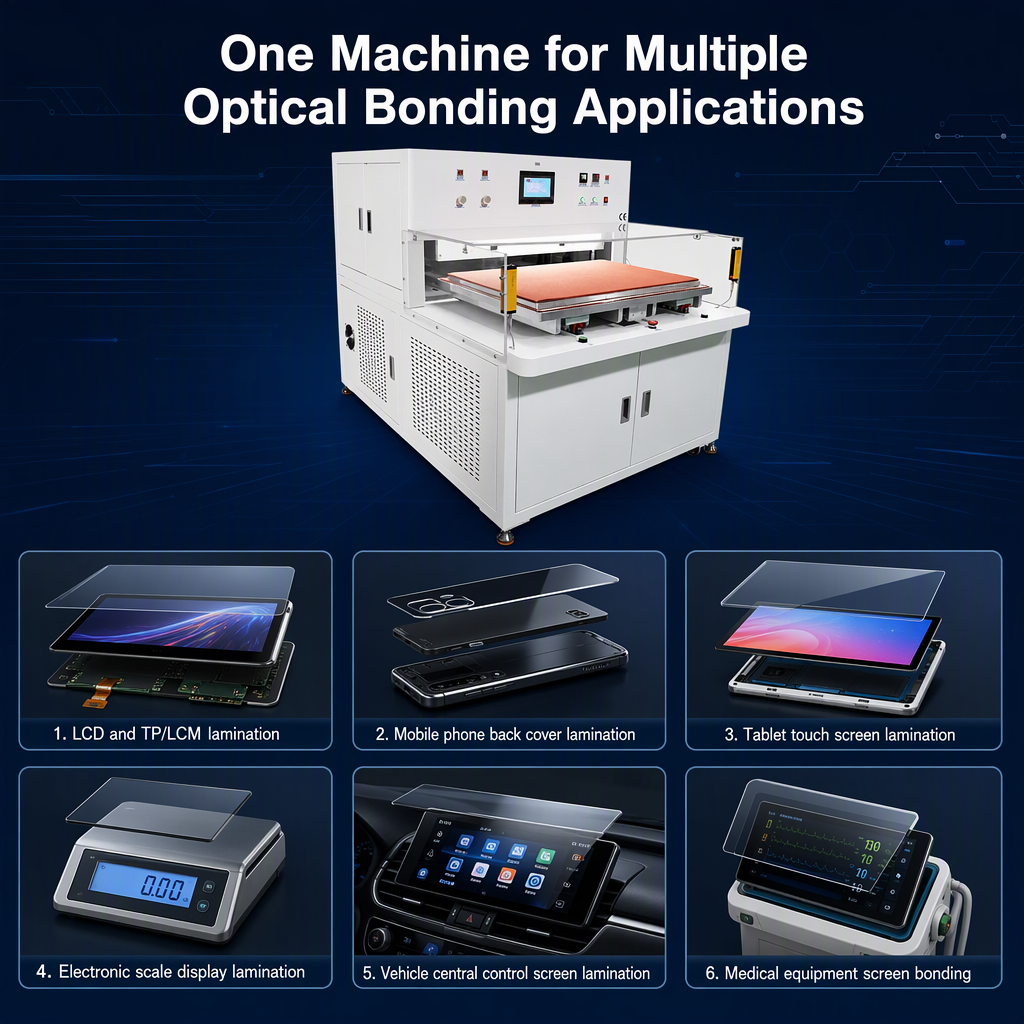

Why Choose Us

SCA adhesive lamination
OCA adhesive lamination
Soft-to-hard optical bonding
Hard-to-hard optical bonding
TP and LCM lamination
LCD display-module lamination
Flat display bonding
Curved display bonding, subject to fixture review

Final suitability depends on the display stack, adhesive, fixture, temperature, pressure, vacuum sequence and sample validation.

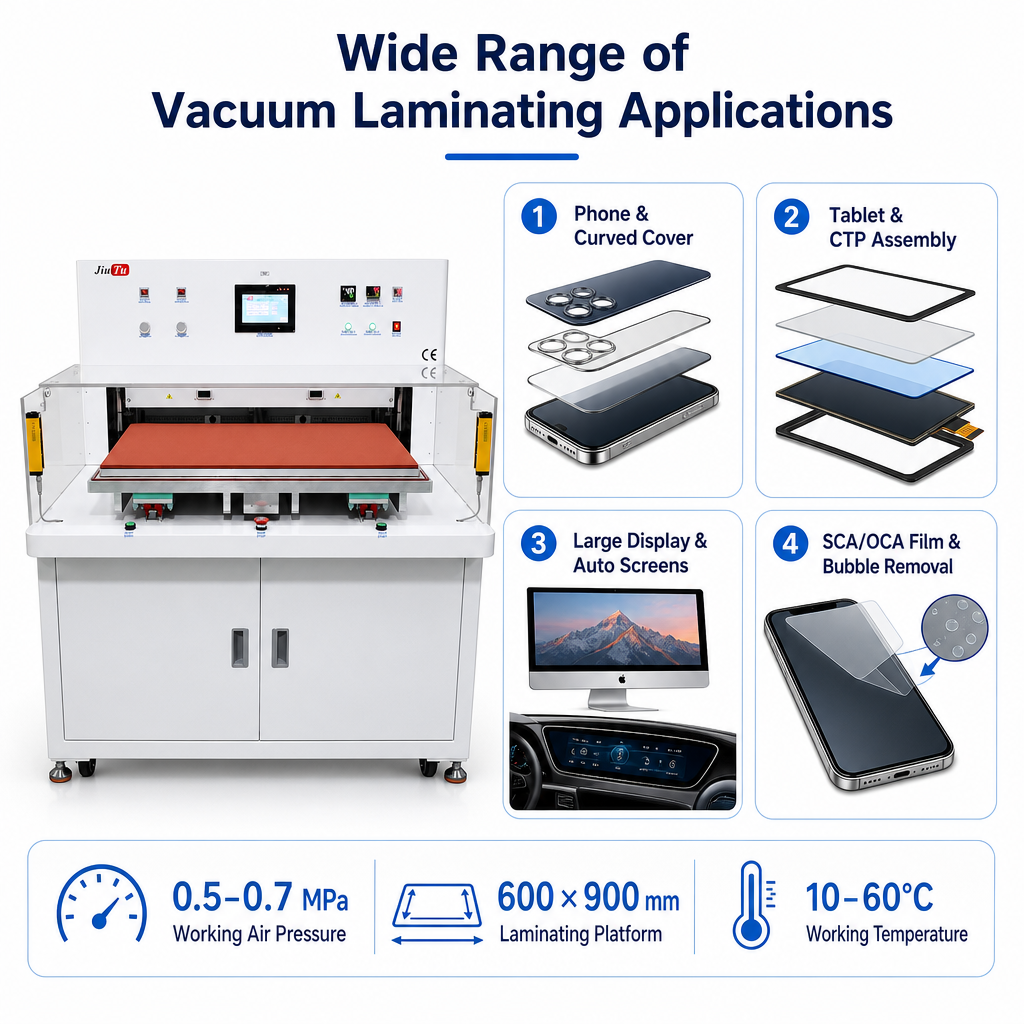

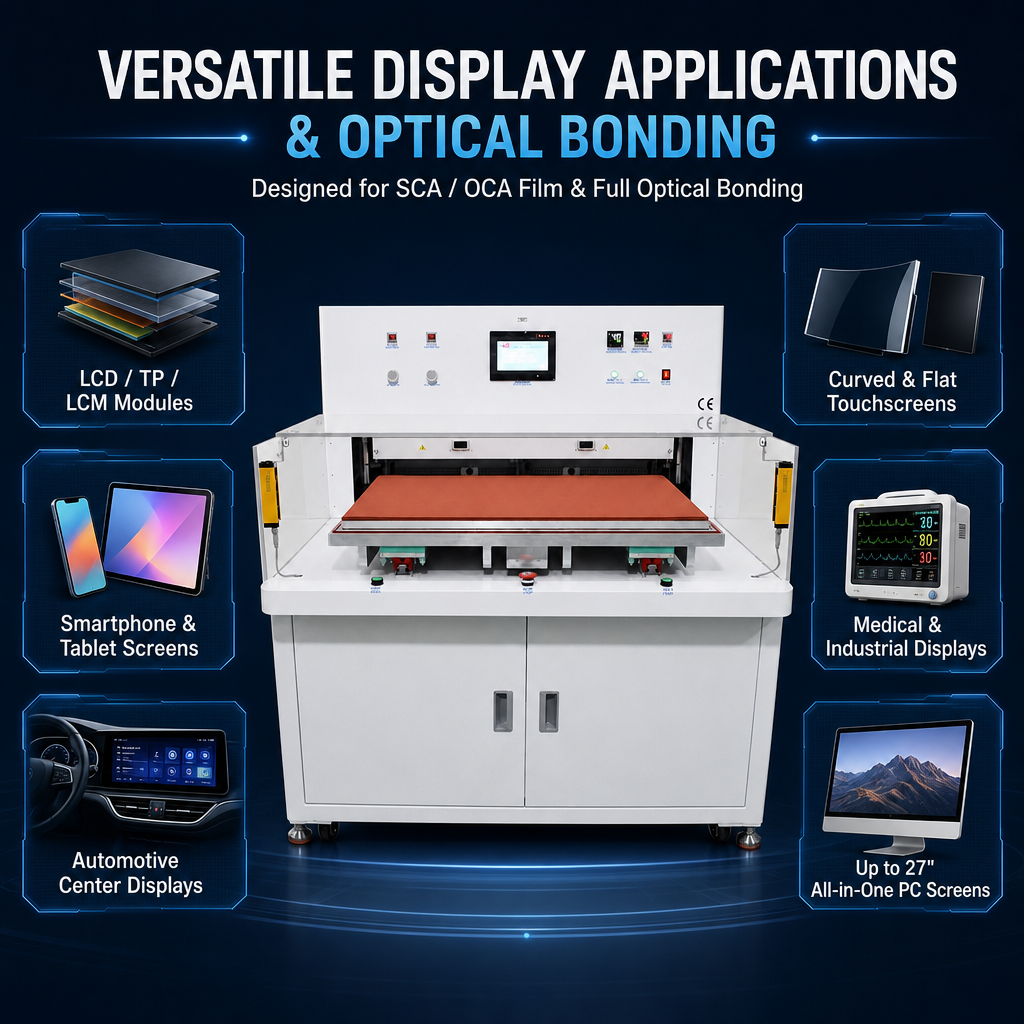

Target Industrial Applications

Automotive Displays
Center-console displays
Curved dashboard displays
Multi-screen cockpit assemblies
In-vehicle information displays
Industrial Interfaces
Human-machine interfaces
Industrial touch panels
Embedded control displays
Marine information displays
Smart-meter displays
Medical and Commercial Displays
Medical monitor assemblies
Diagnostic-equipment displays
Commercial information panels
All-in-one display modules
Large touch-display assemblies
Process Development
Optical-bonding process validation
Adhesive-stack evaluation
Fixture development
Pilot production
Display-module process trials

Key Features

FAQ

Q1. What is the laminating-platform size?

The confirmed platform size is 600 × 900 mm. This is the usable laminating area, not the exterior machine size.

Q2. What is the available laminating height?

The published laminating height is 50 mm. The combined display stack and fixture must remain within the approved process clearance.

Q3. What is the purpose of the light curtains?

The light curtains monitor access to the active loading zone. The supplied materials indicate that entering the protected area triggers a machine stop.

Q4. What does the transparent dust cover do?

The cover provides physical shielding around the loading area and helps reduce direct dust entry while preserving visibility.

Q5. Are the upper and lower temperatures controlled independently?

Yes. Separate controllers and switches are shown for the upper and lower heating zones.

Q6. How is pressure controlled?

The control panel includes positive-pressure and back-pressure displays and adjustment controls. The numerical process-pressure range remains subject to confirmation.

Q7. Which adhesive processes can be evaluated?

The supplied materials identify SCA and OCA lamination. Final compatibility depends on the selected adhesive, display structure and validated process parameters.

Q8. Can it process curved displays?

Curved structures can be evaluated when a compatible fixture and validated pressure distribution are available.

Q9. What applications are suitable?

Potential uses include automotive displays, HMI panels, industrial touch displays, medical monitors and large display modules. Final suitability requires sample validation.

Q10. What information is needed for a quotation?

Provide the display dimensions, layer structure, adhesive, thickness, geometry, fixture, temperature, pressure, vacuum, accuracy, dust-control and cycle requirements.
