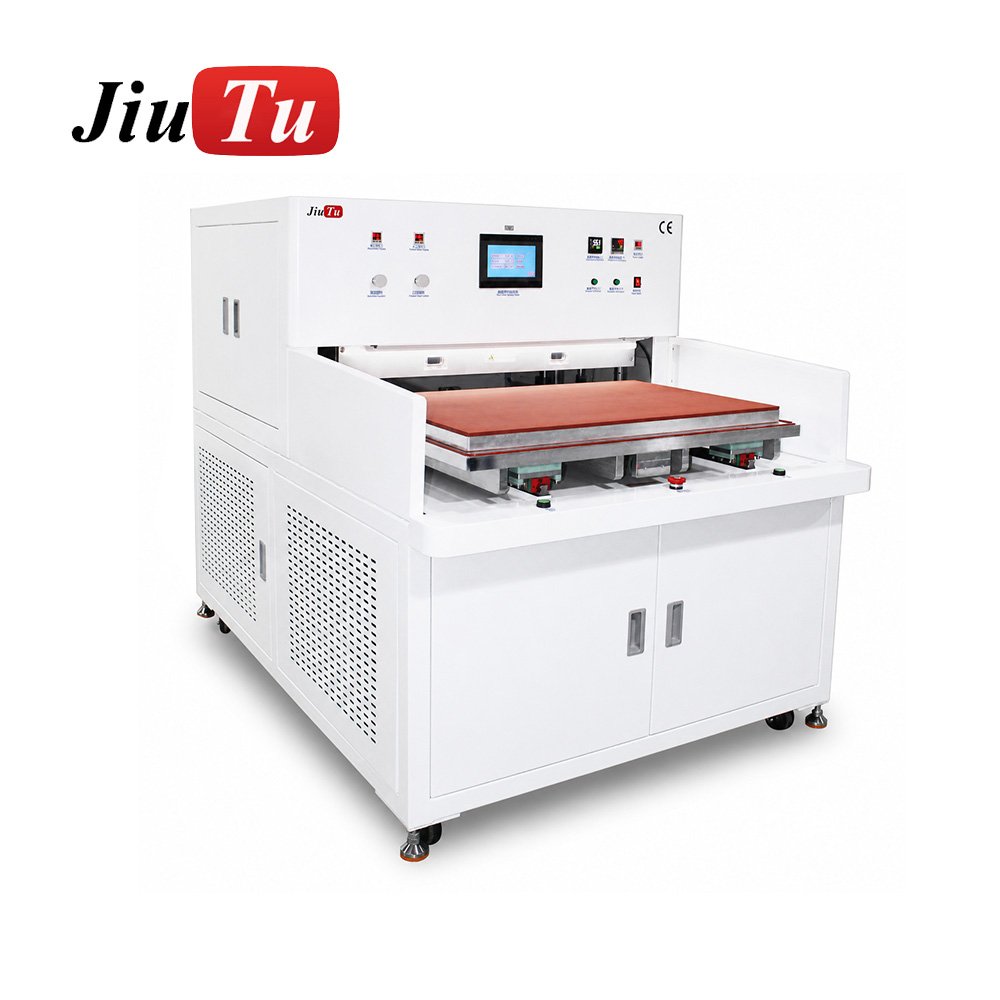

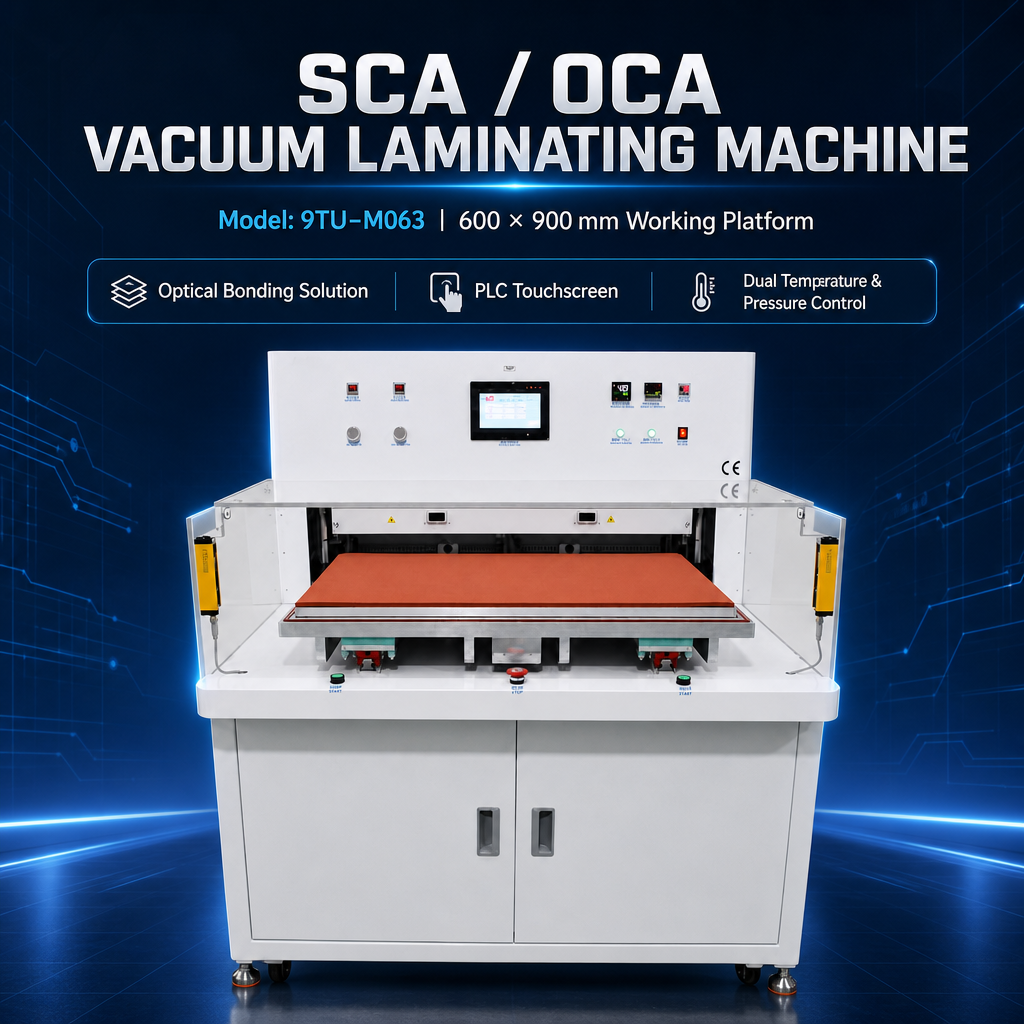

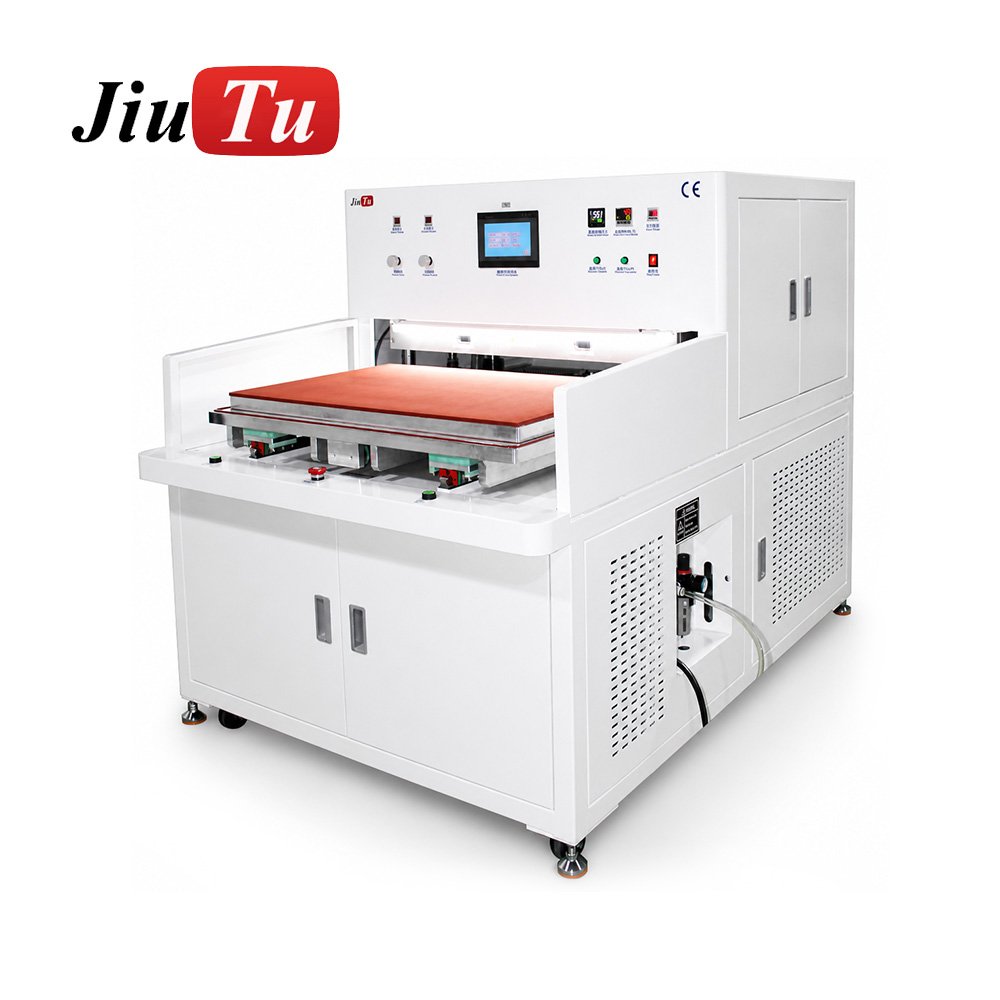

600×900 Vacuum Laminator with Baffles

The 9TU-M063 combines vacuum, temperature and pneumatic pressure in a large-format laminating platform for industrial display-module assembly. The loading platform moves out of the processing area to ...

GET QUOTE NOW

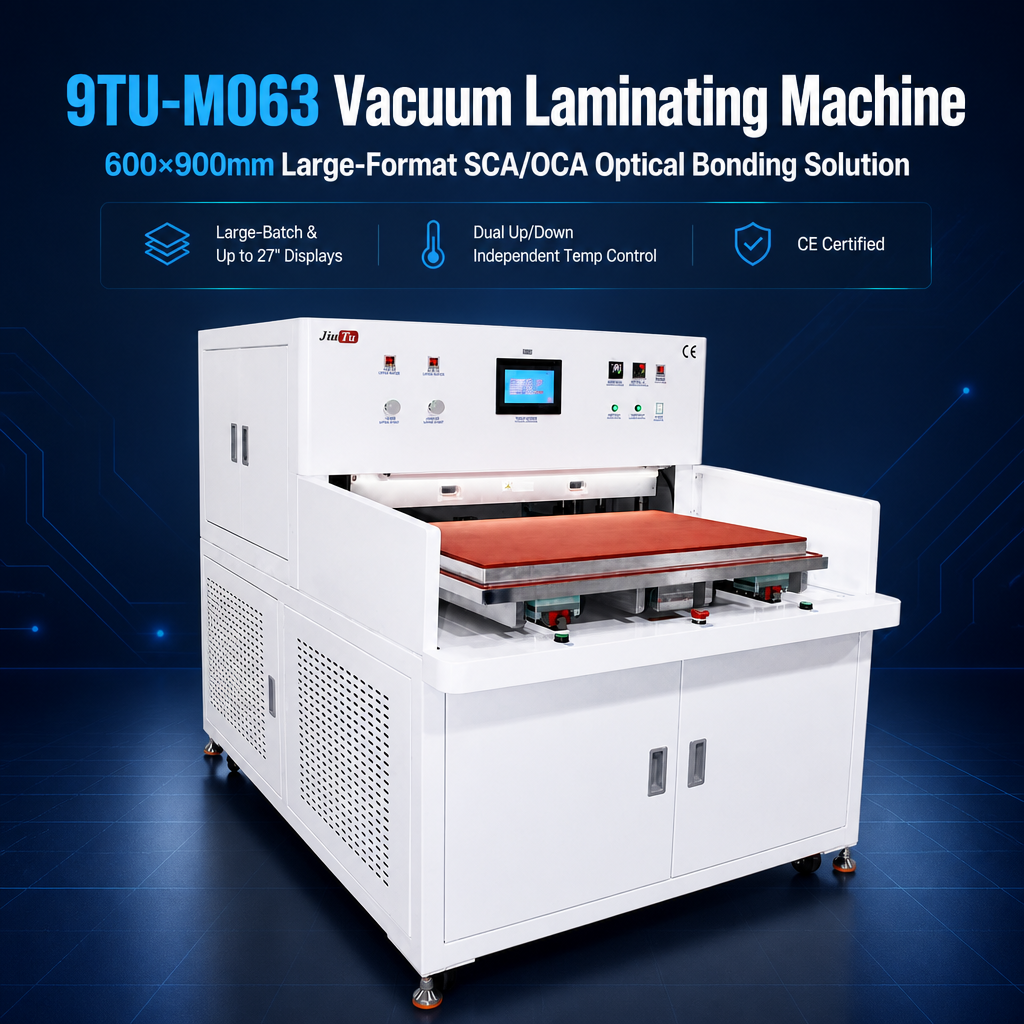

Large-Format Vacuum Lamination for Industrial Display Modules

The 9TU-M063 combines vacuum, temperature and pneumatic pressure in a large-format laminating platform for industrial display-module assembly.

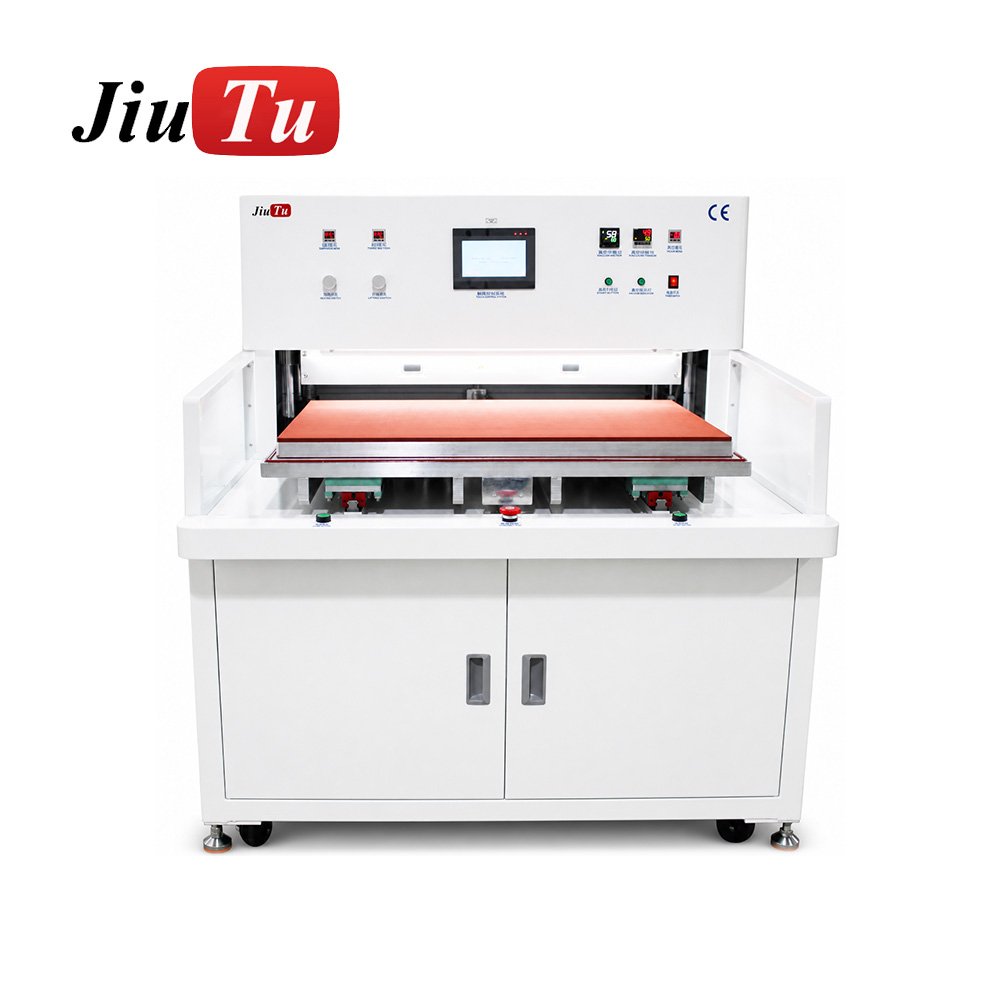

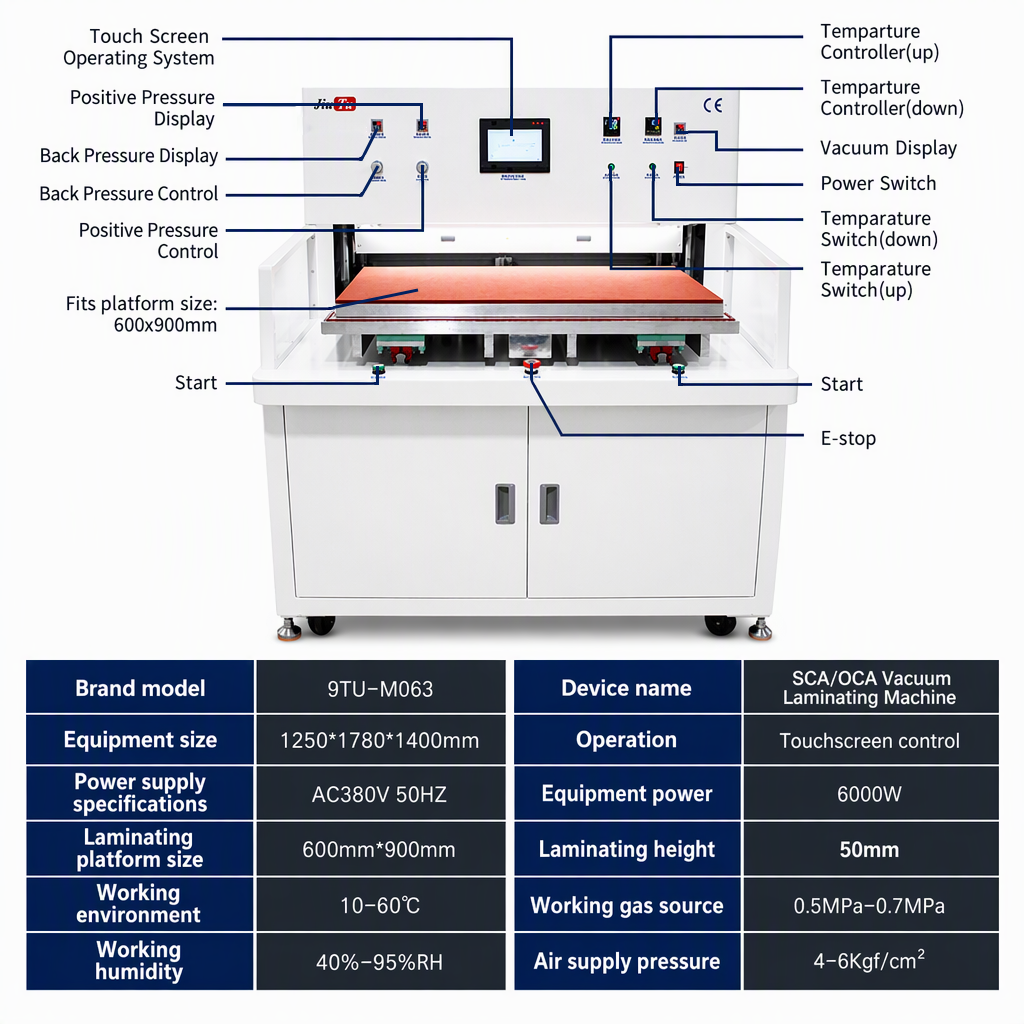

The loading platform moves out of the processing area to provide access for workpiece placement. Side guards are installed on both sides of the open loading zone to separate the platform travel area from the surrounding workspace. Two start controls are positioned at the front of the machine, together with a centrally located emergency stop.

The upper and lower heating zones have independent temperature controllers and switches. Positive-pressure and back-pressure displays allow the operator to monitor the pneumatic circuit, while separate controls support process adjustment. A vacuum display provides direct visibility of the chamber condition during operation.

The PLC touchscreen consolidates machine operation and parameter entry. Because the supplied materials do not document numerical temperature, pressure, vacuum, cycle or accuracy limits, those values must be confirmed against the final technical agreement before publication.

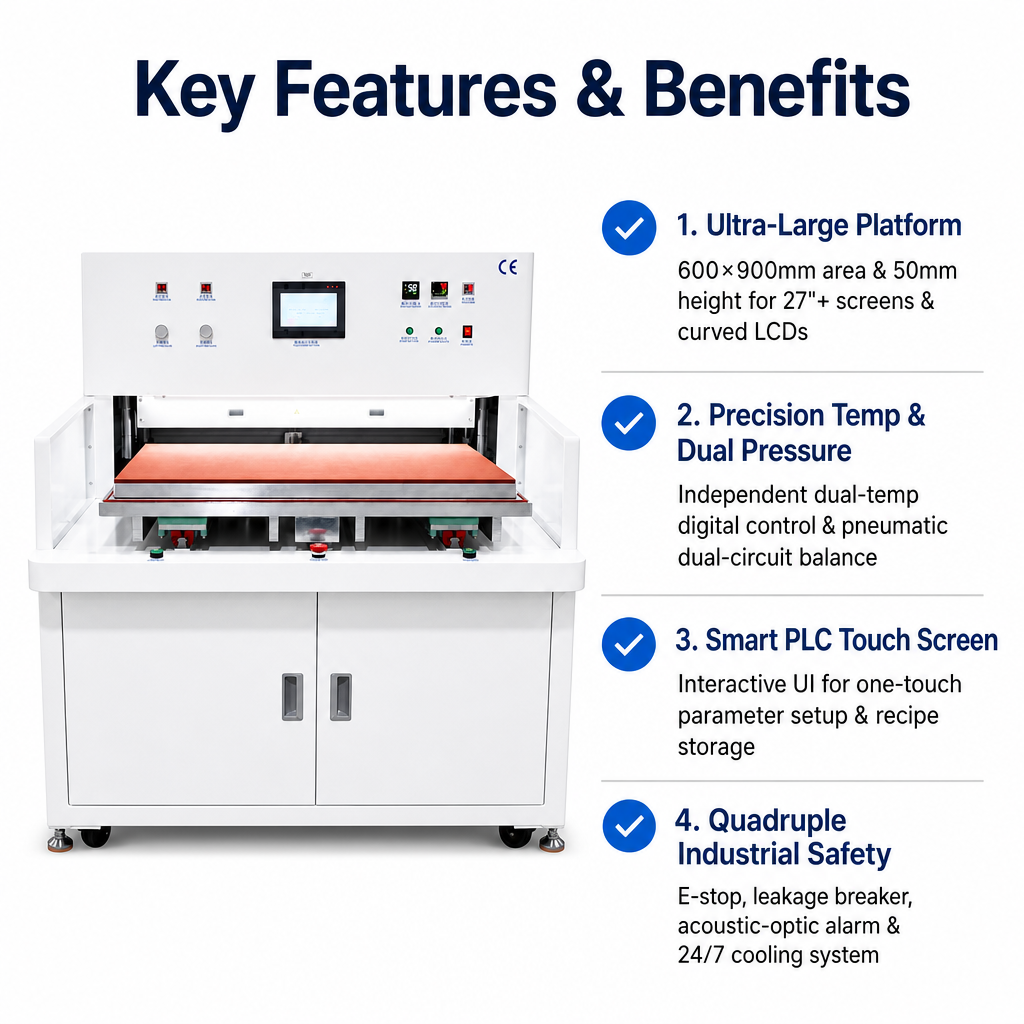

Key Features

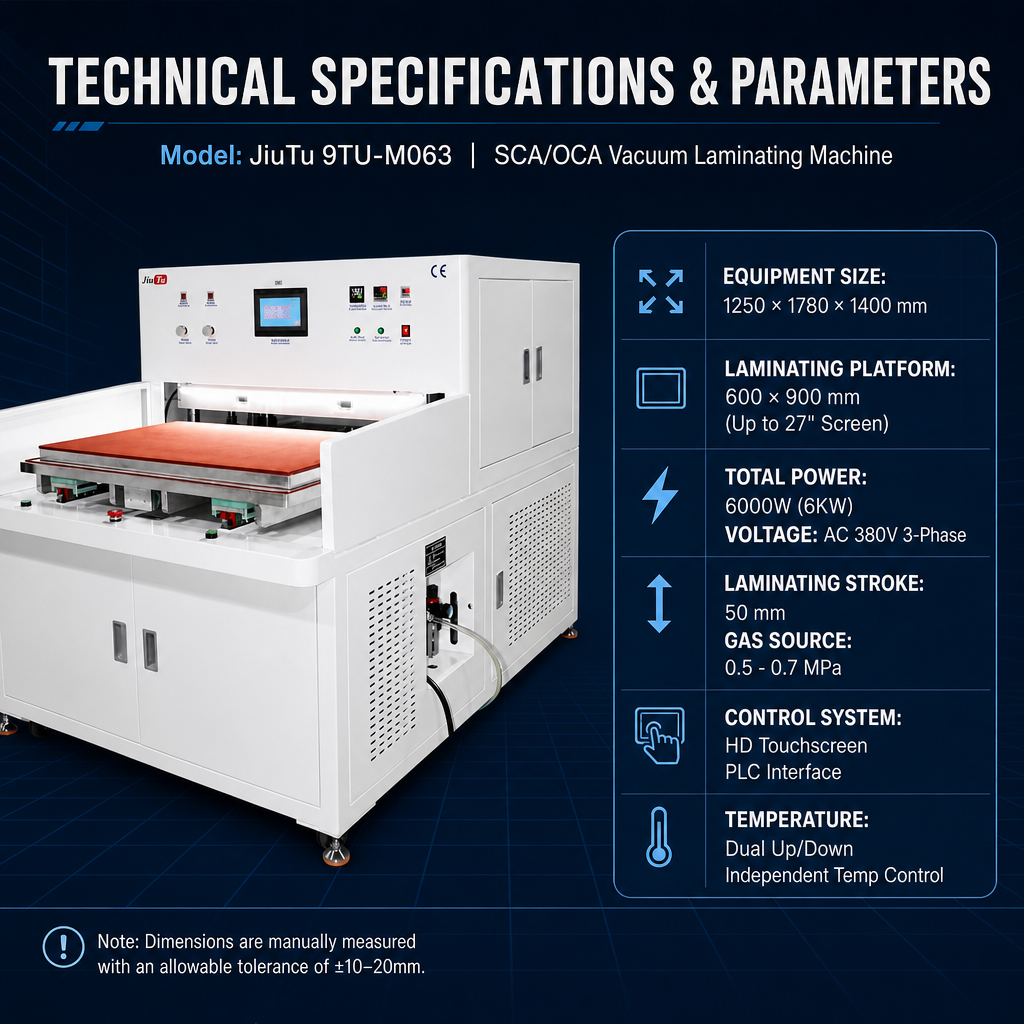

1. 600 × 900 mm Laminating Platform
The confirmed laminating-platform size is 600 × 900 mm.

Buyer benefit: Supports compatible automotive displays, industrial touch panels, HMI assemblies, medical displays and other medium-to-large display modules.

2. 50 mm Laminating Height
The published processing height is 50 mm.

Buyer benefit: Provides clearance for compatible display stacks, carriers and process fixtures within the validated platform area.

3. Independent Upper and Lower Temperature Control
The control panel includes separate temperature controllers and switches for the upper and lower heating zones.

Buyer benefit: Each heating zone can be managed separately to match the thermal requirements of the approved material stack.

4. Positive-Pressure and Back-Pressure Adjustment
The machine provides pressure displays and independent controls for positive pressure and back pressure.

Buyer benefit: Operators can monitor and adjust the pneumatic process according to the validated bonding recipe.

5. Vacuum Monitoring
A dedicated vacuum display is integrated into the front control panel.

Buyer benefit: The operator can observe the chamber condition during the vacuum laminating sequence.

6. PLC Touchscreen Operation
The machine uses a touchscreen interface for operating control and parameter entry.

Buyer benefit: Process settings and machine functions are organized in one operator interface.

7. Side Safety Guards
Protective panels are installed on both sides of the open loading platform.

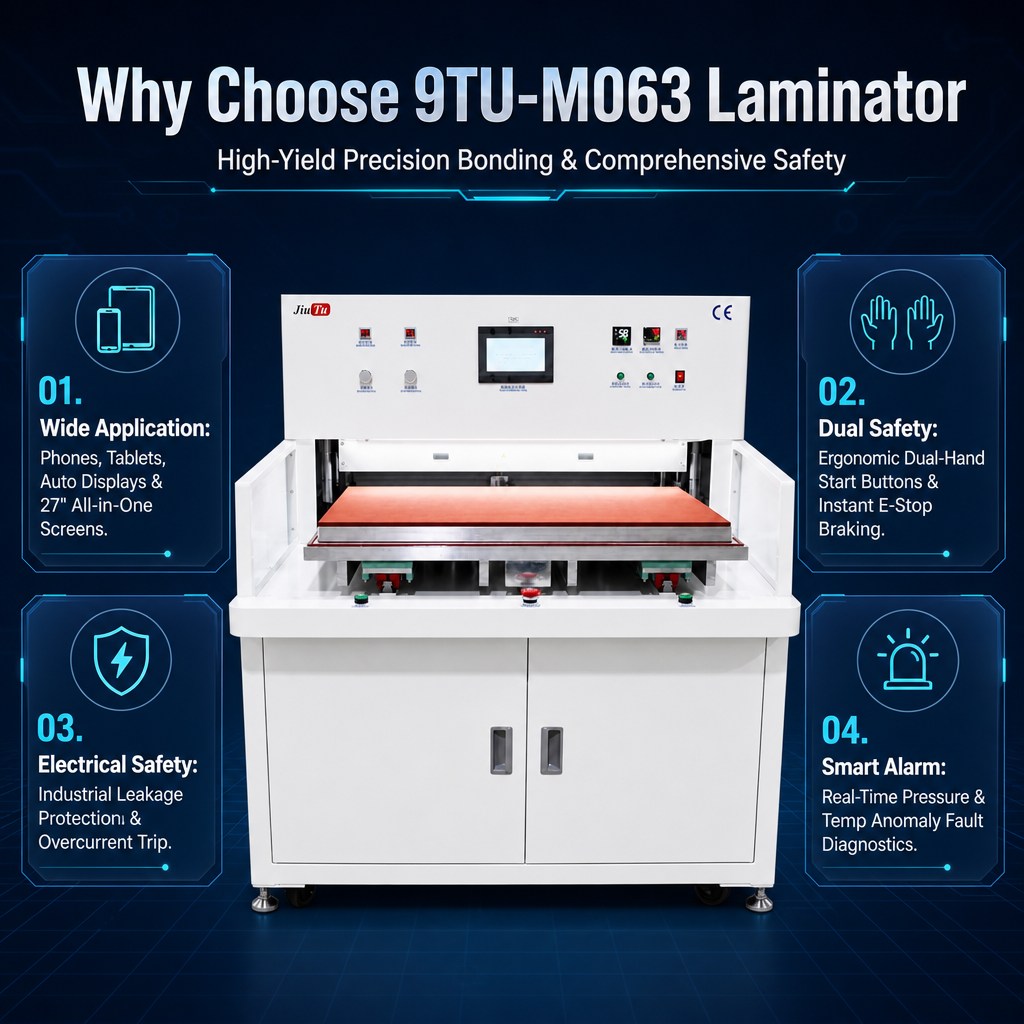

8. Dual-Hand Start Controls
Start controls are positioned on both sides of the front operating area.

Buyer benefit: The control layout encourages the operator to keep both hands away from the active platform area when initiating the cycle.

9. Emergency and Electrical Protection
The machine includes a centrally positioned emergency stop. Supplied materials also reference leakage and overcurrent protection together with machine alarms.

Buyer benefit: Clearly accessible controls support safer operation and faster response to abnormal conditions.

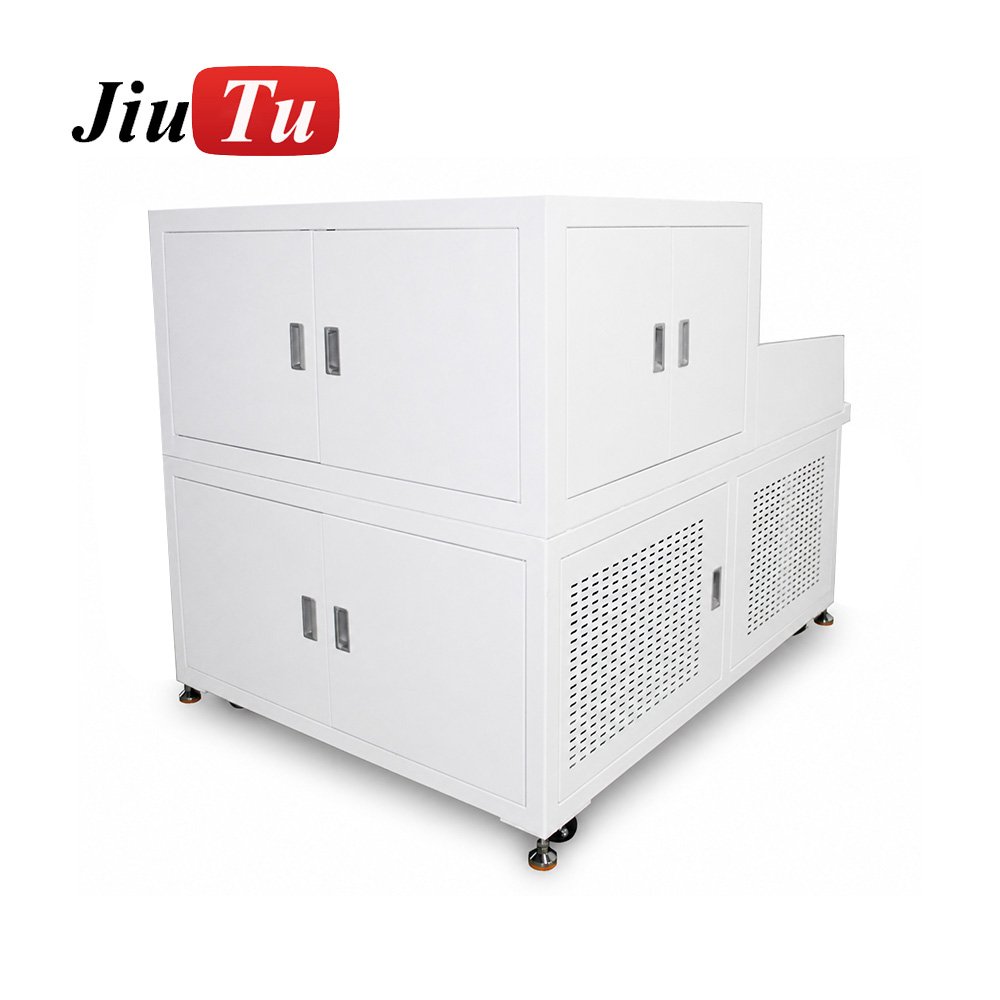

10. Movable Base with Leveling Feet
The cabinet uses casters and adjustable leveling feet.

Buyer benefit: The machine can be positioned during factory layout preparation and stabilized before operation.

Why Choose Us

SCA adhesive lamination
OCA adhesive lamination
Soft-to-hard optical bonding
Hard-to-hard optical bonding
TP and LCM lamination
LCD display-module lamination
Flat display bonding
Curved display bonding, subject to fixture review

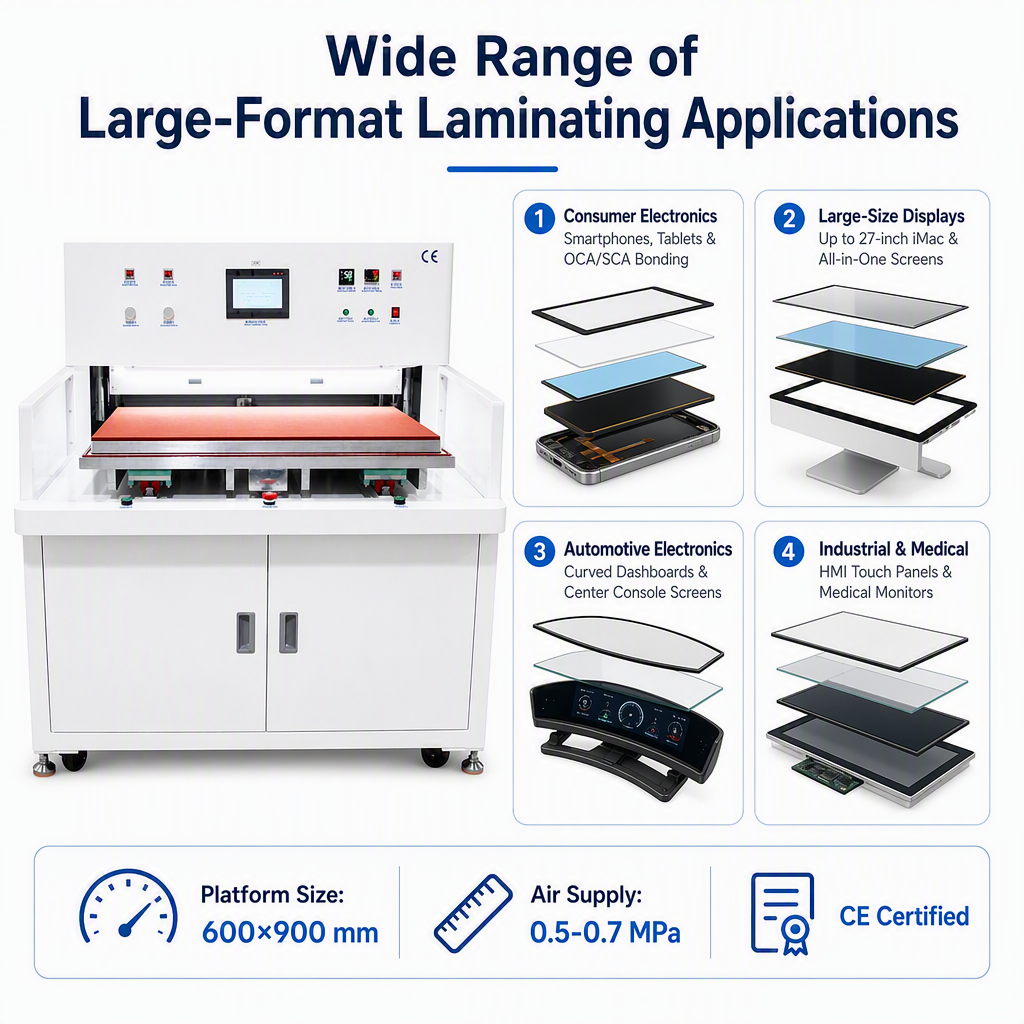

Target Industrial Applications

Automotive Displays
Center-console displays
Curved dashboard displays
Multi-screen cockpit assemblies
In-vehicle information displays
Industrial Displays
Human-machine interfaces
Industrial touch panels
Embedded control displays
Marine display modules
Smart-meter displays
Medical and Commercial Displays
Medical monitor assemblies
Diagnostic-equipment displays
Commercial information panels
All-in-one display modules
Large touch-display assemblies
Production and Development
Display-module production lines
Optical-bonding process development
Material-stack evaluation
Adhesive-process validation
Fixture-based pilot production

Key Features

Product Details

FAQ

Q1. What is the laminating-platform size?

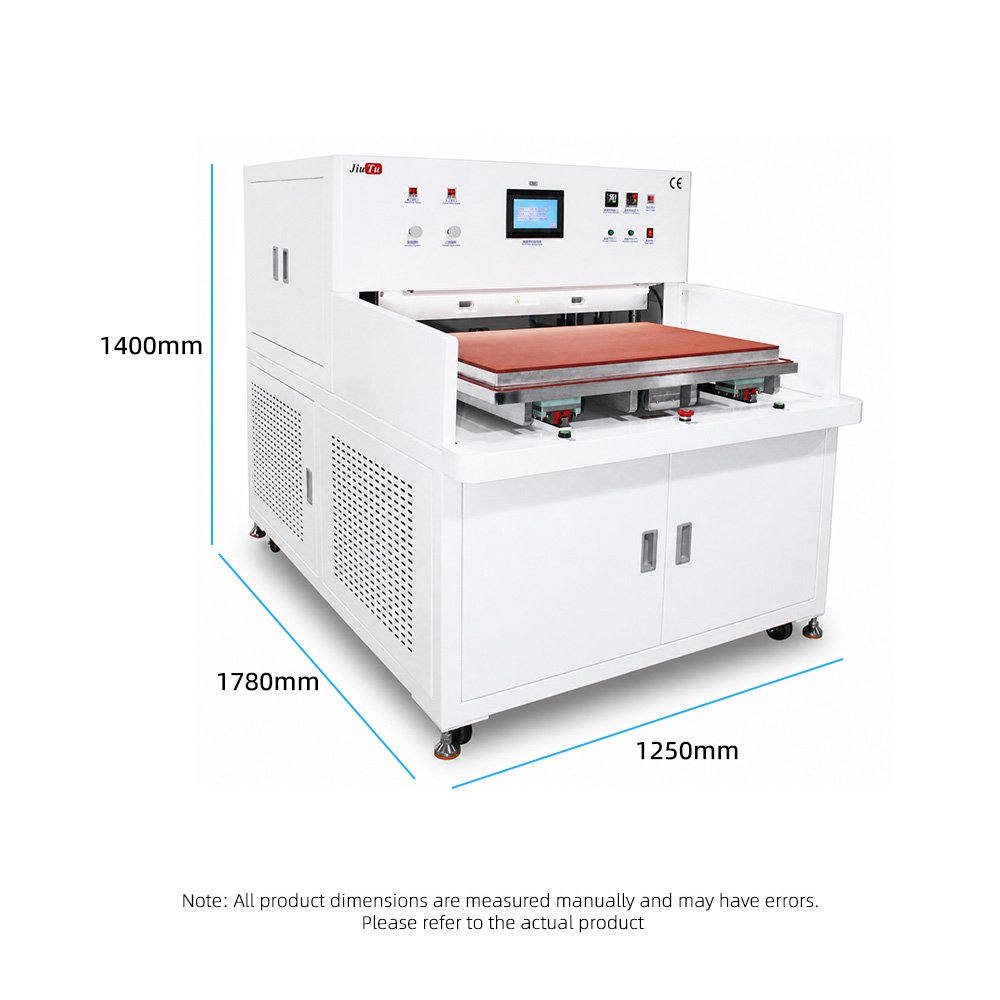

The confirmed laminating platform measures 600 × 900 mm. This is the usable platform size, not the exterior machine size.

Q2. What is the maximum laminating height?

The published laminating height is 50 mm. The combined display stack and fixture height must remain within the approved process clearance.

Q3. Which adhesive processes can be evaluated?

The supplied materials identify SCA and OCA lamination. Compatibility must be confirmed for the selected adhesive, substrate, temperature, pressure and vacuum sequence.

Q4. Can the machine process flat and curved displays?

Flat display structures are the main application. Curved structures can be evaluated when a compatible fixture and validated pressure distribution are available.

Q5. What are the side guards used for?

The side guards separate the moving loading-platform area from the adjacent workspace. The supplied materials do not verify a precision-positioning function for these panels.

Q6. Are the upper and lower temperatures controlled independently?

Yes. The front panel shows separate temperature controllers and switches for the upper and lower heating zones.

Q7. What applications are suitable for this machine?

Potential applications include automotive displays, HMI panels, industrial touch displays, medical monitors, commercial displays and large display modules. Final suitability requires sample validation.

Q8. What information is needed for a quotation?

Provide the display dimensions, layer structure, adhesive, total thickness, geometry, fixture, temperature, pressure, vacuum, accuracy and cycle requirements.
