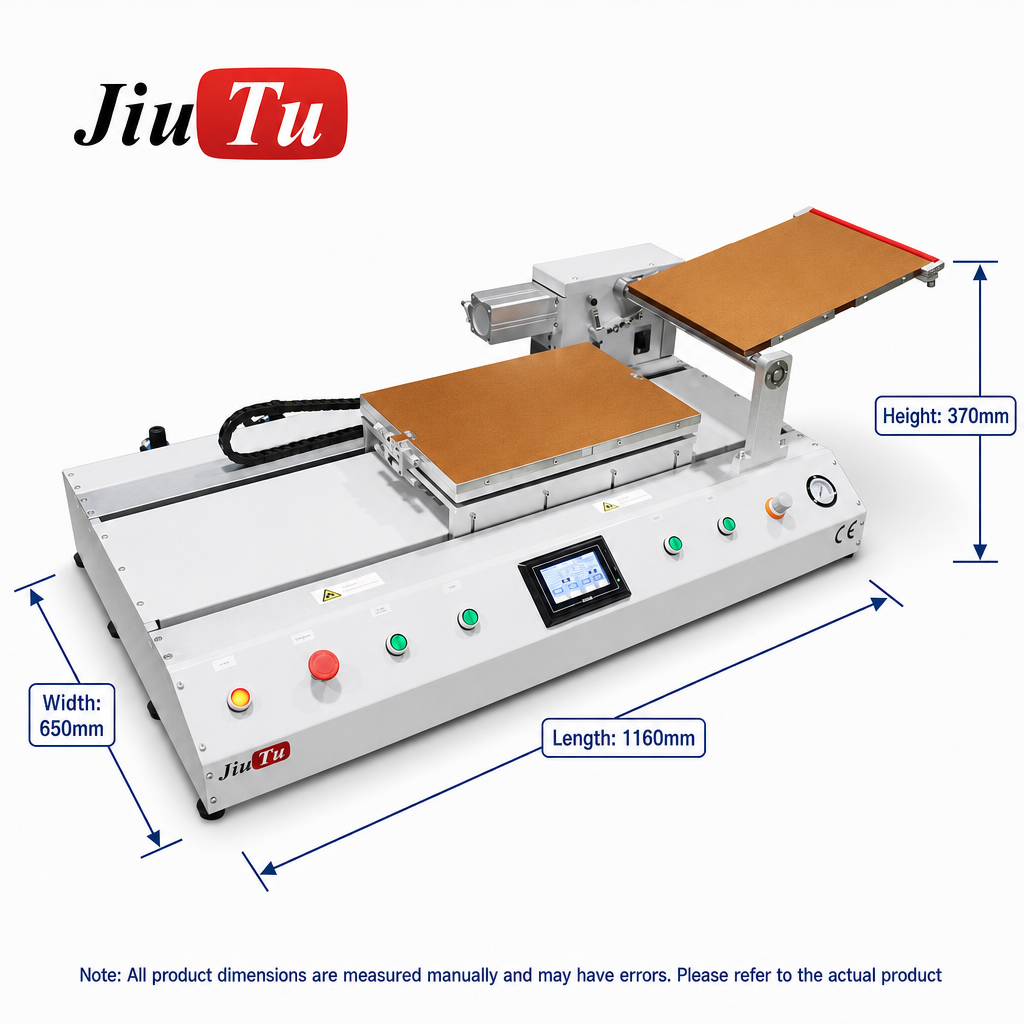

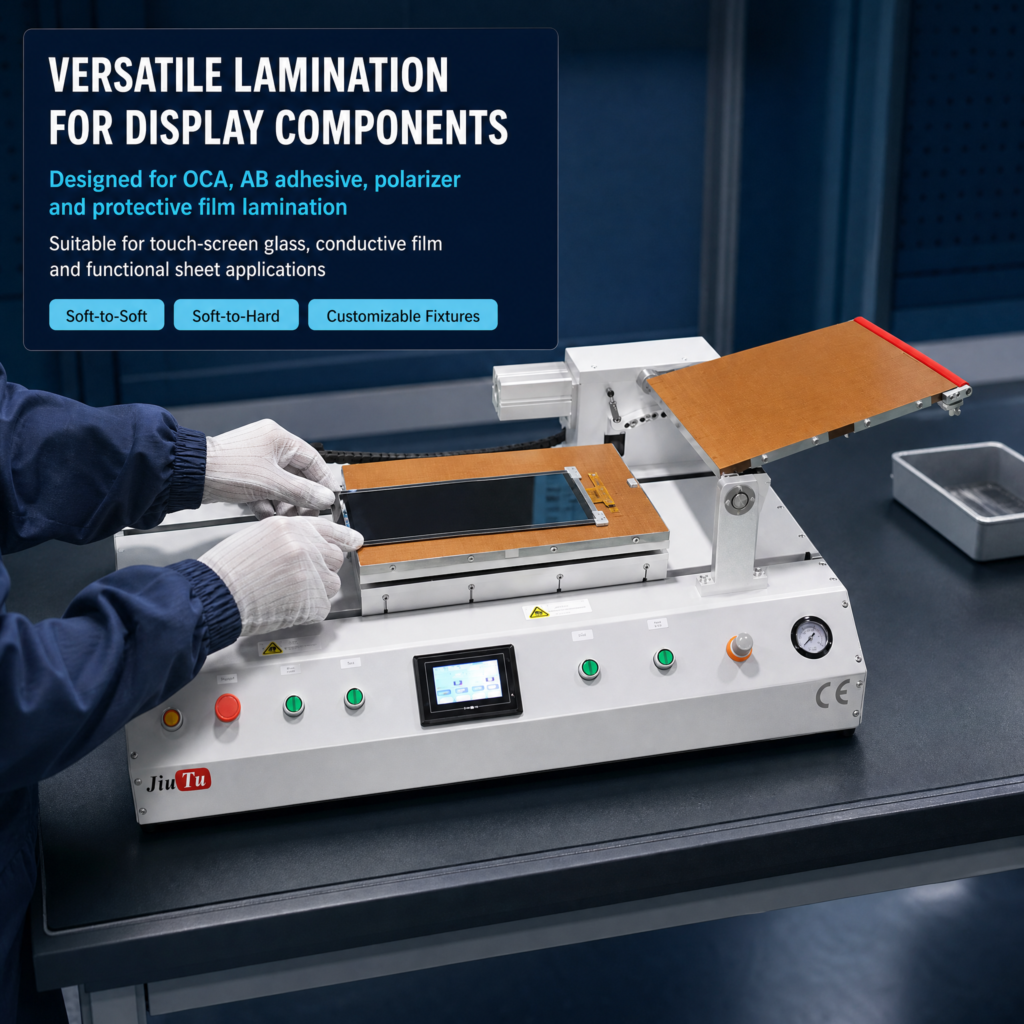

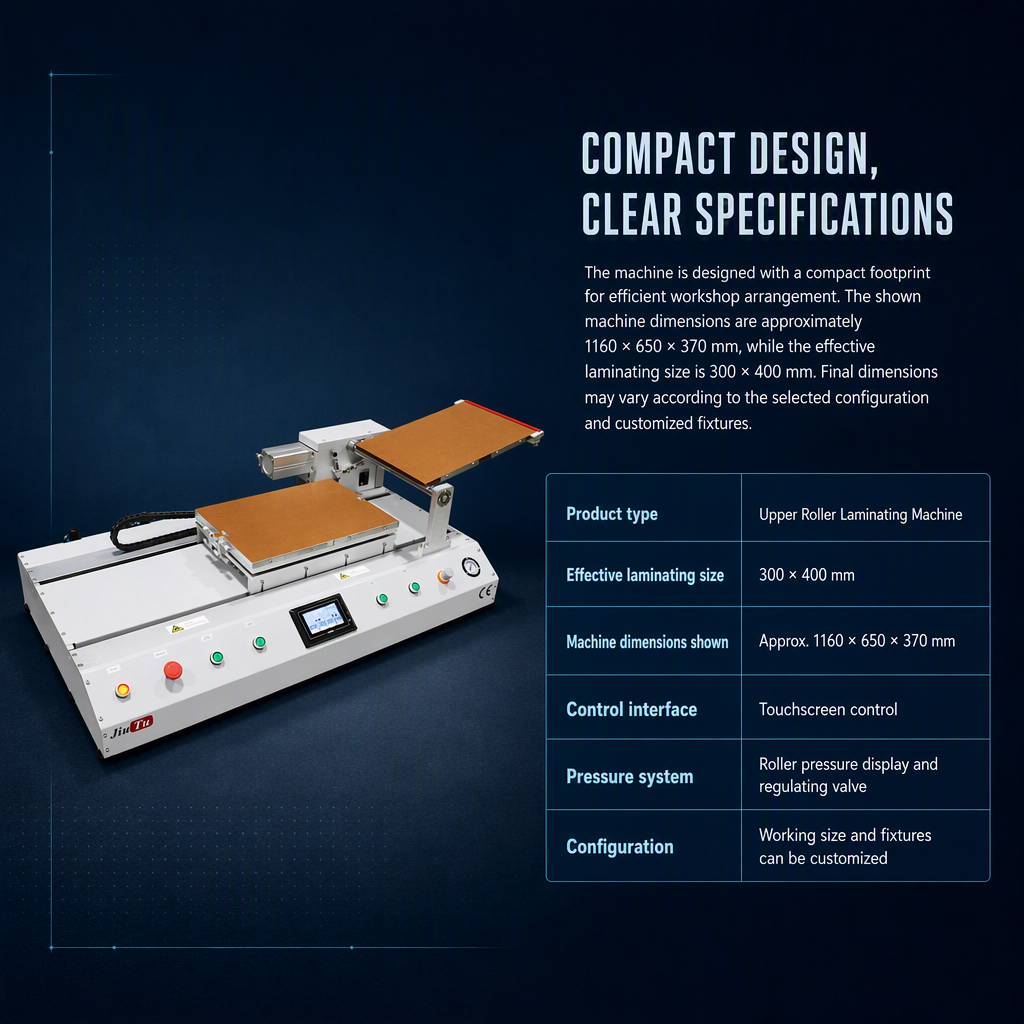

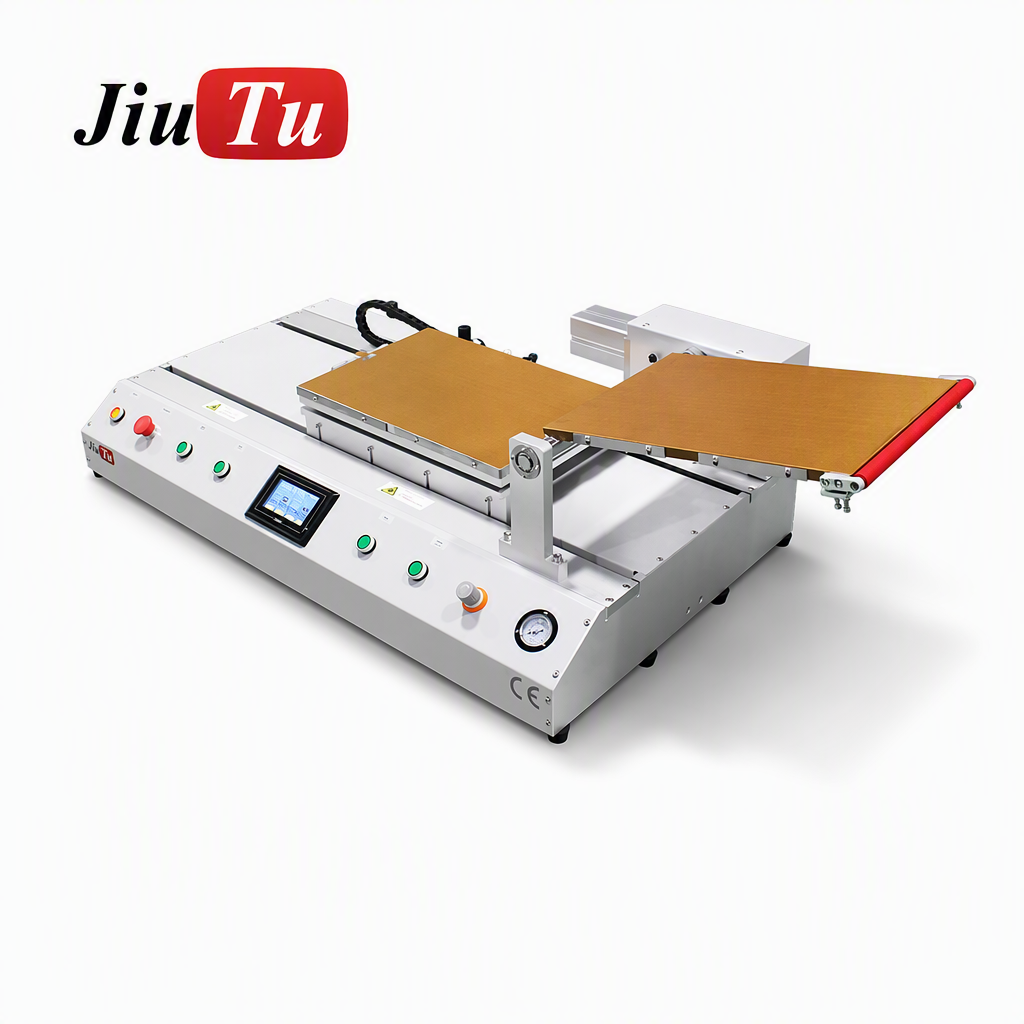

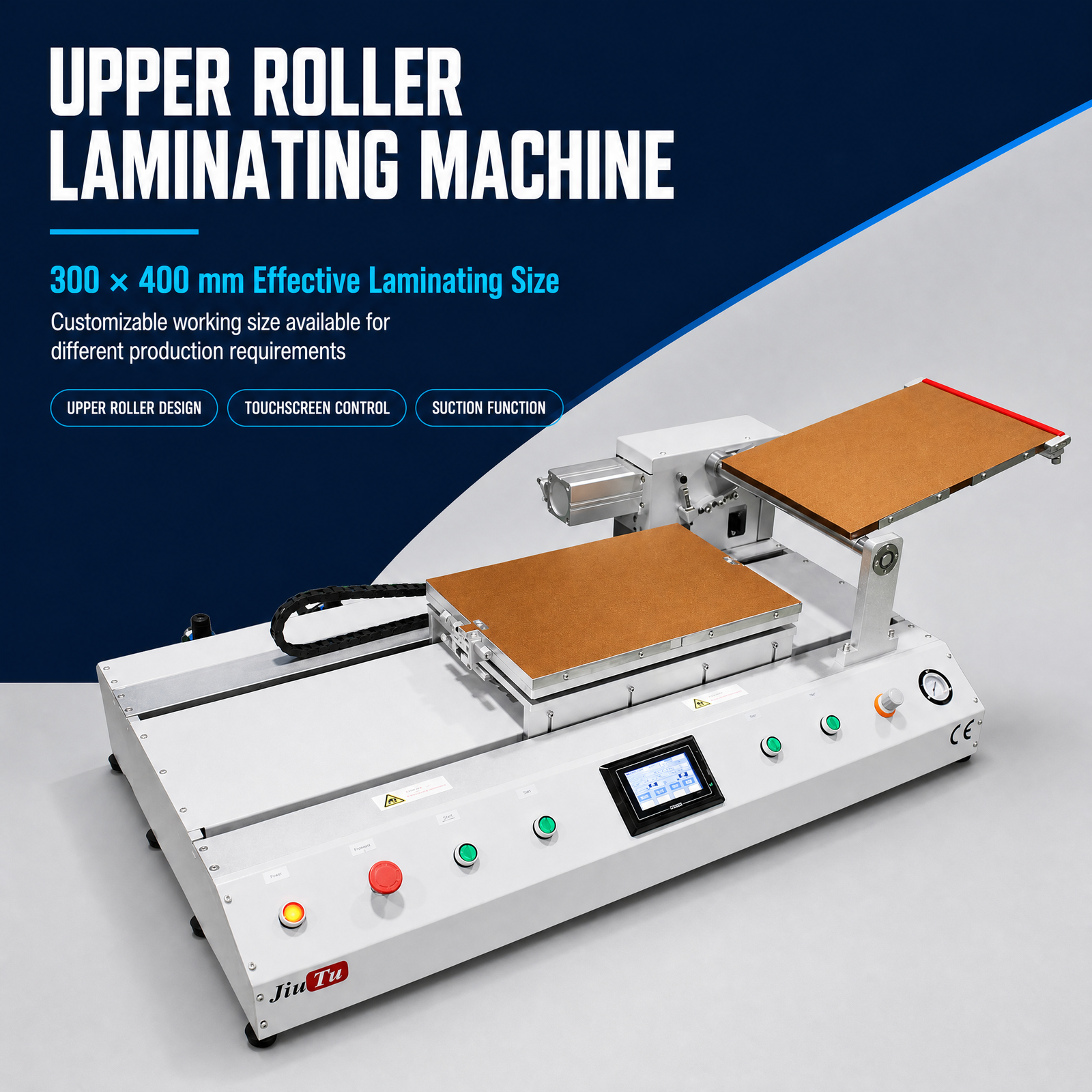

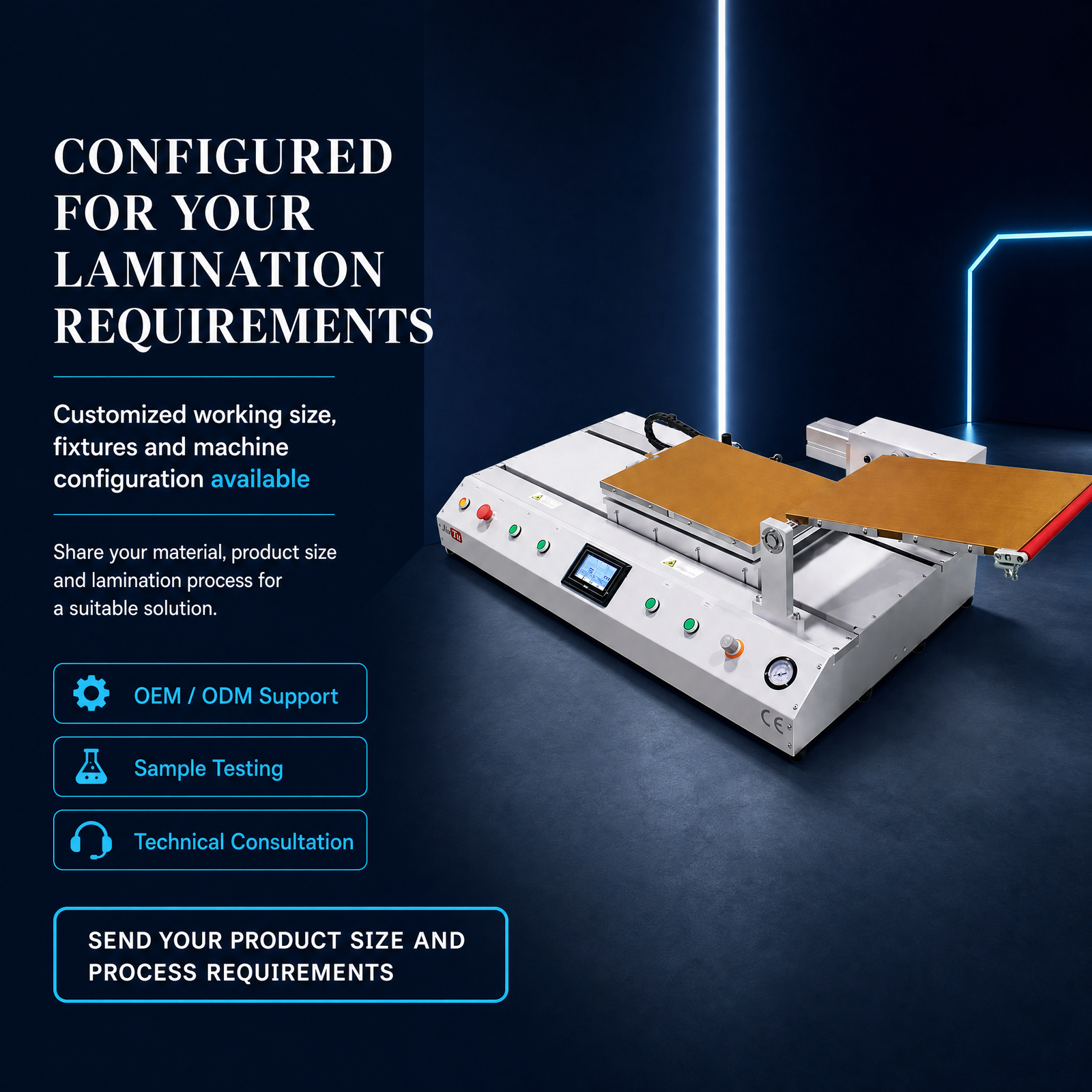

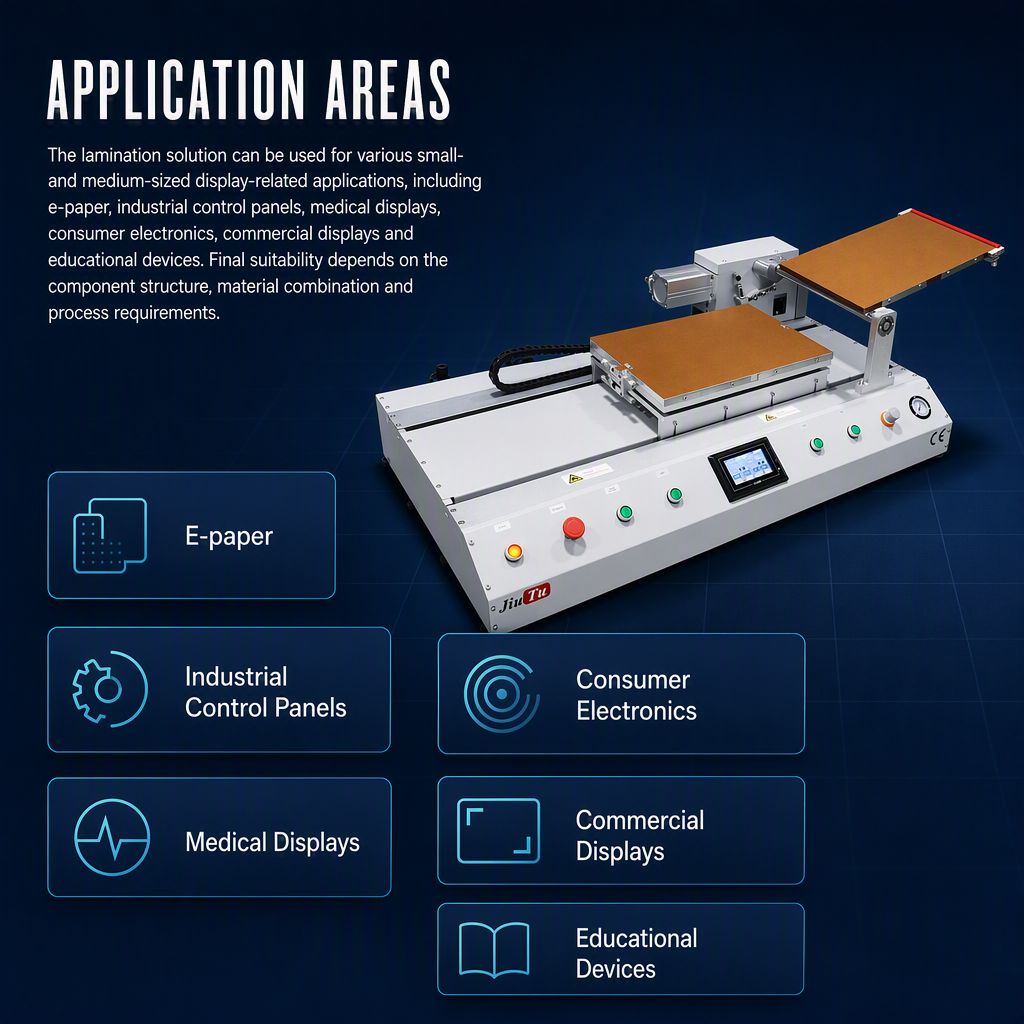

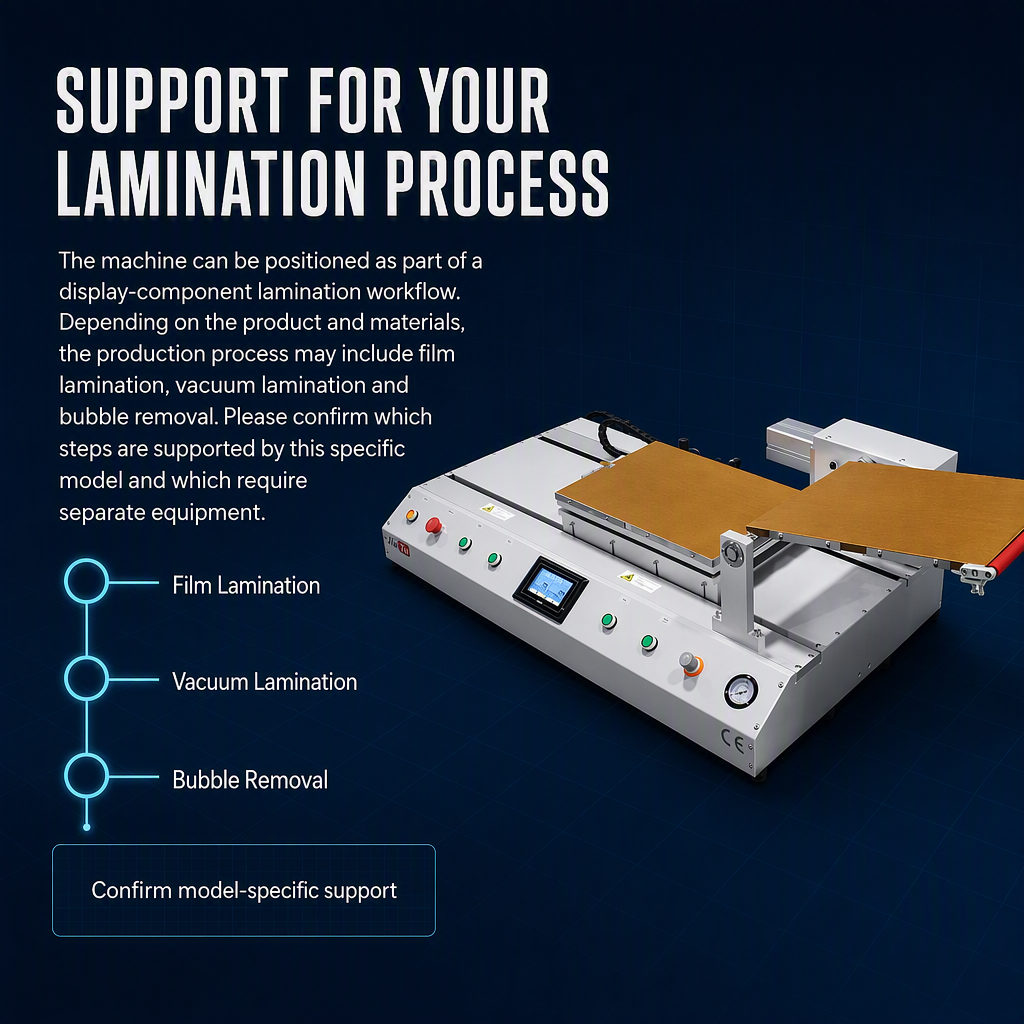

The 9TU-M068H upper roller film laminating machine

The 9TU-M068H is a production-grade upper roller film laminating machine engineered for factories manufacturing medium-to-large industrial display panels, touch-screen modules (TP), and optical bondin...

GET QUOTE NOW

The 9TU-M068H upper roller film laminating machine

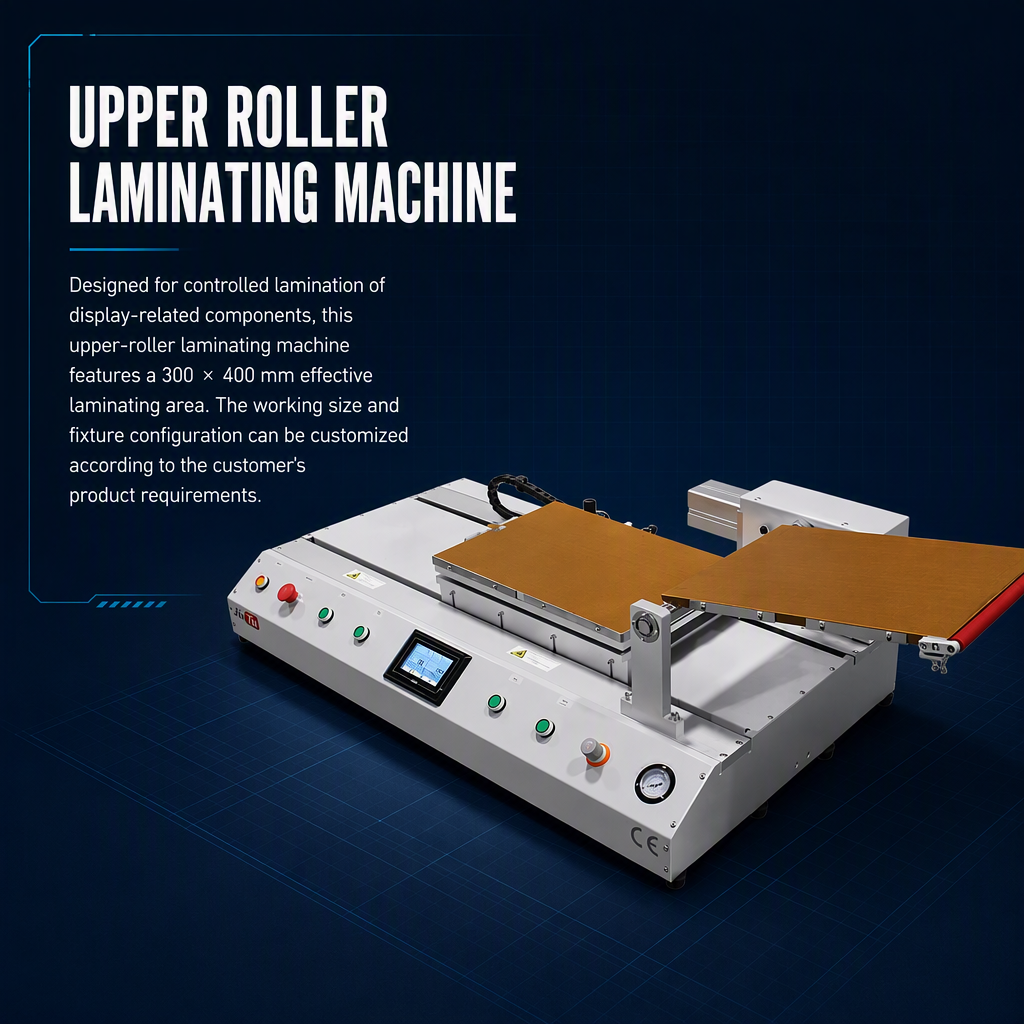

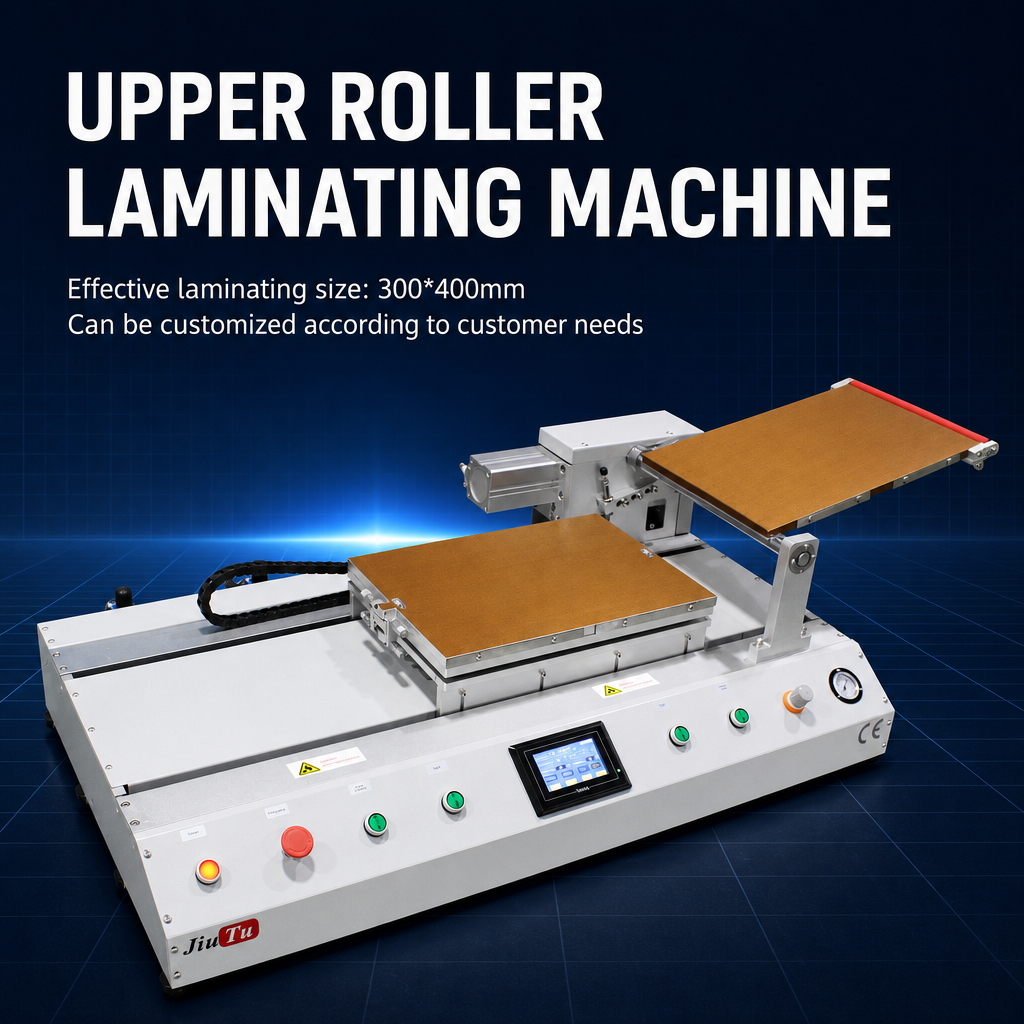

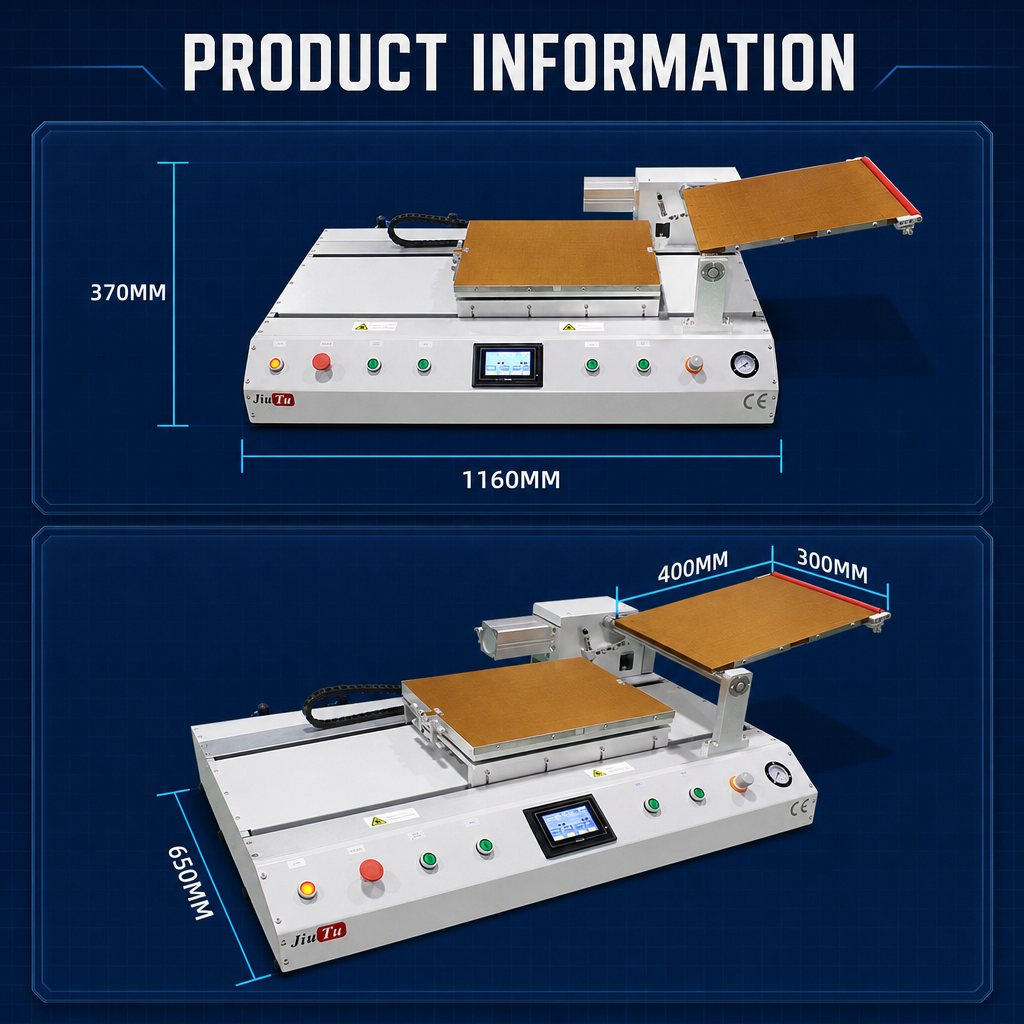

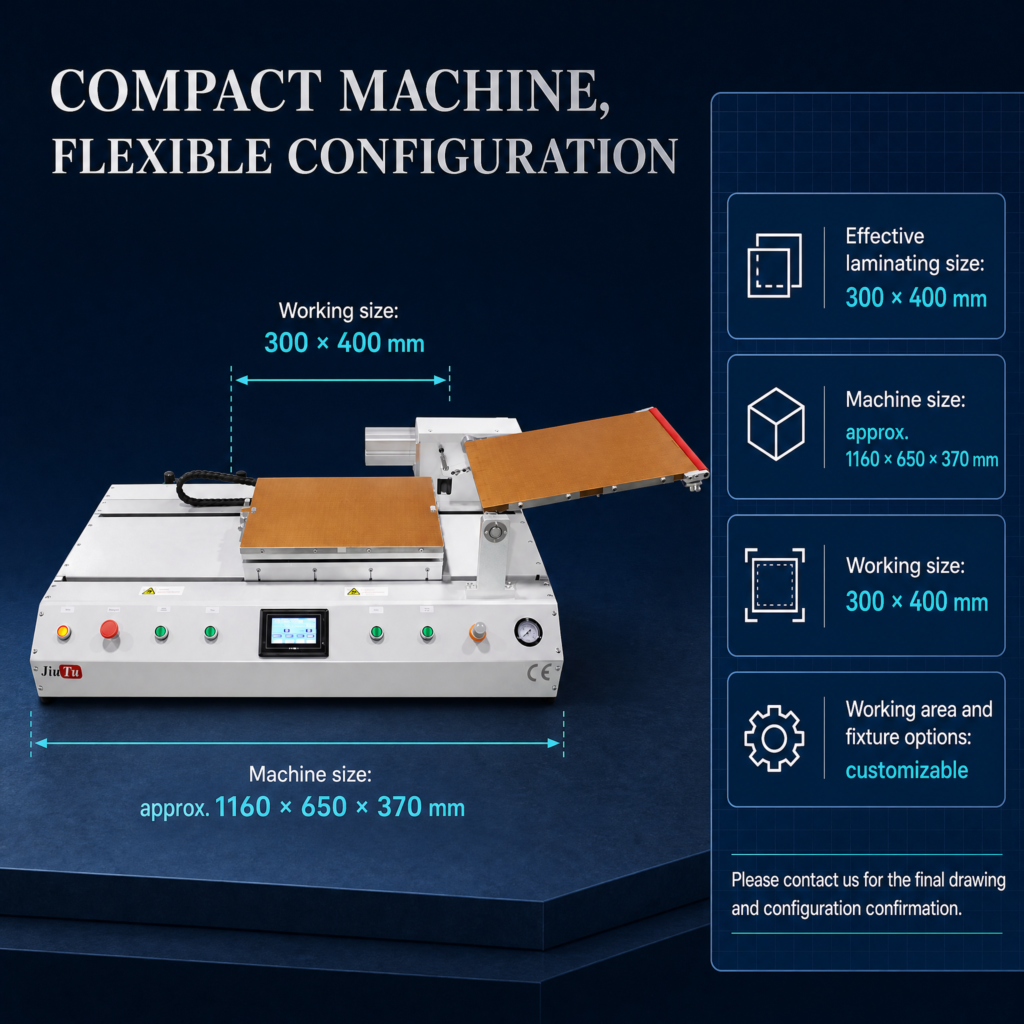

The machine’s defining feature is its upper roller press mechanism: a precision pressure roller mounted above the work platform travels across the substrate surface, applying controlled, even bonding pressure from edge to edge. This distributes force uniformly across the full working area, eliminating the pressure concentration points associated with flat-plate press lamination and enabling bubble-free, wrinkle-free bonding on flexible and rigid film materials alike.

The lower platform is driven by a servo motor, delivering high-speed, high-repeatability positioning on every cycle. The upper platform operates by cylinder control, providing fast, consistent roller engagement and release. Together, these drive systems achieve a production cycle of 6 seconds (excluding manual substrate loading time), supporting high daily throughput on continuous production shifts.

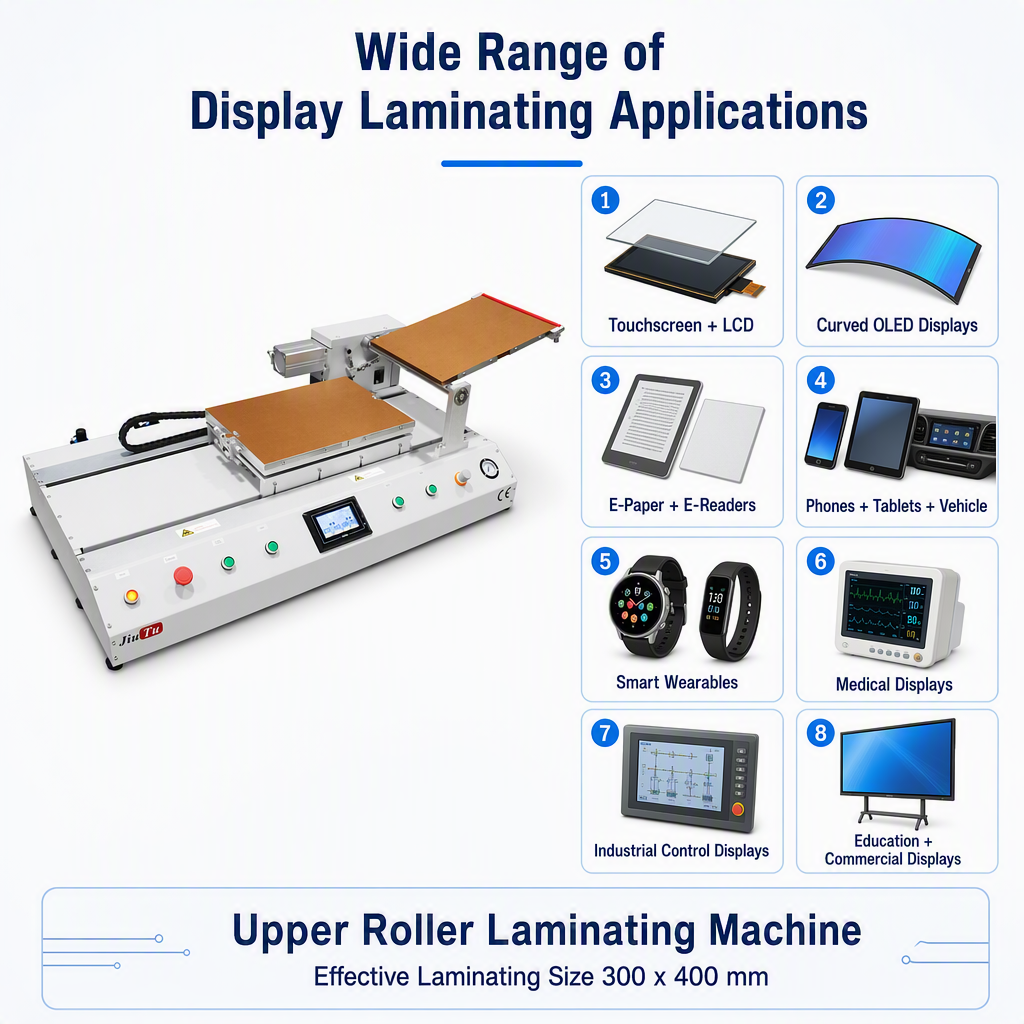

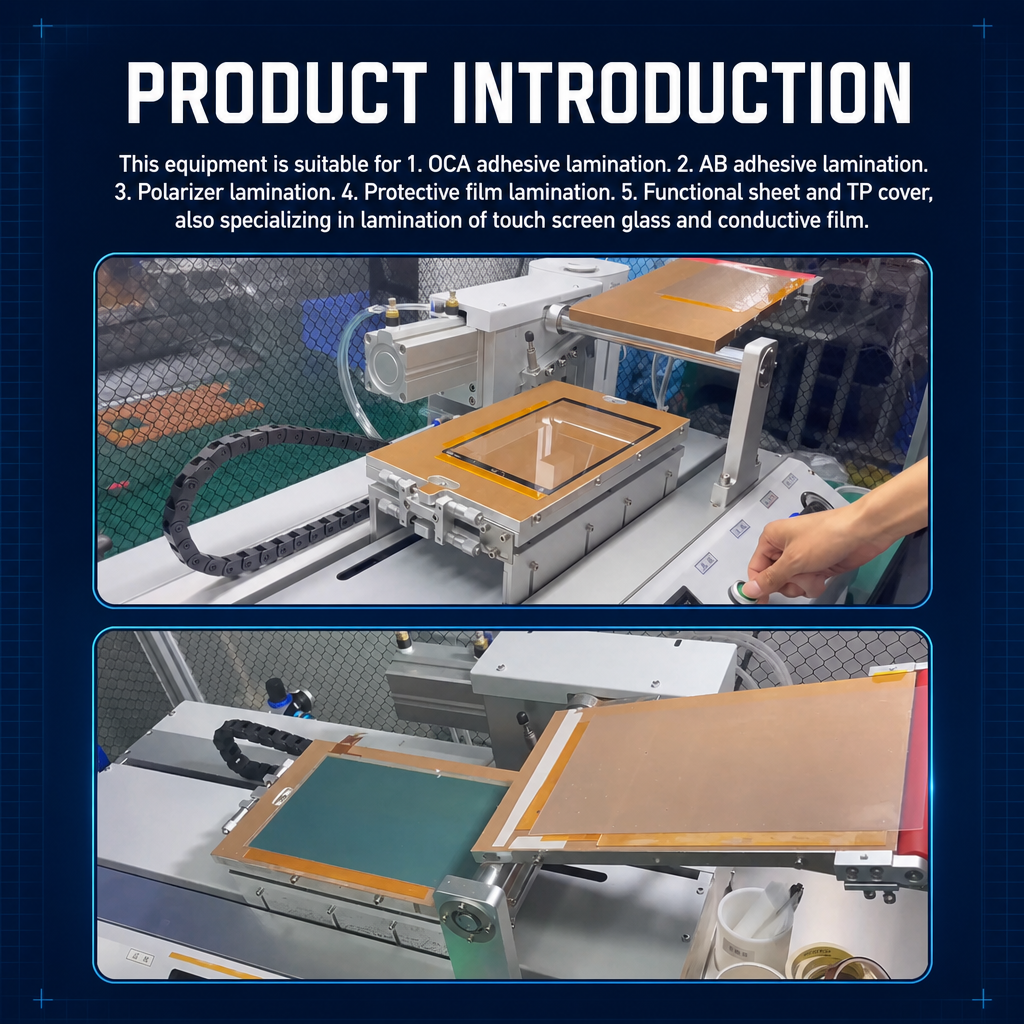

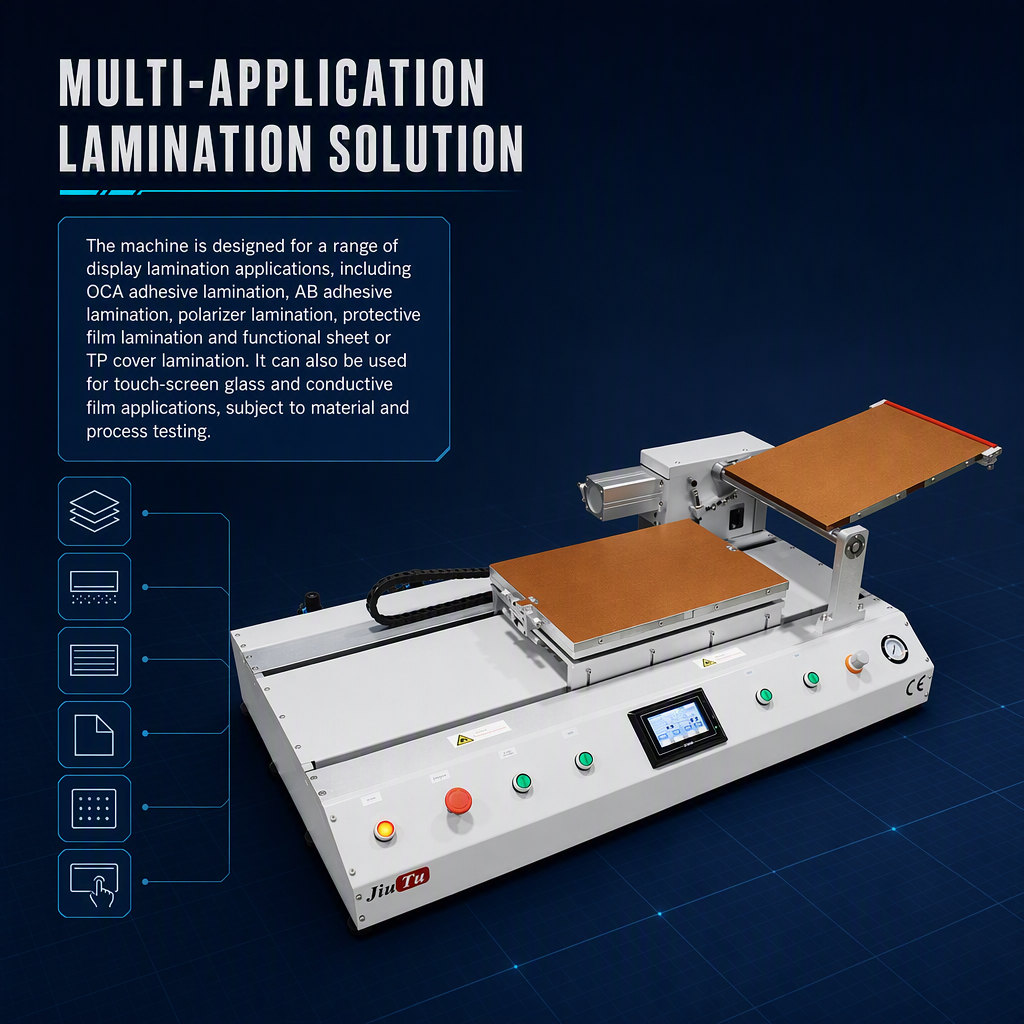

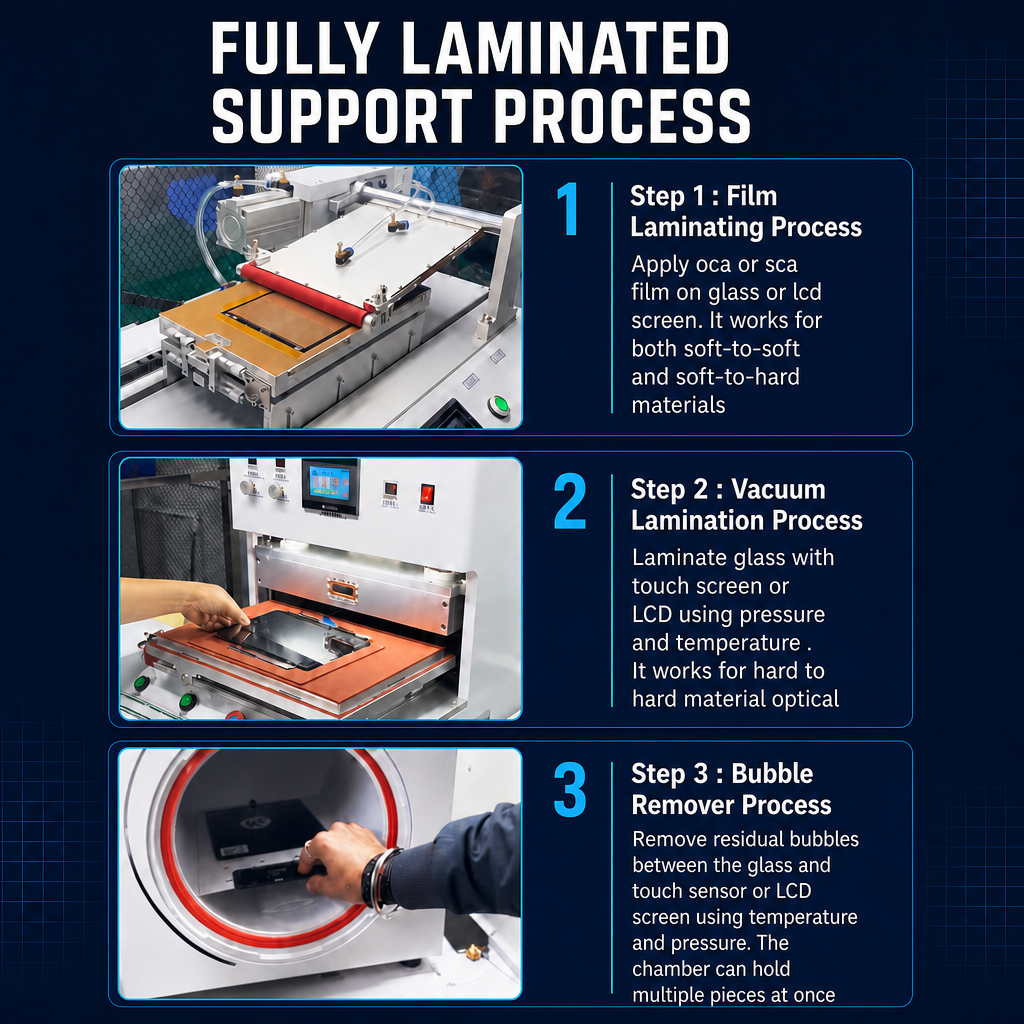

Compatible Film and Material Types
Based on the equipment specification, the 9TU-M068H is designed for the following lamination applications:

Film / Material Type Application

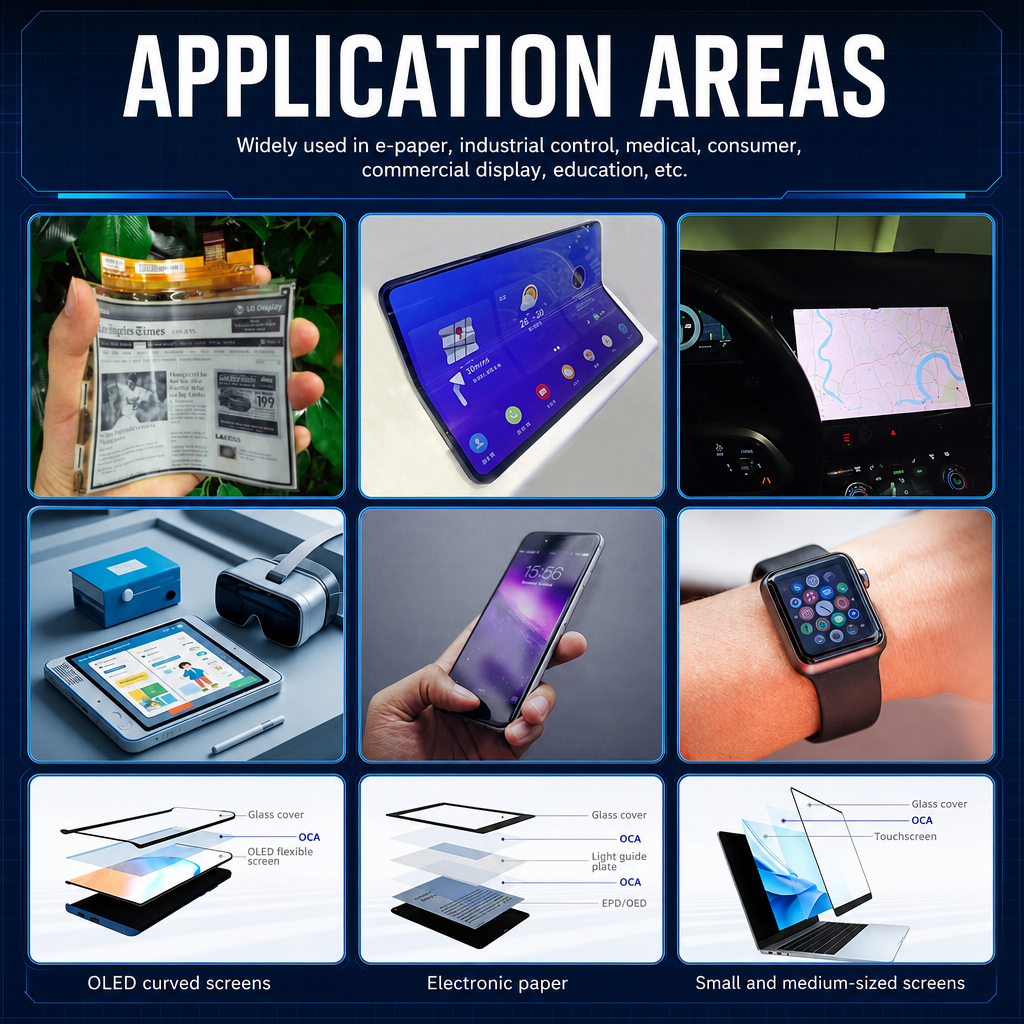

OCA adhesive film Optical clear adhesive bonding for G+G, G+F display structures
AB adhesive film Double-sided adhesive film lamination for display module assembly
Polarizer (Pol) film Polarizing layer application on LCD panels
Protective film Surface protection film lamination on cover glass and panel faces
Functional sheet / TP cover Functional optical sheet and touch-panel cover glass film application
Touch-screen glass + conductive film Conductive film bonding on ITO glass and touch-sensor substrates
Subject to material and process testing for conductive film applications.

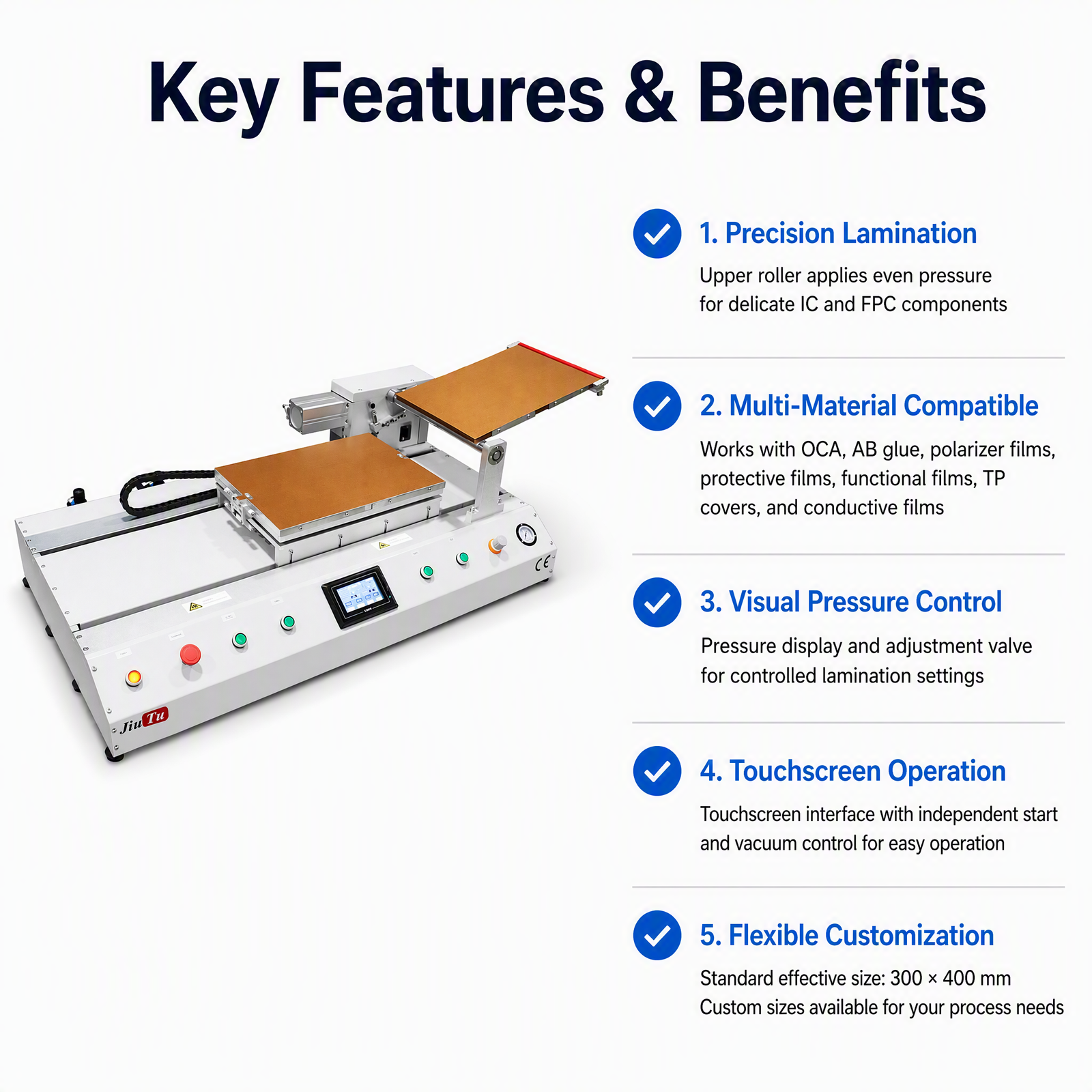

Key Features

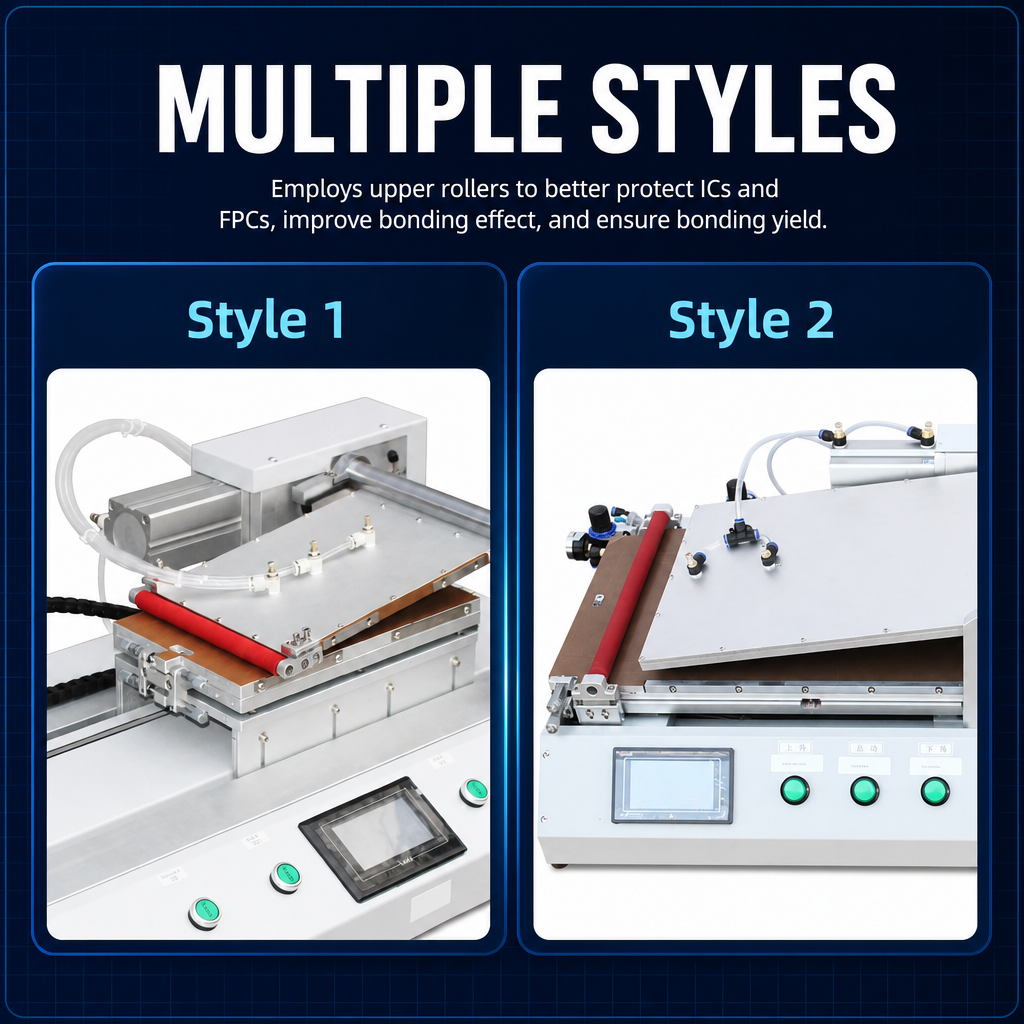

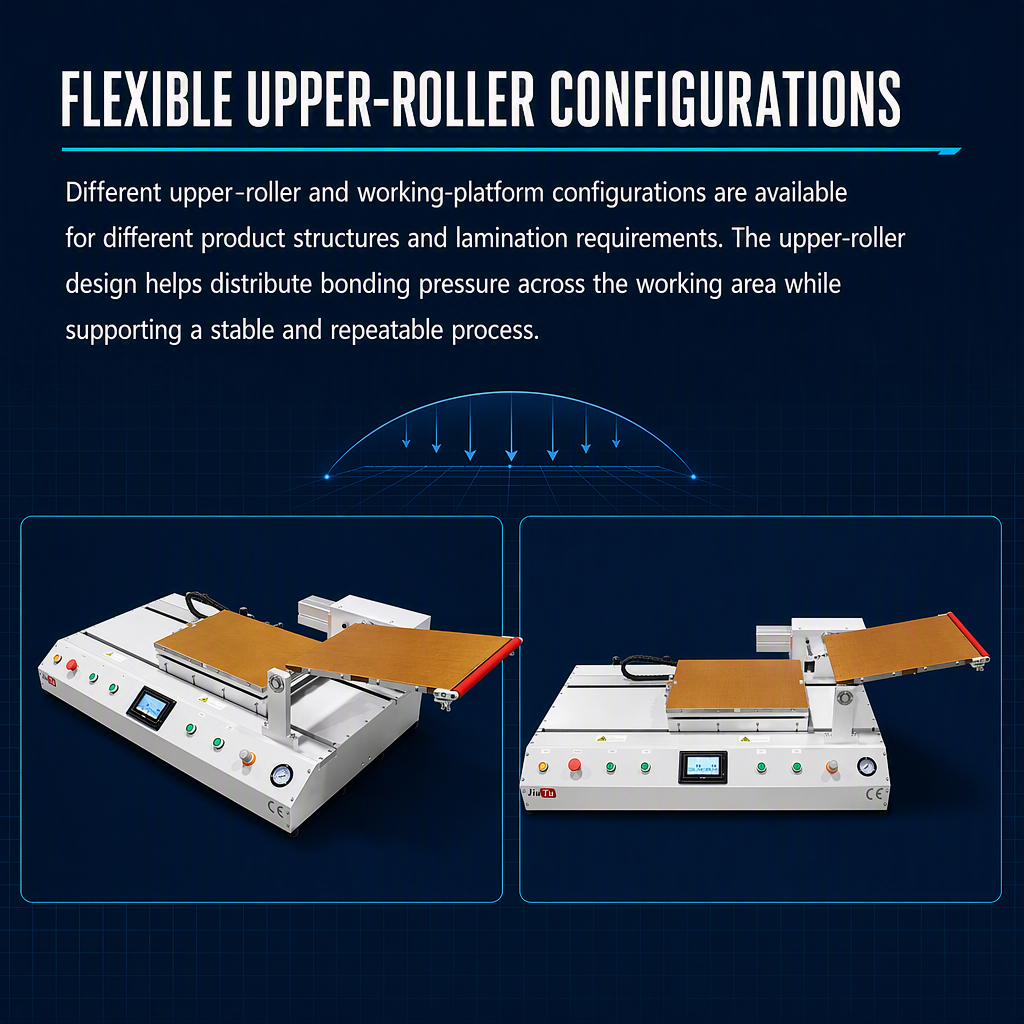

① Upper Roller Press Mechanism The upper roller design distributes bonding pressure evenly across the entire working area during each lamination stroke. Unlike flat-plate press systems, the roller applies force progressively from one edge to the other, expelling air ahead of the bond line and preventing entrapment. Different upper-roller and working-platform configurations are available to accommodate different product structures and lamination requirements.

② Servo Motor–Driven Lower Platform The lower platform advances and retracts under servo motor control, providing high positional repeatability (±0. 05 mm control axis accuracy) and smooth, programmable motion profiles. Servo control eliminates the positional drift that accumulates in pneumatic-only drive systems over long production runs, ensuring consistent bonding stroke length across thousands of cycles.

③ Dual Vacuum Adsorption Platforms Both upper and lower platforms use vacuum adsorption to secure substrates and film materials during bonding. Upper platform vacuum hole pitch: 10 × 10 mm, Ø1. 5 mm. Lower platform vacuum hole pitch: 10 × 10 mm, Ø1. 5 mm. The vacuum system is built into the machine — no external vacuum generator is required.

④ Corner Positioning Registration Substrate alignment is achieved through corner positioning guides. This mechanical registration system places the substrate consistently at the correct bonding position before each cycle, ensuring repeatable film placement without optical alignment hardware.

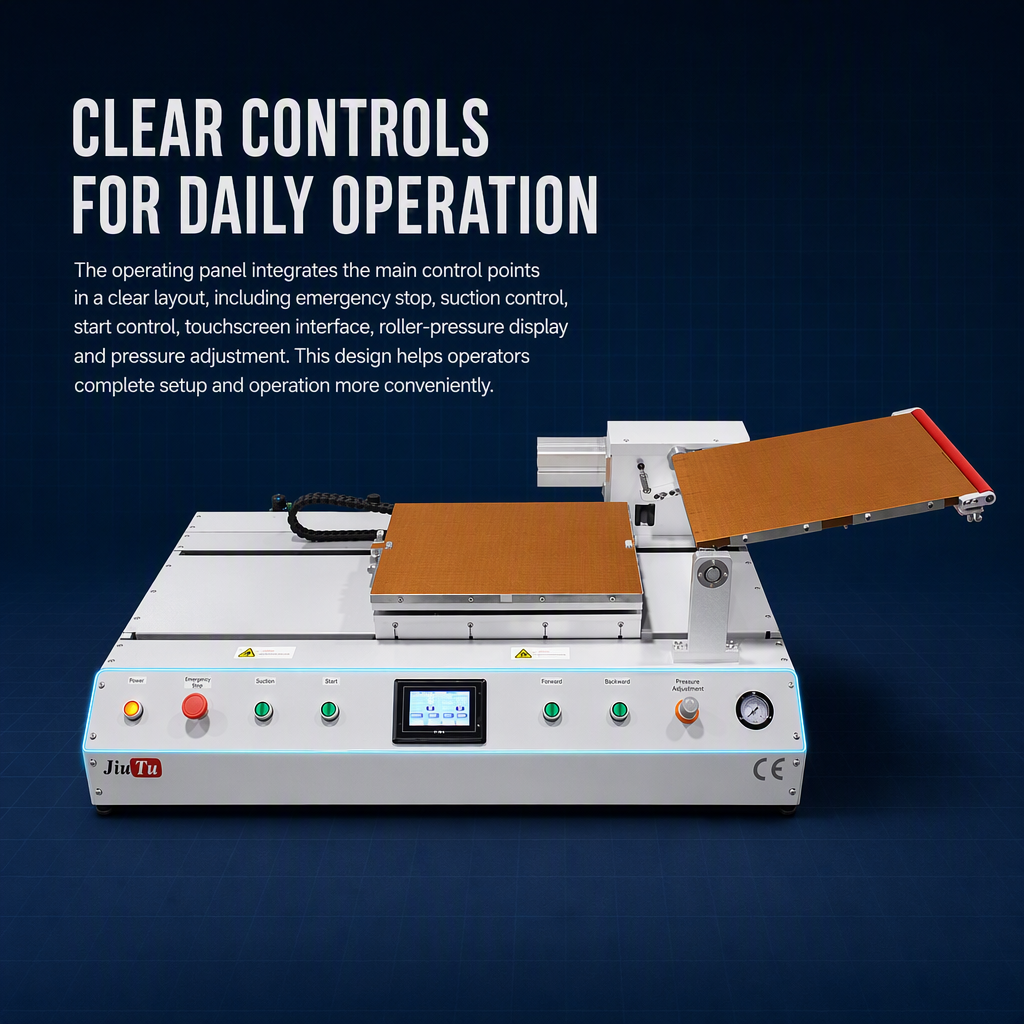

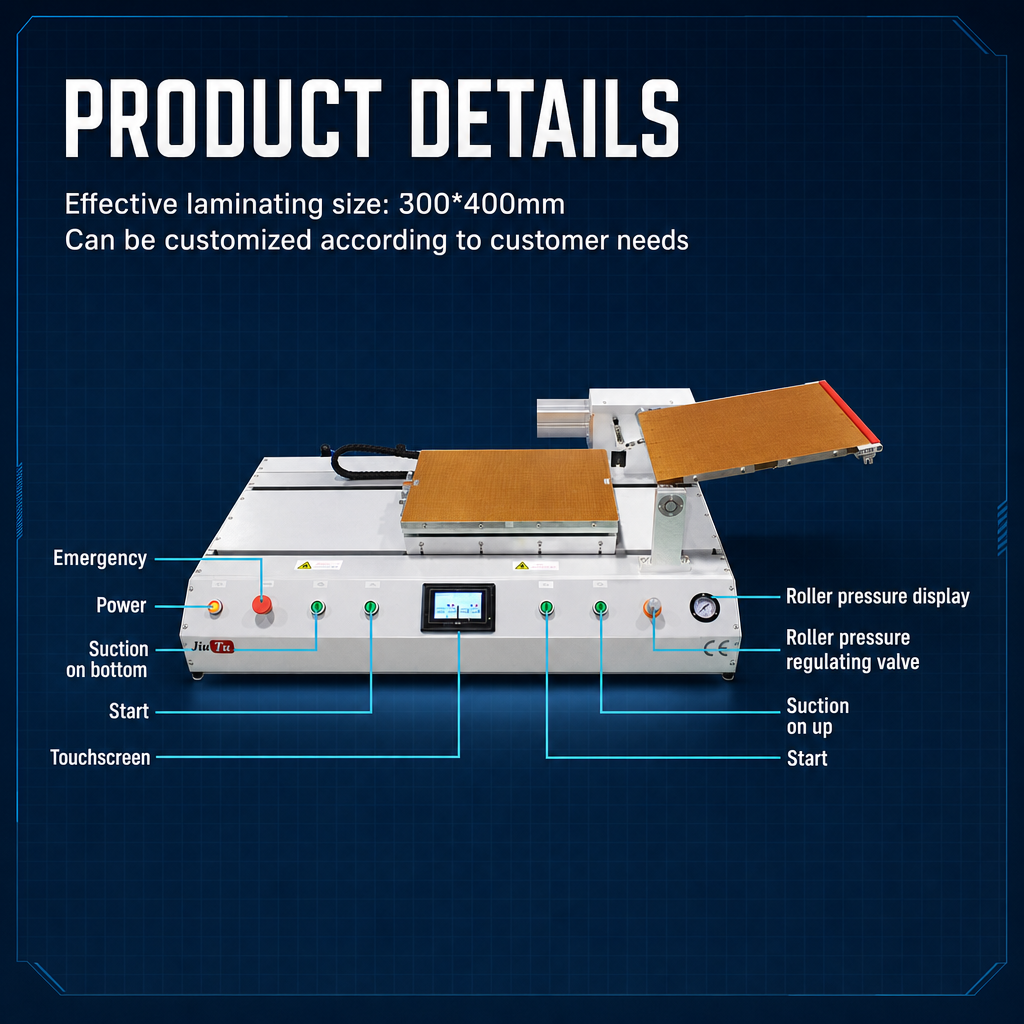

⑤ PLC + Touchscreen HMI Control All motion parameters, pressure settings, vacuum timing, and recipe data are managed through a PLC controller with colour touchscreen HMI. Parameter adjustment is performed directly on the touchscreen interface. Multiple product recipes can be stored and recalled, enabling rapid product changeover:

Existing specifications: changeover in < 15 minutes
New specifications: changeover in < 30 minutes

⑥ Aluminium Alloy and Sheet Metal Frame The machine structure uses aluminium alloy profiles and precision sheet metal construction. The fixture platform is manufactured from high-performance, non-deformable materials to maintain geometric stability and preserve accuracy over the equipment service life.

⑦ Pneumatic System with Pressure Regulation The pneumatic system features pressure regulation and throttle control for stable, low-consumption air circuit operation. Working air pressure: 5–7 kg/cm² (≈0. 5–0. 7 MPa) supplied via Ø12 quick-connect fitting.

⑧ Built-in Safety Systems

Emergency stop button with origin-return requirement after fault resolution
Short-circuit protection and electrical interlocking to prevent misoperation
Vacuum detection signal feedback
Safety signage at all AC ≥30 V, DC ≥60 V, ≥240 VA, and surface temperature >50 °C locations
Optional: ion fan (anti-static) and static grounding

Why Choose Us

Roller-press bonding for bubble-free results across the full working area The upper roller mechanism applies pressure progressively across the substrate surface, driving out air ahead of the bond line on every stroke. This is the industry-proven approach for achieving consistent, low-defect bonding on flexible and rigid optical films at production scale.
Servo-driven platform for high precision and throughput Servo motor control of the lower platform achieves ±0.05 mm control axis repeatability, maintaining accurate bonding stroke positioning across thousands of cycles. Combined with a 6-second production cycle, the machine supports the daily volume requirements of industrial panel production lines.

Multi-film compatibility from a single platform OCA adhesive, AB adhesive, polarizer, protective film, functional sheet, and conductive film applications are all handled by the same machine. Recipe-based parameter switching allows product changeover in under 15 minutes for existing specifications.

Industrial-grade structure for long service life Aluminium alloy profile frame, non-deformable fixture platform materials, and components selected from established industrial brands (HIWIN-class guides, SMC-class pneumatics, OMRON-class sensors) ensure stable performance and extended service life in continuous production environments.

Complete documentation for in-house operation The machine ships with a full operation manual (paper and electronic, including electrical wiring diagrams) and operation/changeover video, enabling factory engineering and operator teams to manage day-to-day operation and product changeover independently.
