250um 500um 800um OCA SCA Film Laminate Heater ITO Glass Laminator Machine With FFU
250um 500um 800um OCA SCA Film Laminate Heater ITO Glass Laminator Machine With FFU
Machine introduction
1.1 G+F flap laminating machine is used for mobile phone screen OCA glue, functional sheet, AB glue lamination
1.2 This equipment is suitable for the lamination process of glass panel and film with size 400*600mm
1.3 Film laminating for 1pcs, the running time is 10~20 seconds, can finish about 1500 pieces in 10 hours
1.4 Machine Size :
Length: 2100mm
Width：840mm
Height: 2065mm
Net Weight：4000KG
Air source： 4-6Kg/cm2
Powder：220V/1500W
Length: 2100mm
Width：840mm
Height: 2065mm
Net Weight：4000KG
Air source： 4-6Kg/cm2
Powder：220V/1500W

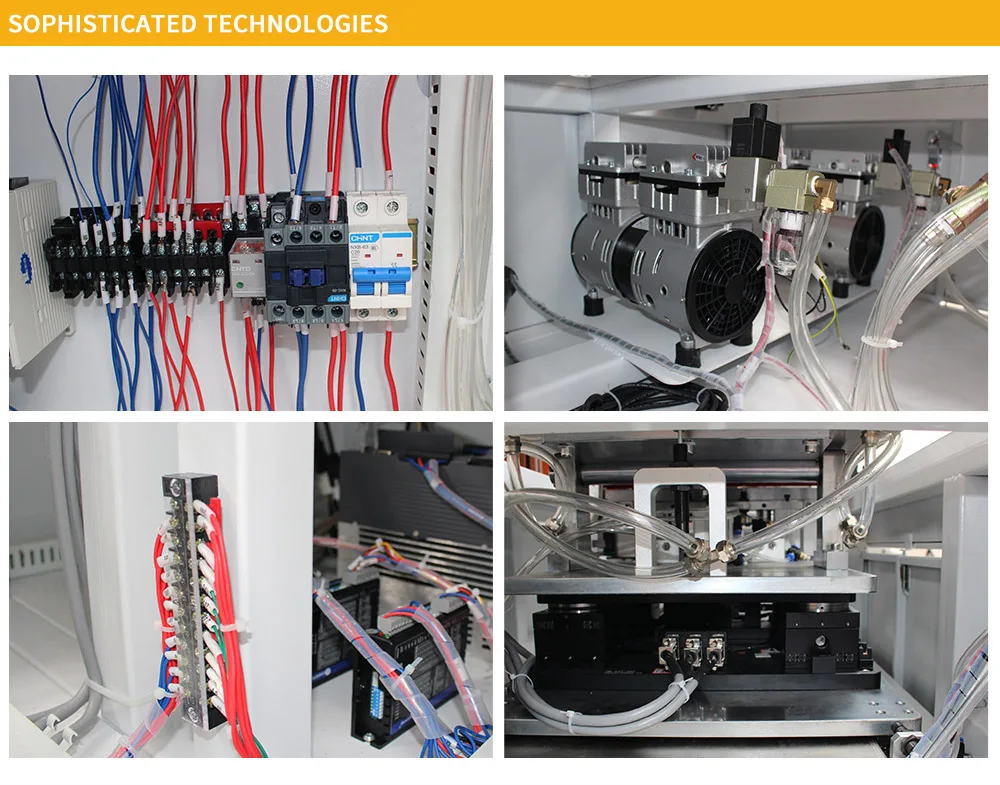

1.4 Main parts of the machine :
1. Frame part: sheet metal, aluminum alloy.
2. Operation part: man-machine interface (touch screen).
3. Control part: man-machine interface PLC.
4. Pneumatic part: cylinder, solenoid valve, vacuum pump.
5. Fitting parts: rollers, flaps.
2. Operation part: man-machine interface (touch screen).
3. Control part: man-machine interface PLC.
4. Pneumatic part: cylinder, solenoid valve, vacuum pump.
5. Fitting parts: rollers, flaps.
